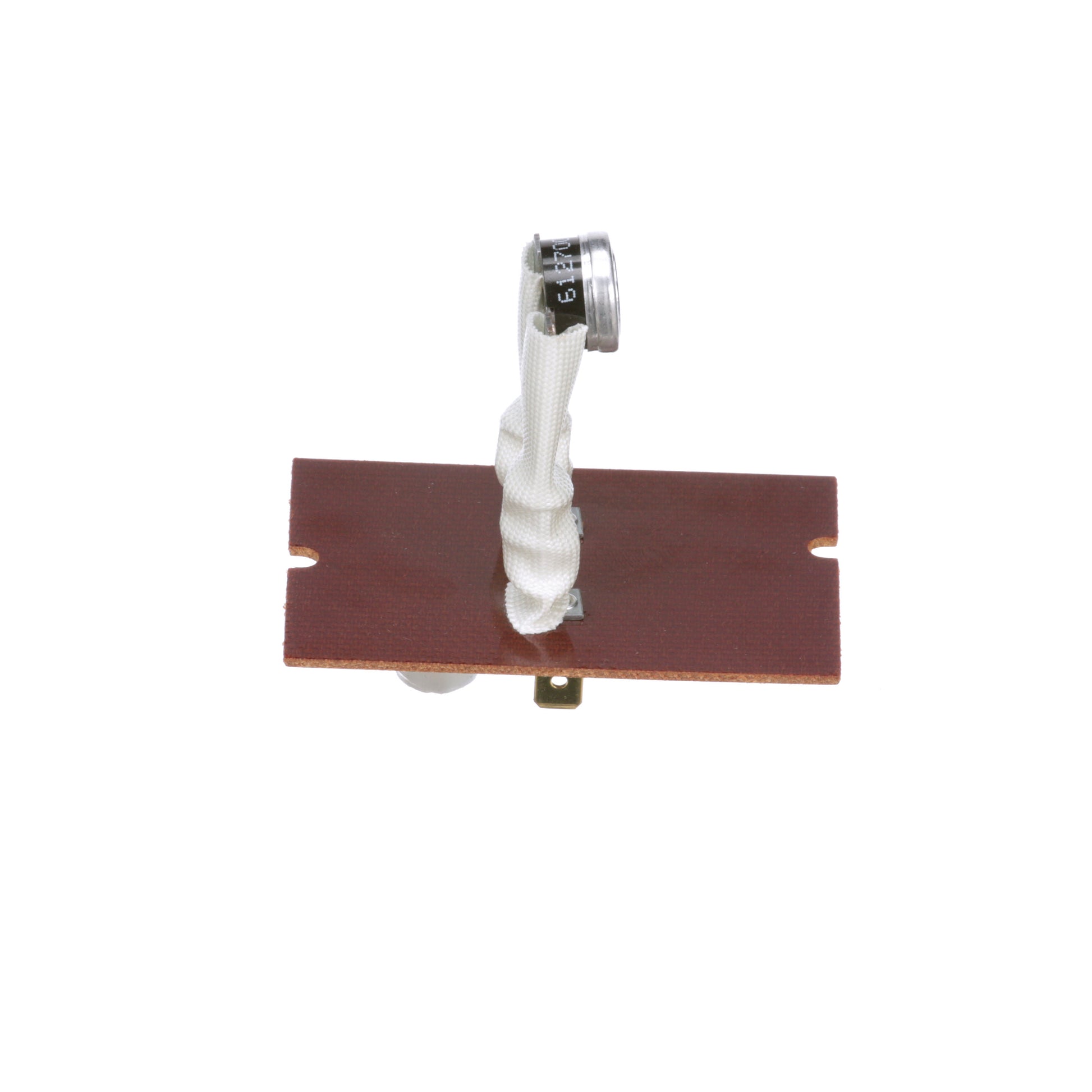

White-Rodgers 3L09-25 Heating Limit Control

White-Rodgers 3L09-25 Heating Limit Control provides reliable overheat protection for heating systems. This Therm-O-Disc based limit control ensures precise shutoff and is designed for board-mount installation, simplifying integration with existing control boards.

• Type: Limit Control; Mounting: Board; Length: 3.12 inches; Bimetal Disc Size: 1/2 inch; Temperature Rating: Open 200°F, Close 180°F; Temperature Setting On Panel: L200-20F.
• Voltage Rating: 120/240/277 VAC (Resistive); 120/240 VAC (Inductive).
• Current Rating: 15A at 120V (Resistive); 13A at 240V (Resistive); 9.3A at 277V (Resistive); 34.8A Locked Rotor at 120V; 2.9A Full Load; 13A Locked Rotor at 240V (Inductive).
• Power Rating: 125 VA Pilot Duty.
• Therm-O-Disc Type 36T; Style 612717; Temperature Setting On Panel: L200-20F.
