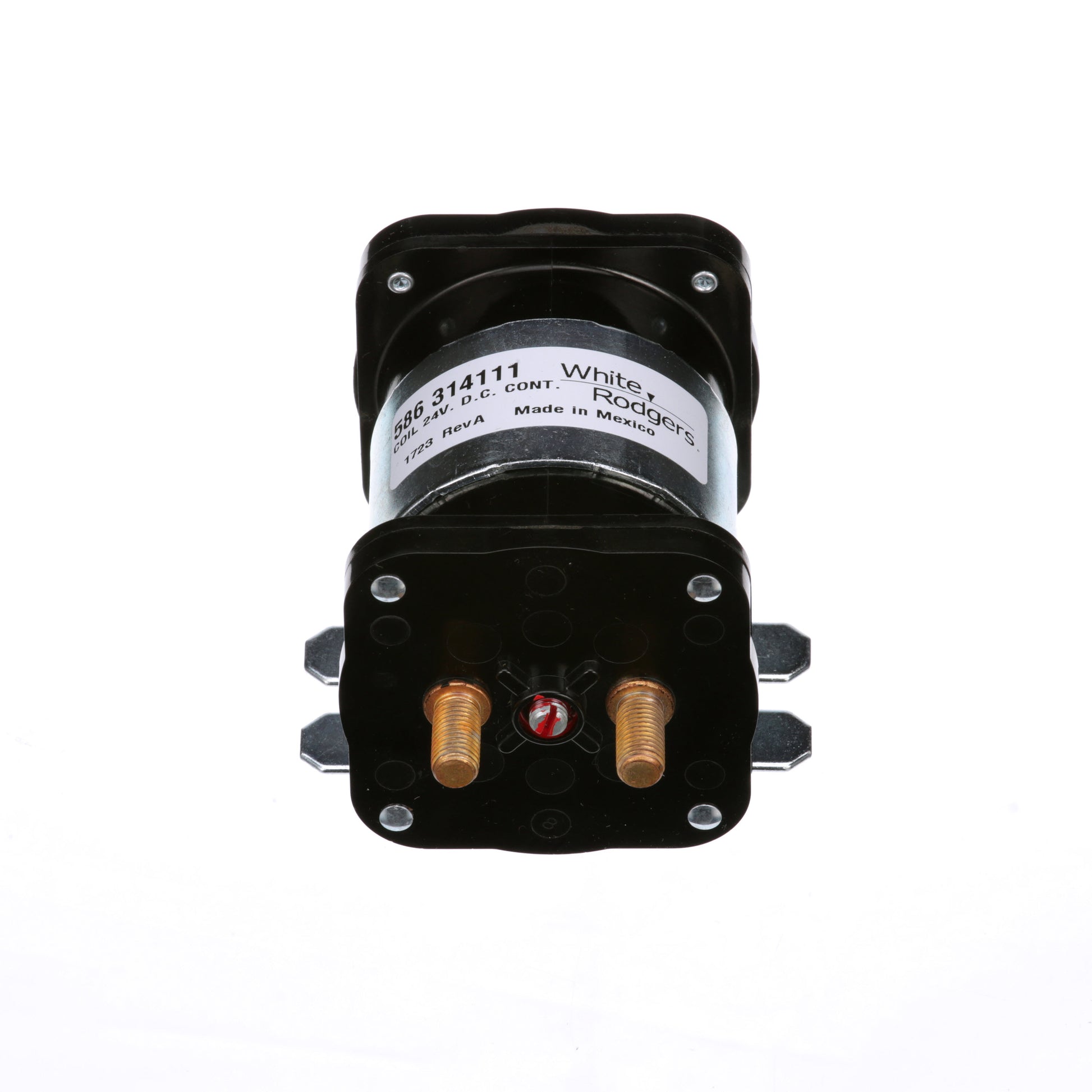

White-Rodgers 586-114111 Power Contactor

White-Rodgers 586-114111 Power Contactor is a compact SPNO device with an isolated coil designed for 24 Volt DC control. This durable power contactor delivers 200 Amp continuous current, supports high inrush up to 600 Amps, and is built for vertical mounting in control panels. Ideal for HVAC, commercial equipment, and motor control circuits.

Equipped with a 24V DC coil (84 Ω) and silver alloy contacts, it offers reliable switching for motors and equipment. The unit provides a dielectric strength of 600 V and is rated for a wide operating temperature from -40 to 149 °F, making it suitable for challenging environments. Built with robust terminals and threaded connections, it ensures secure, vibration-resistant installation.

• Type: SPNO with isolated coil
• Coil: 24V DC, 84 Ω
• Current rating: 200 A continuous; 600 A inrush
• Contact material: silver alloy
• Dielectric strength: 600 V
• Torque: 60 in-lb (contact terminals); 12–18 in-lb (coil terminals)
• Terminals: 5/16"−24 UNF-2A (contact); #10−3 UNF-2A (coil)
• Dimensions: 3.69" L x 3.13" W x 2.19" H
• Mounting: vertical plane
• Temperature rating: -40 to 149 °F
