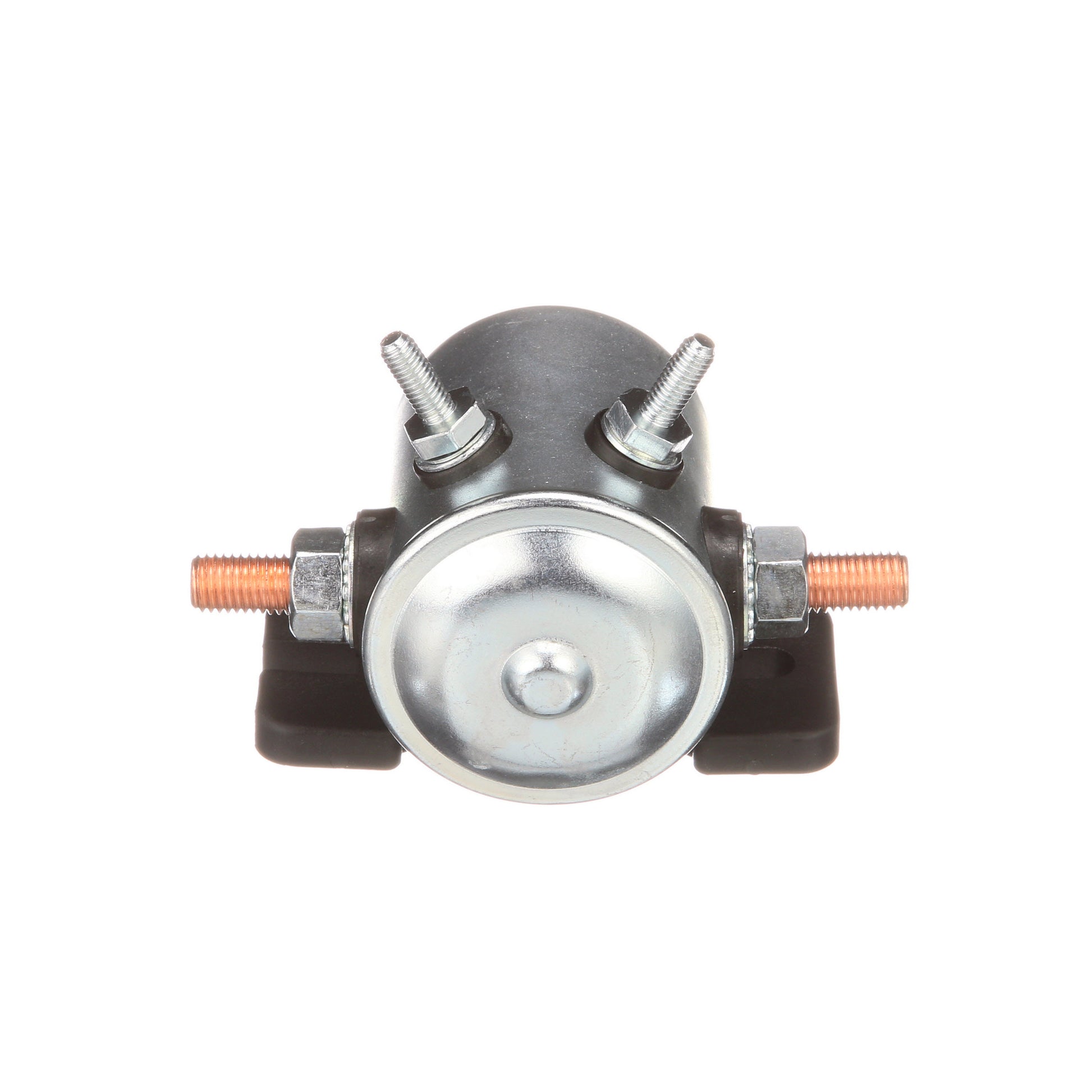

White-Rodgers 70-111224 Power Contactor

The White-Rodgers 70-111224 Power Contactor is a rugged SPNO power contactor with an isolated coil, designed for 12 Volt DC control. It delivers reliable switching for control circuits and is UL 538 approved for industrial use.

With an 80A continuous current rating and a 150A inrush, this compact unit handles demanding loads while keeping a small footprint for panels and equipment racks.

Copper contacts and 600V dielectric strength ensure durability in harsh environments, while precise torque specs protect terminals during installation.

Mounting features include a vertical plunger with cap-down orientation and standard thread sizes for easy wiring.

Key Specifications

• Type: SPNO, Isolated Coil
• Coil Voltage: 12 V DC
• Continuous Current: 80 A
• Inrush Current: 150 A
• Contact Material: Copper
• Dielectric Strength: 600 V
• Mounting: Vertical plunger with cap down
• Terminals: 5/16-24 UNF-2A (contact), 10-32 UNF-2A (coil)
• Torque: Contact 42–55 in-lb; Coil 12–18 in-lb
• Temperature Range: -40 to 122 °F
• Dimensions: 2.47" L x 3.48" W x 2.4" H
• Approval: UL 538

Designed for reliable, long-term service in electrical systems requiring a compact, UL-approved 12V DC control solution.
