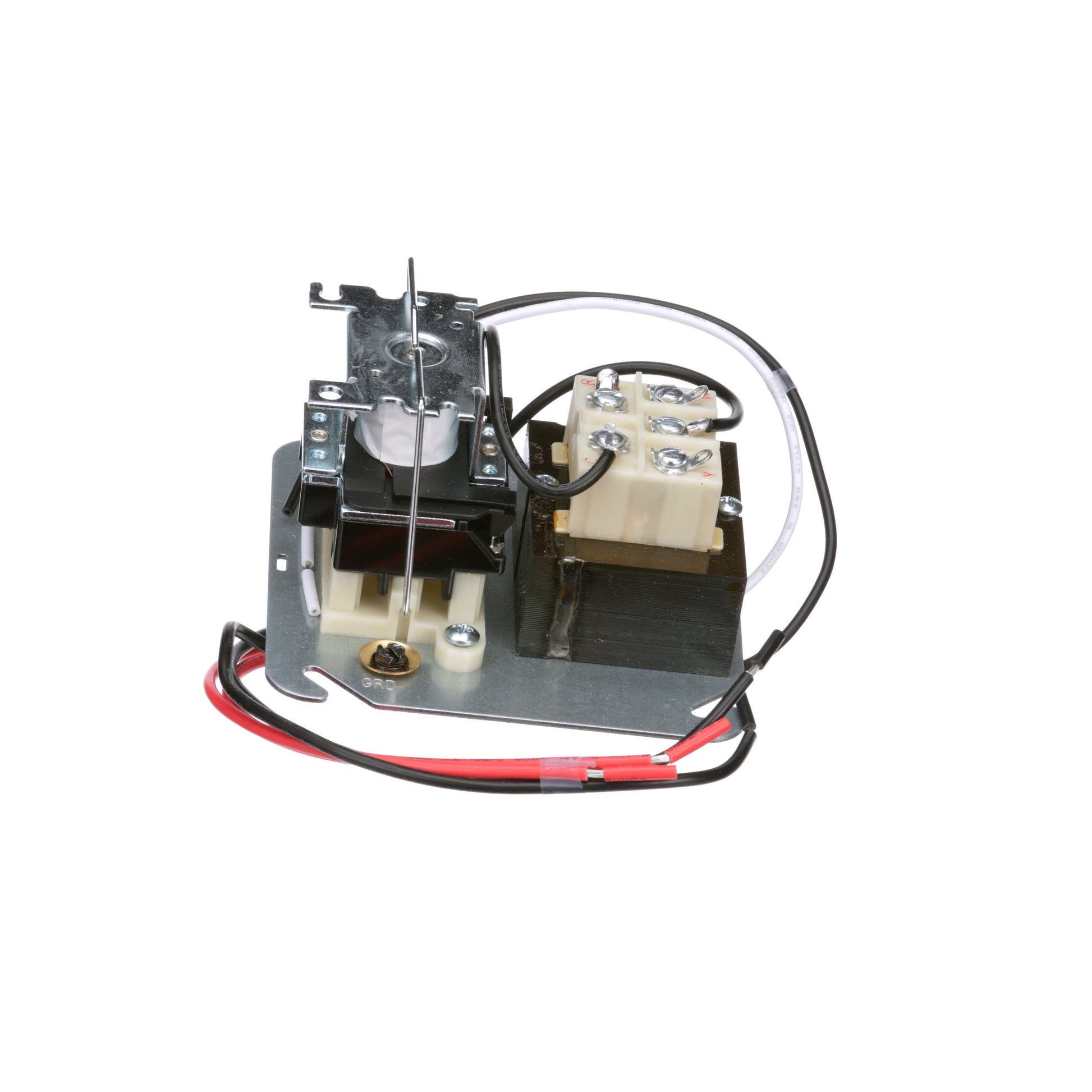

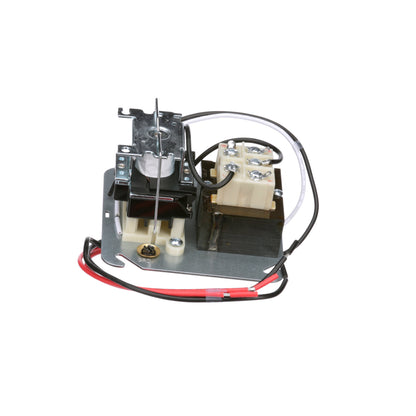

White-Rodgers 90-118E Fan Control Center

The White-Rodgers 90-118E Fan Control Center is an AC-operated, single-pole fan control ideal for HVAC applications. This plug-in control uses SPNO/SPNC contact configuration to adapt to your system, delivering reliable 24/120 VAC control at 60 Hz.

With robust current ratings for both 120 V and 240 V operation, it supports 13.8 A full-load / 82.8 A locked rotor at 120 VAC and 6.9 A full-load / 41.4 A locked rotor at 240 VAC. The unit features screw-terminal terminals for secure wiring and is designed for mounting in a 4" x 4" junction box, making it UL-approved for safe, standard-compliant installation. Its compact dimensions and 40 VA power rating provide efficient, dependable performance in compact panels.

• Type: AC Operated fan control with a single-pole configuration (SPNO/SPNC) for flexible control.
• Voltage: 24/120 VAC at 60 Hz.
• Current ratings: 13.8 A full-load / 82.8 A locked rotor at 120 V; 6.9 A full-load / 41.4 A locked rotor at 240 V.
• Contact type: Plug-In with secure screw terminals for dependable wiring.
• Mounting: Fits 4" x 4" junction box; UL approved.
• Dimensions & power: 2-1/8" W x 1-7/8" D x 2-1/4" H; 40 VA power rating.
