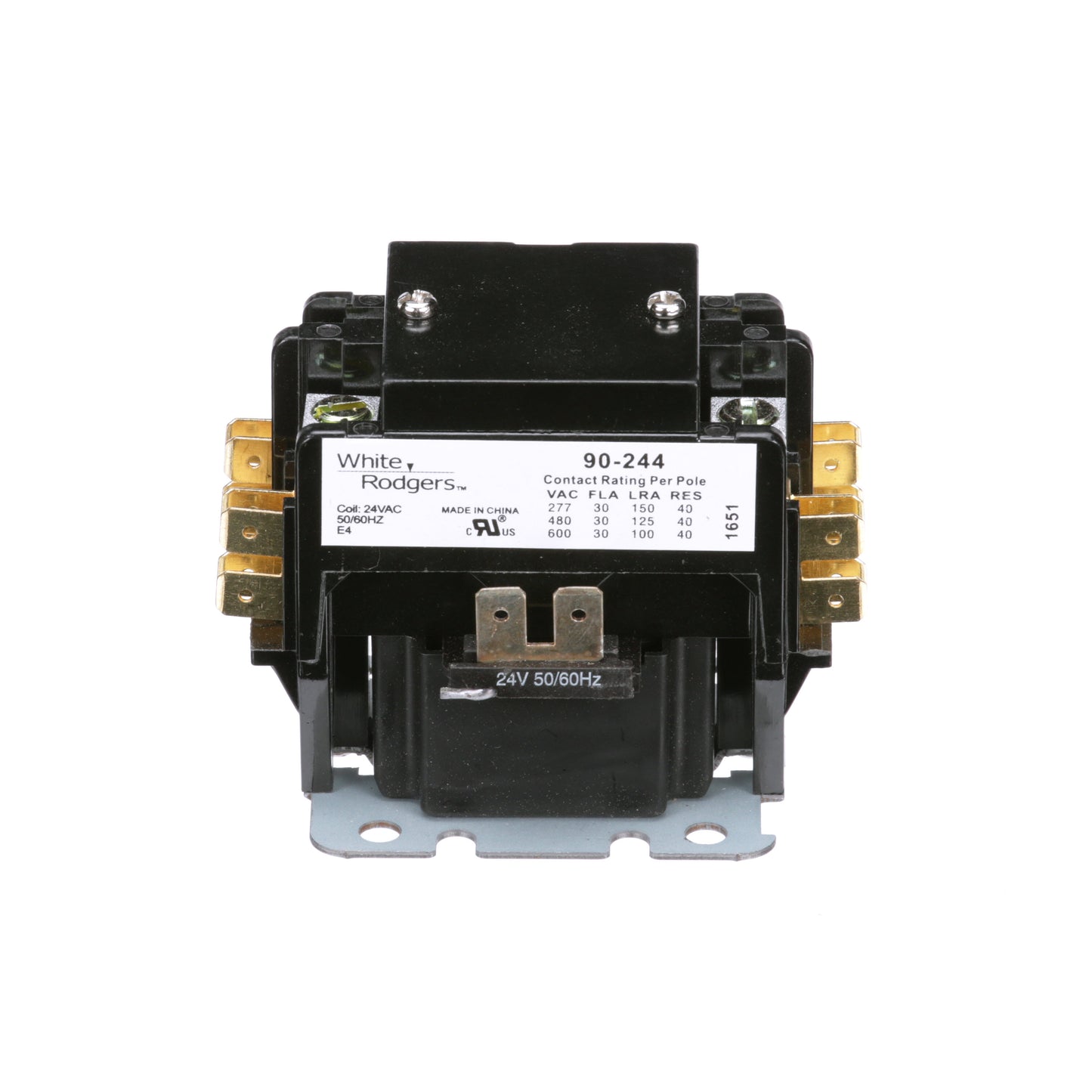

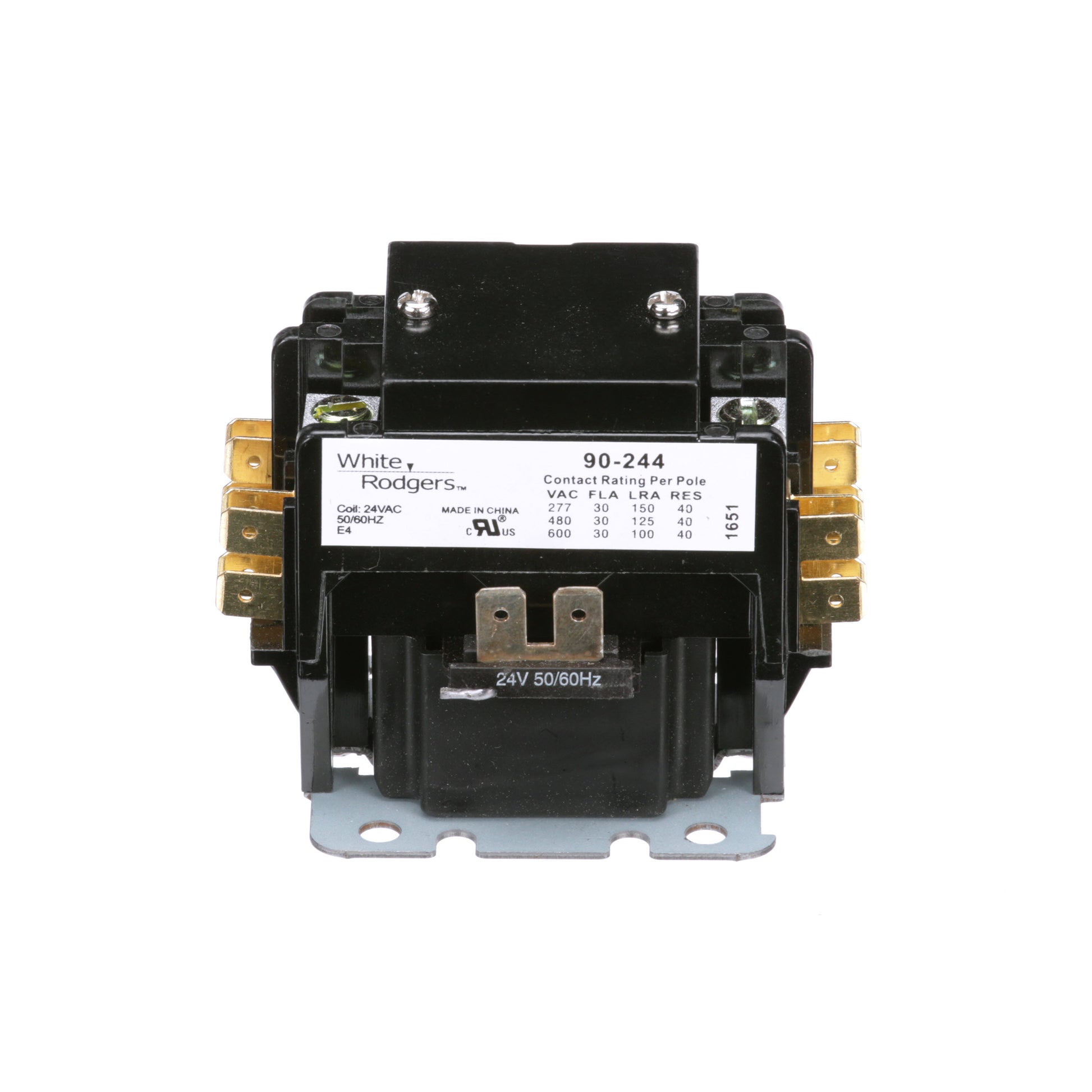

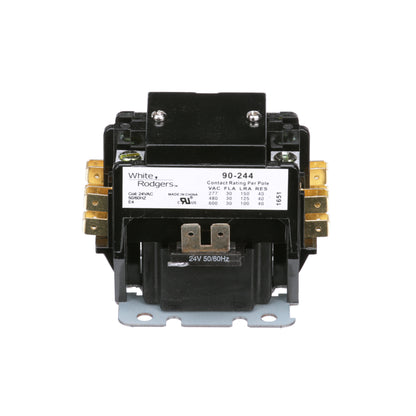

White-Rodgers 90-244 Air Conditioner Contactor

White-Rodgers 90-244 Air Conditioner Contactor is a reliable 2-pole contactor designed for air conditioning and heating equipment. This WR/RBM TYPE 122 unit uses a 24V AC coil to safely switch compressors and fan circuits, delivering continuous duty performance with UL approval.

Sized at 2" W x 2.61" D x 2.313" H, it fits standard control panels for HVAC installations. The contactor is built for ARI-standard applications and features durable insulation made from high-quality electric-grade thermosetting resin to ensure long-lasting reliability in demanding environments.

Key specifications include a 2-pole design, 24V AC coil, 30A current rating, and a 6 VA coil power rating, with termination options of Pressure Connector and Double 1/4" Quick Connect. This unit supports operating temperatures from <-40 to 150>°F, at 50/60 Hz coil frequency, and is designed for continuous duty operation in everyday HVAC use.

• 2-pole design for compressor and fan control
• 24V AC coil for standard thermostat circuits
• 30A current rating with 6 VA coil power
• Termination: pressure connector and double 1/4" quick connect
• UL approved; ARI-standard compliance
• Thermosetting resin insulation for reliability
• Compact dimensions: 2" W × 2.61" D × 2.313" H
• Temperature range: -40 to 150 °F; 50/60 Hz
• Continuous duty for steady performance
