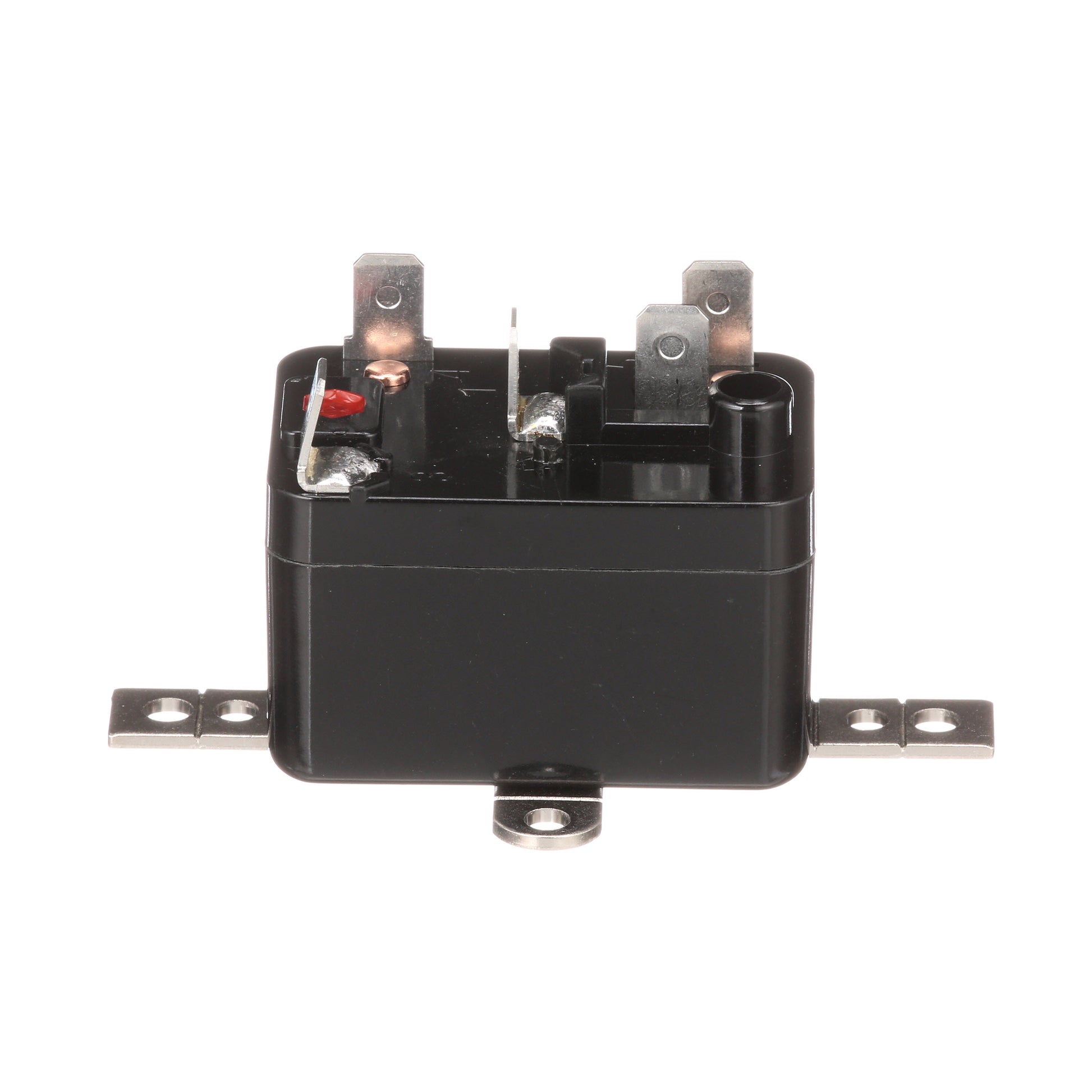

White-Rodgers 90-290Q Enclosed Relay

The White-Rodgers 90-290Q Enclosed Relay is a compact, UL and CSA approved AC operated relay designed for dependable control in HVAC, fans, solenoids, and general purpose switching. With a SPNO contact configuration and a 24 VAC coil, this enclosed unit delivers reliable operation in tight spaces and demanding environments.

Key specifications include a 125/250 VAC contact rating, 8 A inductive, 16 A resistive, 50/60 Hz coil, and a coil current of about 125 mA with a 3 VA coil power rating and 4 VA inrush. The rugged enclosure measures 2-3/8" W x 1-1/2" D x 1-5/8" H and uses 1/4" quick-connect terminals for easy wiring.

• Configuration: SPNO
• Ratings: 125/250 VAC, 8 A inductive, 16 A resistive
• Coil: 24 VAC, 50/60 Hz, ~125 mA
• Enclosure: Enclosed, compact, rugged
• Terminals: 1/4" quick-connect
• Temperature range: -40 to 150°F
• Approvals: UL, CSA
• Applications: Single/Two-speed fan motor, solenoid, relay, resistive loads, heating and cooling

Whether upgrading an HVAC control panel or designing a compact control solution, the White-Rodgers 90-290Q Enclosed Relay offers dependable switching, environmental tolerance, and simple wiring to streamline installation and maintenance.
