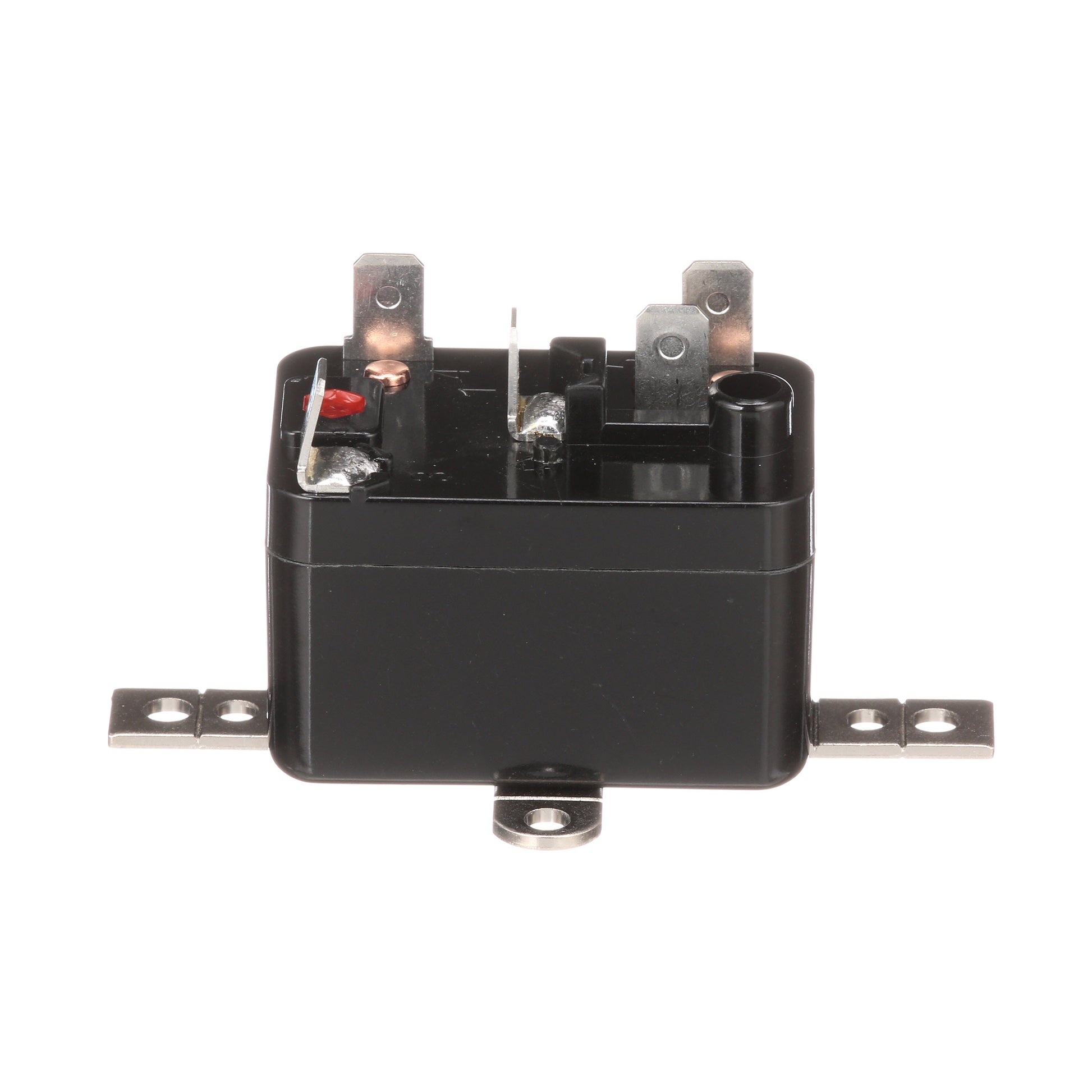

White-Rodgers 90-291Q Enclosed Relay

White-Rodgers 90-291Q Enclosed Relay is an enclosed, AC-operated relay (WR/RBM Type 84) built for dependable control of fans, solenoids, and other general loads. The rugged housing protects internal contacts in demanding HVAC and industrial environments, delivering reliable switching performance across temperature extremes.

Featuring SPNO contacts and a 125/250 VAC contact rating, it handles up to 8 A inductive or 16 A resistive loads. The coil operates at 120 VAC (50/60 Hz) with a low coil current of 25 mA and a coil power of 3 VA, plus 4 VA inrush. Compact at 2-3/8 in W x 1-1/2 in D x 1-5/8 in H, it uses 1/4 inch quick-connect terminals for easy wiring. UL and CSA approvals ensure safety and compatibility for commercial and residential applications, while a -40 to 150°F temperature range supports both heating and cooling systems.

Ideal for single or two-speed fan motors, solenoids, relays, resistive loads, and general purpose switching in HVAC and industrial control projects.

• Enclosed AC-operated relay (WR/RBM Type 84).
• SPNO contact configuration for straightforward switching.
• 125/250 VAC contact rating for versatile loads.
• Coil: 120 VAC at 50/60 Hz; 25 mA, 3 VA coil power; 4 VA inrush.
• 1/4" quick-connect terminals for easy wiring.
• Compact dimensions: 2-3/8"W x 1-1/2"D x 1-5/8"H.
• UL and CSA approved for safety and reliability.
• Operating range: -40 to 150°F.
