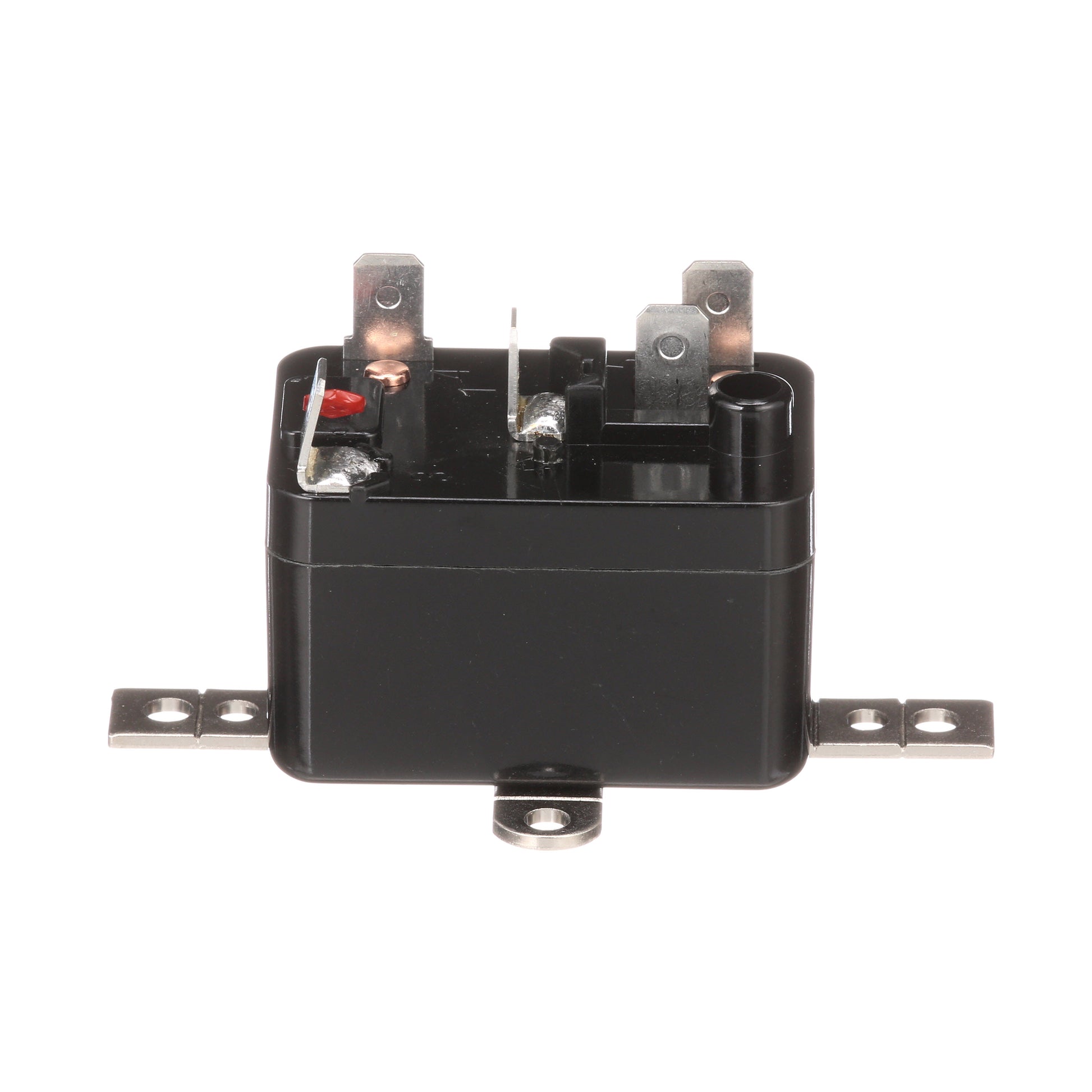

White-Rodgers 90-293Q Enclosed Relay

The White-Rodgers 90-293Q Enclosed Relay is a compact, AC-operated relay designed for reliable control in heating, cooling, and general purpose switching. Housed in WR/RBM Type 84 enclosure, this unit delivers rugged performance with UL and CSA approvals for safe, long-term operation.

Equipped with SPDT contacts rated for 125/250 VAC, it supports 8 A inductive and 16 A resistive loads. The 24 VAC coil operates at 50/60 Hz, drawing 125 mA (3 VA) with an inrush of 4 VA, and terminates on 1/4 inch quick-connect terminals for fast wiring.

Features

• WR/RBM Type 84 enclosed relay for rugged service
• SPDT contact configuration with 125/250 VAC rating
• 8 A inductive / 16 A resistive continuous current
• 24 VAC coil at 50/60 Hz; 125 mA (3 VA); 4 VA inrush
• 1/4" quick-connect terminals for fast wiring
• UL and CSA approvals for safety and reliability
• Compact dimensions: 2-3/8" W × 1-1/2" D × 1-5/8" H
• Operating temperature range: -40 to 150°F
• Applications: single/two-speed fan motors, solenoids, relays, resistive/general purpose loads, heating and cooling
