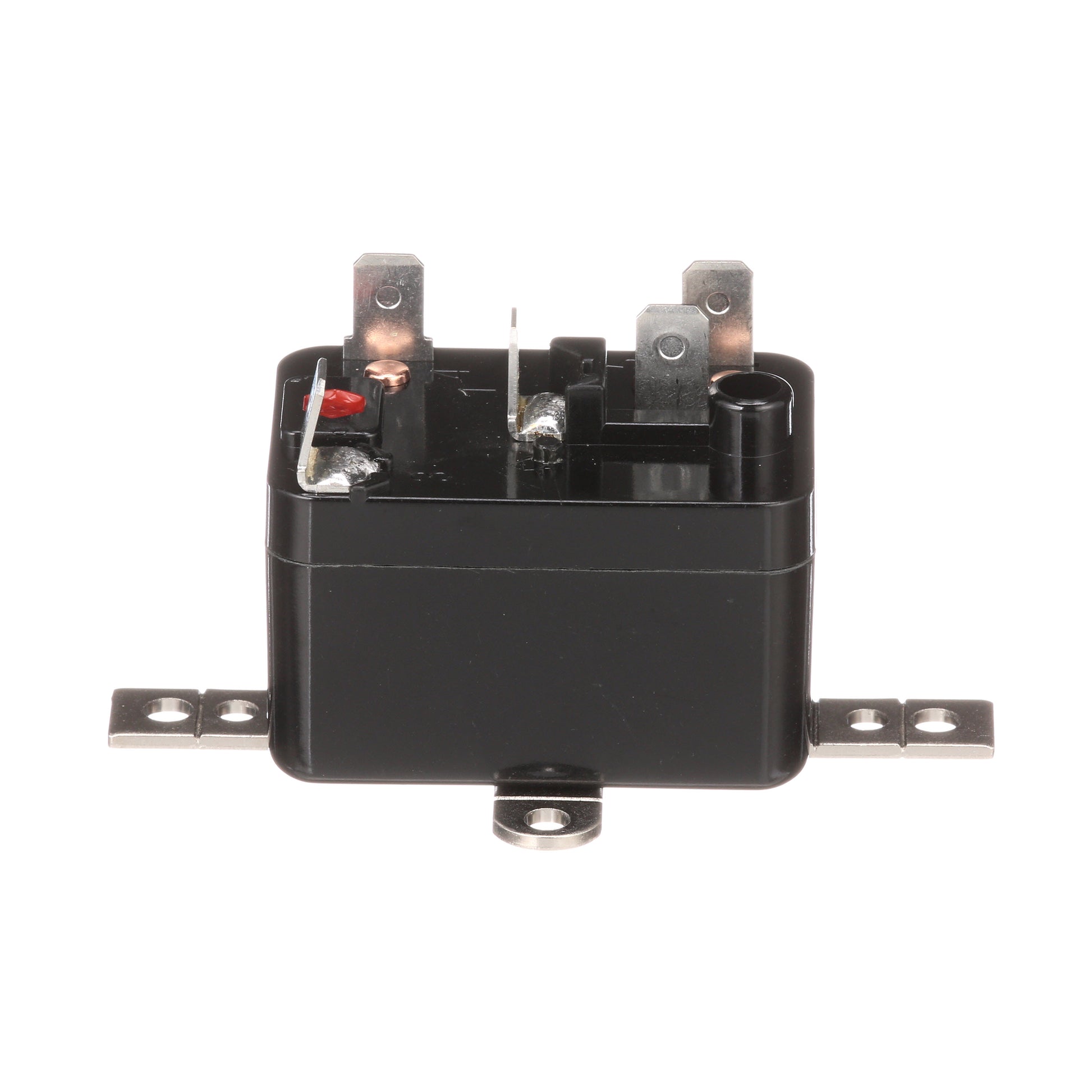

White-Rodgers 90-294Q Enclosed Relay

The White-Rodgers 90-294Q Enclosed Relay is an AC-operated SPDT enclosed relay designed for reliable control in HVAC, fan motors, solenoids, and general purpose switching. As part of the WR/RBM Type 84 family, it handles 125/250 VAC on the contacts and supports 8 A inductive or 16 A resistive loads, making it suitable for heating and cooling applications. The coil operates at 120 VAC with a 50/60 Hz input, drawing only 12.5 mA while delivering 3 VA of coil power and 4 VA inrush.

With UL and CSA approvals, this enclosed relay features durable quick-connect terminals for easy wiring and a compact footprint that fits tight control panels. It’s built to endure climate extremes with a temperature rating from -40 to 150 F and reliable operation across a wide range of switching tasks.

• SPDT contact configuration for versatile switching
• 125/250 VAC contact voltage; 8 A inductive, 16 A resistive
• Coil: 120 VAC @ 50/60 Hz; 12.5 mA coil current; 3 VA coil, 4 VA inrush
• WR/RBM Type 84 enclosed relay; UL and CSA approved
• Terminals: 1/4 inch quick-connect
• Overall dimensions: 2-3/8 in W x 1-1/2 in D x 1-5/8 in H
• Temperature range: -40 to 150 F
• Applications: single/two-speed fan motors, solenoids, resistive loads, heating and cooling
