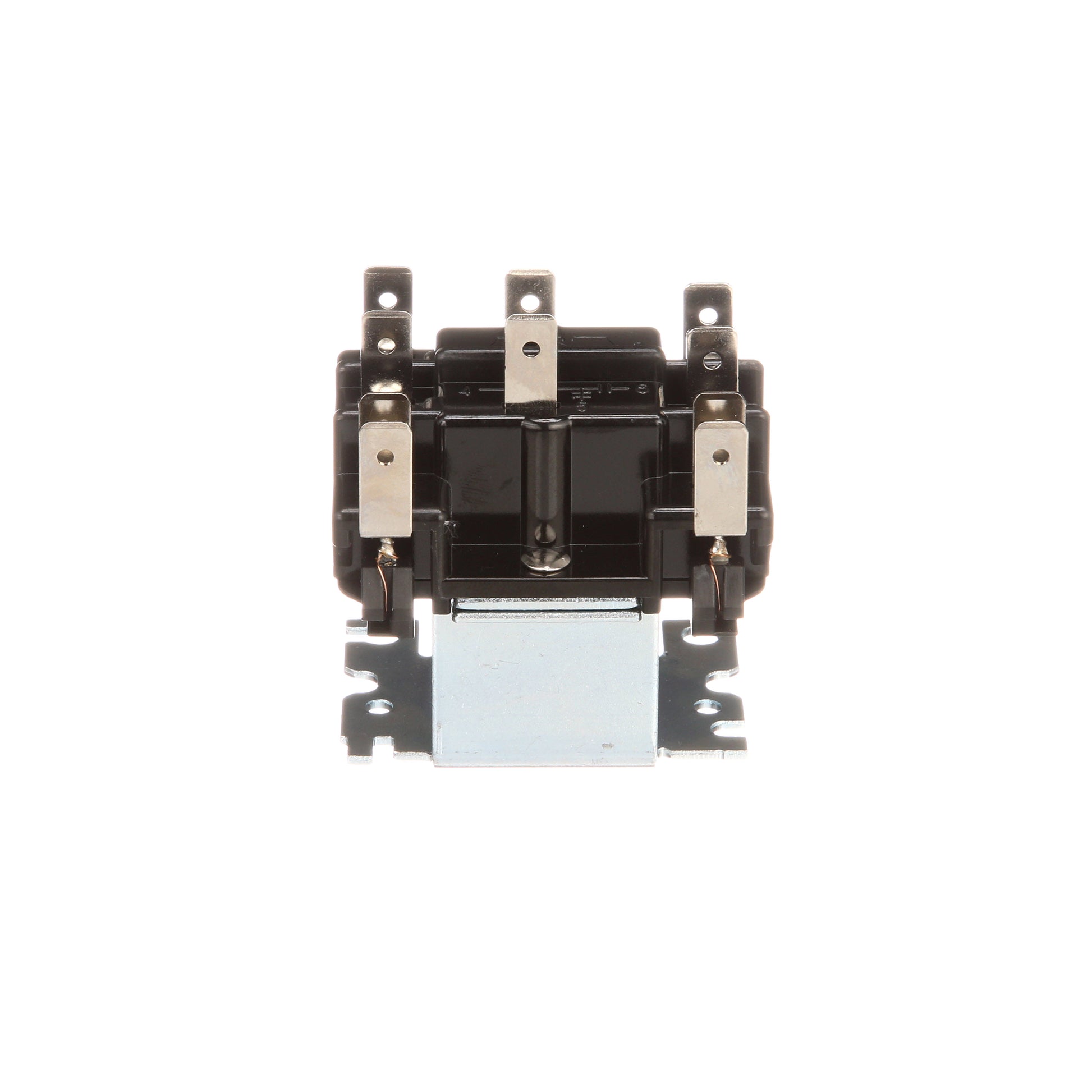

White-Rodgers 90-340 Switching Relay

The White-Rodgers 90-340 Switching Relay is an AC-operated DPDT relay designed for reliable control in fan control centers, vending machines, appliances, heating and air conditioning, and general purpose switching. With a 125/250/277 VAC contact rating and a 24 VAC coil, this unit delivers precise, durable performance for demanding environments.

Key features and specifications:

• Configuration: DPDT contact configuration for versatile switching
• Electrical ratings: 125/250/277 VAC contact voltage; 15 A at 277 VAC (resistive)
• Coil: 24 VAC at 50/60 Hz; coil current 334 mA; coil power 9.5 VA; inrush 22 VA
• Contacts & Terminals: 1/4 inch quick-connect terminals
• Physical dimensions: 2.109" W × 2.375" D × 1.859" H
• Environmental: -40 to 130°F temperature range
• Approvals: UL and CSA listed
• Ideal for: Fan control centers, vending machines, appliances, heating and air conditioning, general purpose switching
