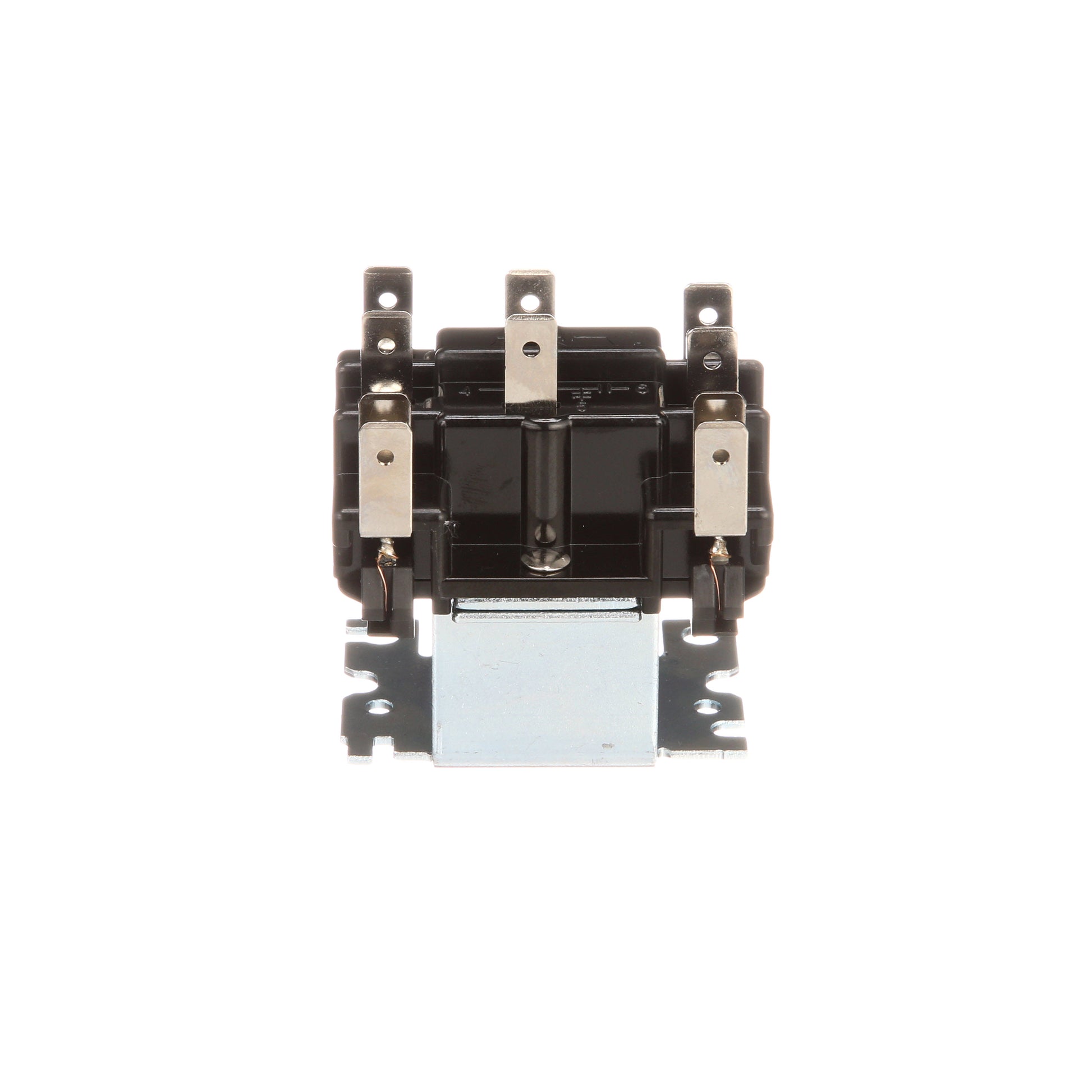

White-Rodgers 90-341 Switching Relay

White-Rodgers 90-341 Switching Relay is an AC-operated relay designed for dependable control in HVAC, appliances, vending machines, and general switching tasks. The WR/RBM Type 91 device uses a DPDT contact configuration for versatile circuit crossing and isolated control.

With contact ratings of 125/250/277 VAC and 15 A at 277 VAC (resistive), it handles demanding loads. The coil operates at 115/120 VAC (50/60 Hz) with a coil current of 66 mA, coil power of 9.5 VA, and an inrush rating of 22 VA. It uses 1/4 inch quick-connect terminals for easy wiring, and it carries UL and CSA approvals for safety and reliability. The housing dimensions are 2.109 in W x 2.375 in D x 1.859 in H, and it tolerates temperatures from -40 to 130 F.

Ideal for fan control centers, vending machines, appliances, heating and air conditioning, and general purpose switching.

• DPDT contact configuration for precise switching
• 125/250/277 VAC contact voltage with 15 A at 277 VAC (resistive)
• 115/120 VAC coil voltage at 50/60 Hz; 66 mA coil current; 9.5 VA coil power; 22 VA inrush
• 1/4 inch quick-connect terminals for fast wiring
• UL and CSA approved for safety and reliability
• Compact footprint: 2.109" W x 2.375" D x 1.859" H
• Operating temperature: -40 to 130 F
