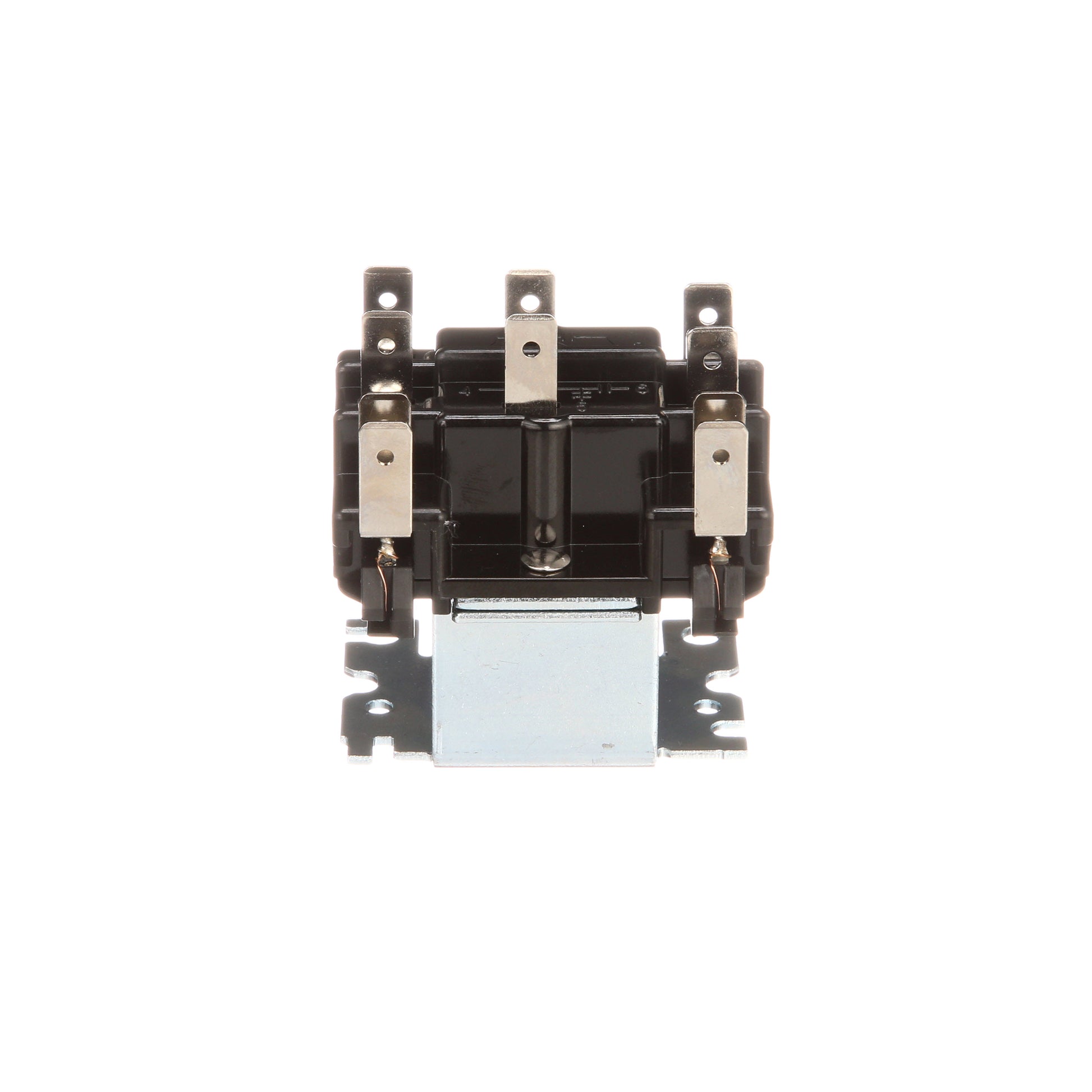

White-Rodgers 90-342 Switching Relay

The White-Rodgers 90-342 Switching Relay is a durable, AC-operated relay designed for fan control centers, vending machines, appliances, heating and air conditioning, and general purpose switching. With a DPDT contact configuration, this unit provides reliable, flexible control in a compact form. It features a contact voltage rating of 125/250/277 VAC and a resistive current rating of 15 A at 277 VAC, making it suitable for a wide range of loads. The coil is rated for 208/240 VAC at 50/60 Hz, delivering steady operation with a low coil current of 38 mA and a coil power of 9.5 VA; inrush is 22 VA. Quick-connect terminals (1/4 inch) ensure easy installation, while UL and CSA approvals confirm safety and compliance. Designed for harsh environments, it tolerates temperatures from -40 to 130 degrees Fahrenheit and fits compact spaces with dimensions 2.109 in W x 2.375 in D x 1.859 in H. Ideal for control panels, HVAC, and other general switching tasks, the 90-342 delivers dependable performance when you need a proven switching relay.

• DPDT contact configuration for versatile switching
• Contact voltage: 125/250/277 VAC; 15 A resistive
• Coil voltage: 208/240 VAC at 50/60 Hz
• Coil current: 38 mA; coil power: 9.5 VA; inrush: 22 VA
• 1/4 inch quick-connect terminals for fast wiring
• UL and CSA approved for safety and compliance
