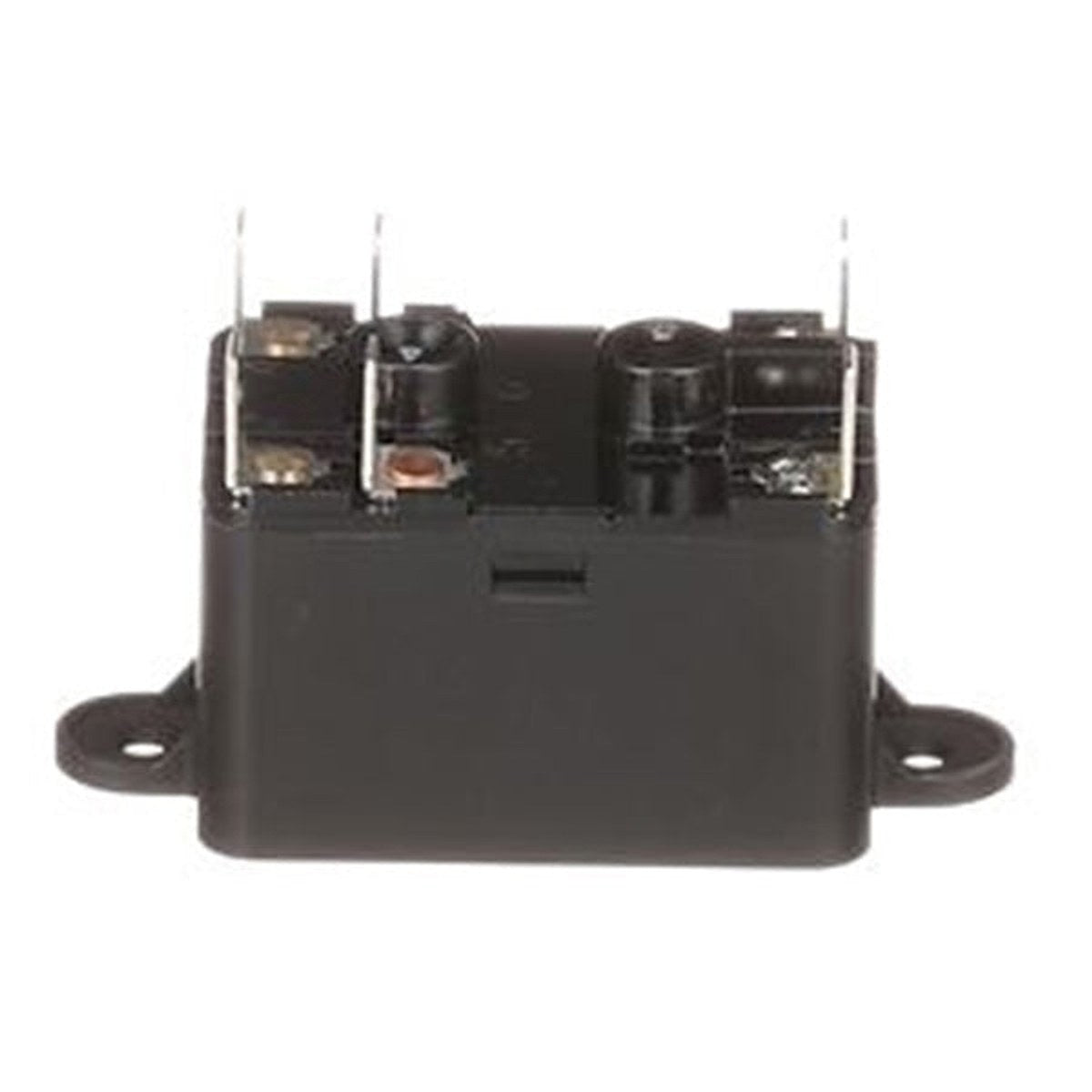

White-Rodgers 90-360 Enclosed Relay

The White-Rodgers 90-360 Enclosed Relay is a compact, heavy-duty control device designed for heating and cooling applications. This AC operated WR/RBM type 184 unit features SPNO contact configuration for dependable switching in tight control panels.

Designed for versatility, this enclosed relay accepts 24 Volt AC at 50/60 Hz on the coil and delivers solid performance across 125/250/277 Volt AC line voltages. It’s UL and CSA approved for safety and reliability, with a low coil current draw of 125 mA and a coil power rating of 3 VA (inrush 4 VA).

• Coil voltage: 24 VAC
• Contact arrangement: SPNO
• Line voltages: 125/250/277 VAC
• Current rating: 12A at 125V AC (inductive), 8A at 250V AC (inductive), 18A at 277V AC (resistive)
• Terminal type: 1/4 inch quick-connect
• Enclosure: Enclosed, heavy-duty housing
• Dimensions: 1.265"W x 1.265"D x 1.842"H

With its robust construction and compact footprint, the White-Rodgers 90-360 Enclosed Relay provides reliable general switching for heating and cooling systems in demanding environments.
