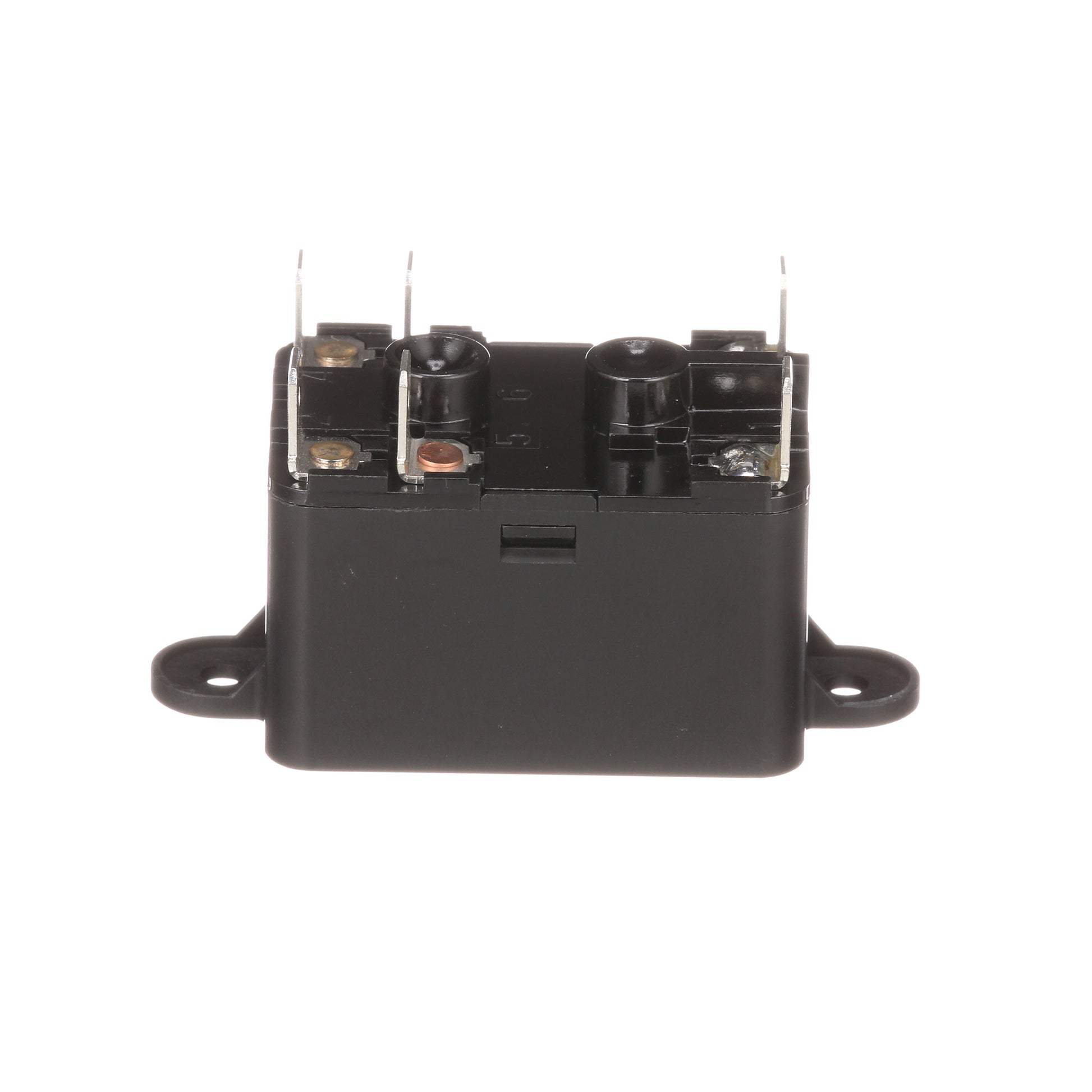

White-Rodgers 90-362 Enclosed Relay

White-Rodgers 90-362 Enclosed Relay is a compact, heavy-duty, AC-operated relay designed for reliable control in HVAC and general switching applications. This WR/RBM Type 184 enclosed relay features SPNO contacts and rugged construction to withstand commercial environments.

Key specifications and capabilities include a 125/250/277 VAC contact voltage rating, with 12 A at 125 V AC (inductive), 8 A at 250 V AC (inductive), and 18 A at 277 V AC (resistive). The coil is 120 V AC at 50/60 Hz with a 25 mA current draw (3 VA) and an inrush rating of 4 VA, delivering efficient operation with low heat.

Designed for versatile use across heating and cooling and general switching, this enclosure provides protection in tight spaces and tough conditions.

• Contact configuration: SPNO
• Contact ratings: 125/250/277 VAC; up to 12 A (125V inductive), 8 A (250V inductive), 18 A (277V resistive)
• Coil specs: 120 VAC, 50/60 Hz; 25 mA coil current; 3 VA coil power; 4 VA inrush
• Enclosure and approvals: Heavy-duty enclosed relay; UL and CSA approved
• Physical details: 1.265" W x 1.265" D x 1.842" H; 1/4" quick-connect terminals
• Operating range: -40°F to 150°F
