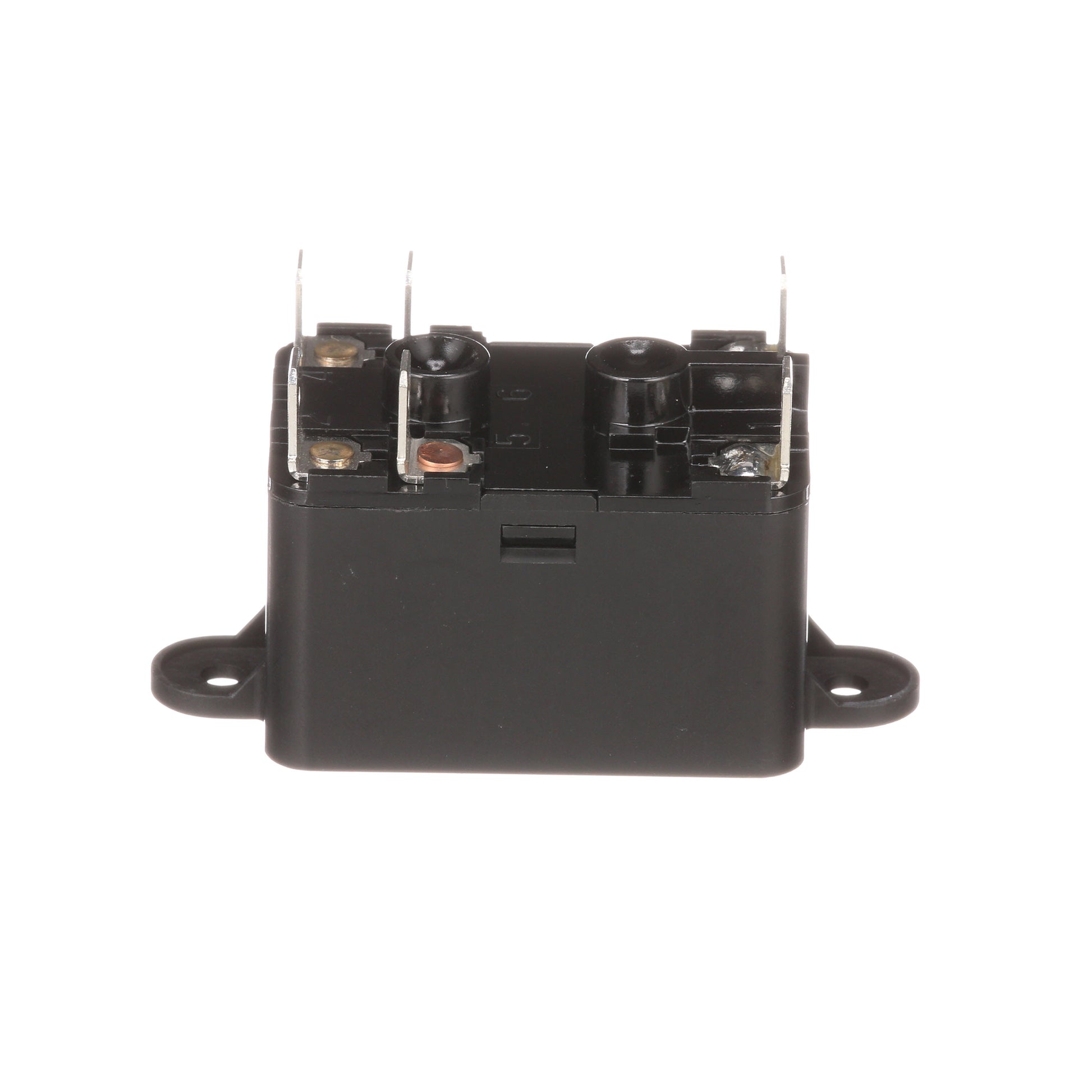

White-Rodgers 90-370 Enclosed Relay

White-Rodgers 90-370 Enclosed Relay is a rugged, AC-operated enclosed relay designed for heating and cooling and general switching. This WR/RBM Type 184 heavy-duty unit features SPDT contacts and supports 125/250/277 VAC loads with a 24 VAC coil.

Designed for compact control panels, it offers a tough enclosure and convenient 1/4 inch Quick Connect terminals for quick wiring and reliable connections.

• Type: Enclosed Relay, WR/RBM Type 184, Heavy Duty
• Contact Configuration: SPDT for versatile switching of loads and control circuits
• Load Ratings: 12A @ 125V AC (inductive); 8A @ 250V AC (inductive); 18A @ 277V AC (resistive)
• Coil Specifications: 24V AC, 50/60 Hz; 125 mA coil current; 3 VA coil power; 4 VA inrush
• Terminals: 1/4" Quick Connect for fast, secure wiring
• Approvals: UL listed, CSA certified
• Dimensions: 1.265"W x 1.265"D x 1.842"H
• Temperature Range: -40 to 150°F
• Applications: Heating and cooling control; general switching in HVAC and equipment panels
