White-Rodgers 90-380 Enclosed Relay
White-Rodgers 90-380 Enclosed Relay
18 in stock
Couldn't load pickup availability
SKU:14460
View full details
![White-Rodgers 90-380 Enclosed Relay — New England Supply House spec card [NESH-SPEC-CARD-V2]](http://newenglandsupplyhouse.com/cdn/shop/files/spec-9031620722910.png?v=1782832840&width=1445)

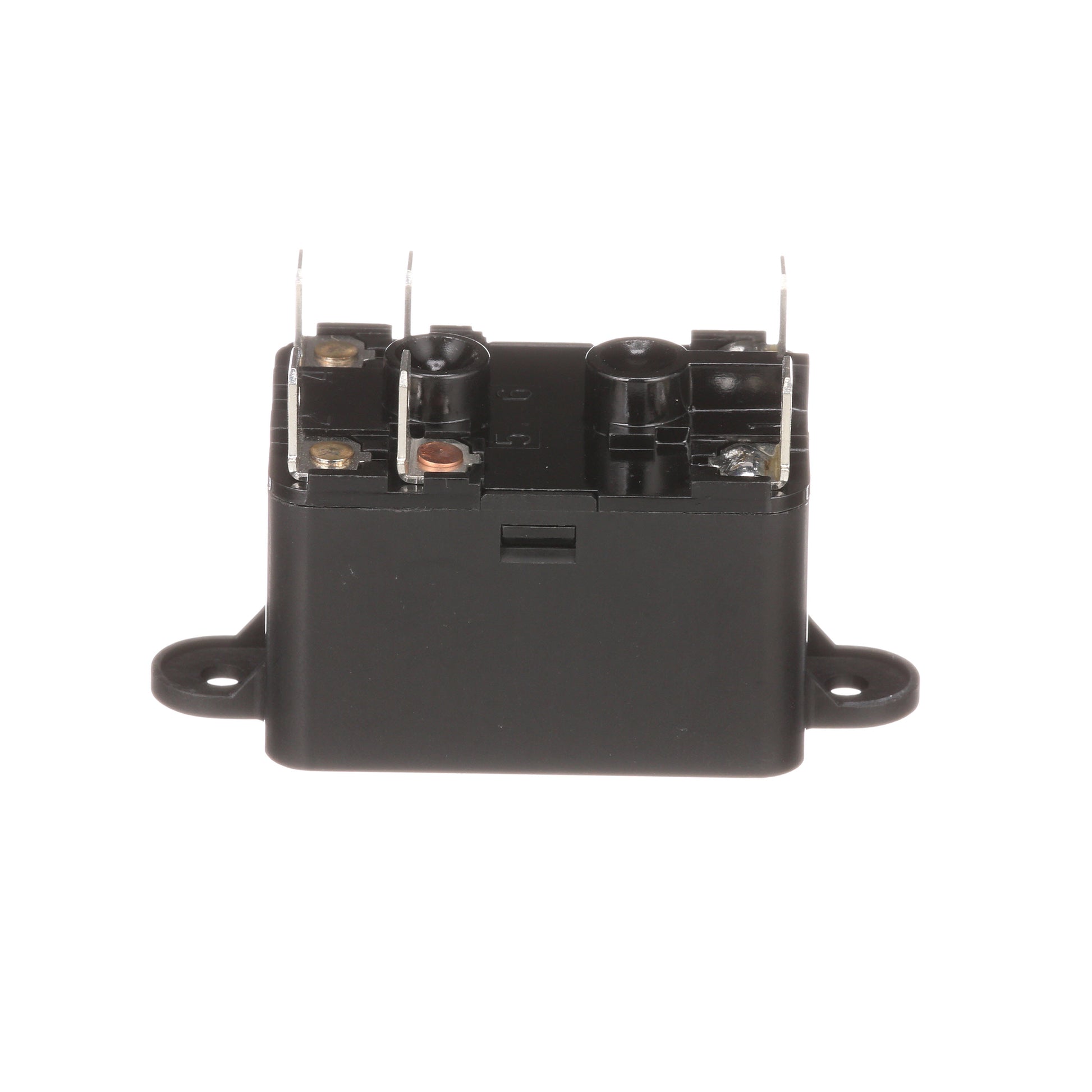

The White-Rodgers 90-380 Enclosed Relay is a rugged, AC-operated device designed for heating, cooling, and general switching.
As a WR/RBM Type 184, heavy-duty enclosed relay, it offers SPNO/SPNC contact configurations and reliable UL/CSA approvals.
This compact unit delivers versatile voltage handling with 125/250/277 VAC contact ratings and a 24 VAC coil for easy integration into HVAC and building control systems.
Coil current is 125 mA with a 3 VA coil power and 4 VA inrush, ensuring efficient operation without excessive power draw.
Designed for harsh environments, its 1/4-inch quick-connect terminals, 1.265" x 1.265" x 1.842" footprint, and -40 to 150°F temperature range support reliable installation in heating, cooling, and general switching tasks.
- SPNO/SPNC contact configuration for versatile control
- UL and CSA approved for safe installation
- 125/250/277 VAC contact voltage and 12/8/18 A ratings
- 24 VAC coil with 125 mA current draw
- 1/4" quick-connect terminals for fast wiring
- Compact WR/RBM Type 184 enclosure
Specifications
| Type | AC Operated, WR/RBM Type 184, Heavy Duty |
|---|---|
| Approvals | UL, CSA |
| Coil Voltage | 24 Volt AC at 50/60 Hertz |
| Contact Configuration | SPNO/SPNC |
| Terminal Type | 1/4 Inch Quick Connect |
| Contact Current Rating | 12 Amp at 125 Volt AC (Inductive), 8 Amp at 250 Volt AC (Inductive), 18 Amp at 277 Volt AC (Resistive) |
| Contact Voltage Rating | 125/250/277 Volt AC |
