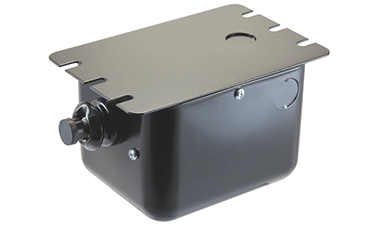

Allanson Transformers 1092-S-G Gas Transformer

The Allanson 1092-S-G gas transformer delivers reliable voltage conversion for gas furnaces and related control circuits. The primary voltage is 250/180 VAC and the secondary delivers 6000 VAC, with a 50/60 Hz rating to match standard commercial and residential power. Designed for robust performance in demanding environments, this gas transformer supports ignition, sensing, and control functions in heating systems with steady, safe operation.

Built for durability, it features a ferromagnetic core, an internal junction box, and a single-pole design with grounding on one end for safety. The unit mounts on the primary side with a 3-wire setup and uses thumb screw terminations for quick connections. Its compact construction and protected wiring make it ideal for space-limited installs in gas furnaces, while delivering reliable insulation and performance.

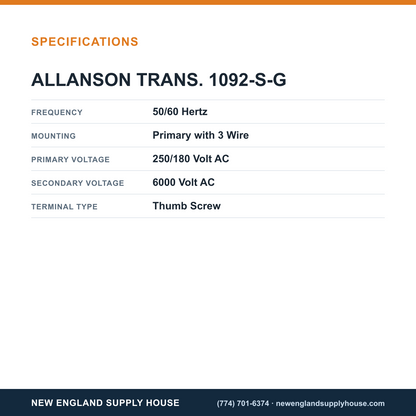

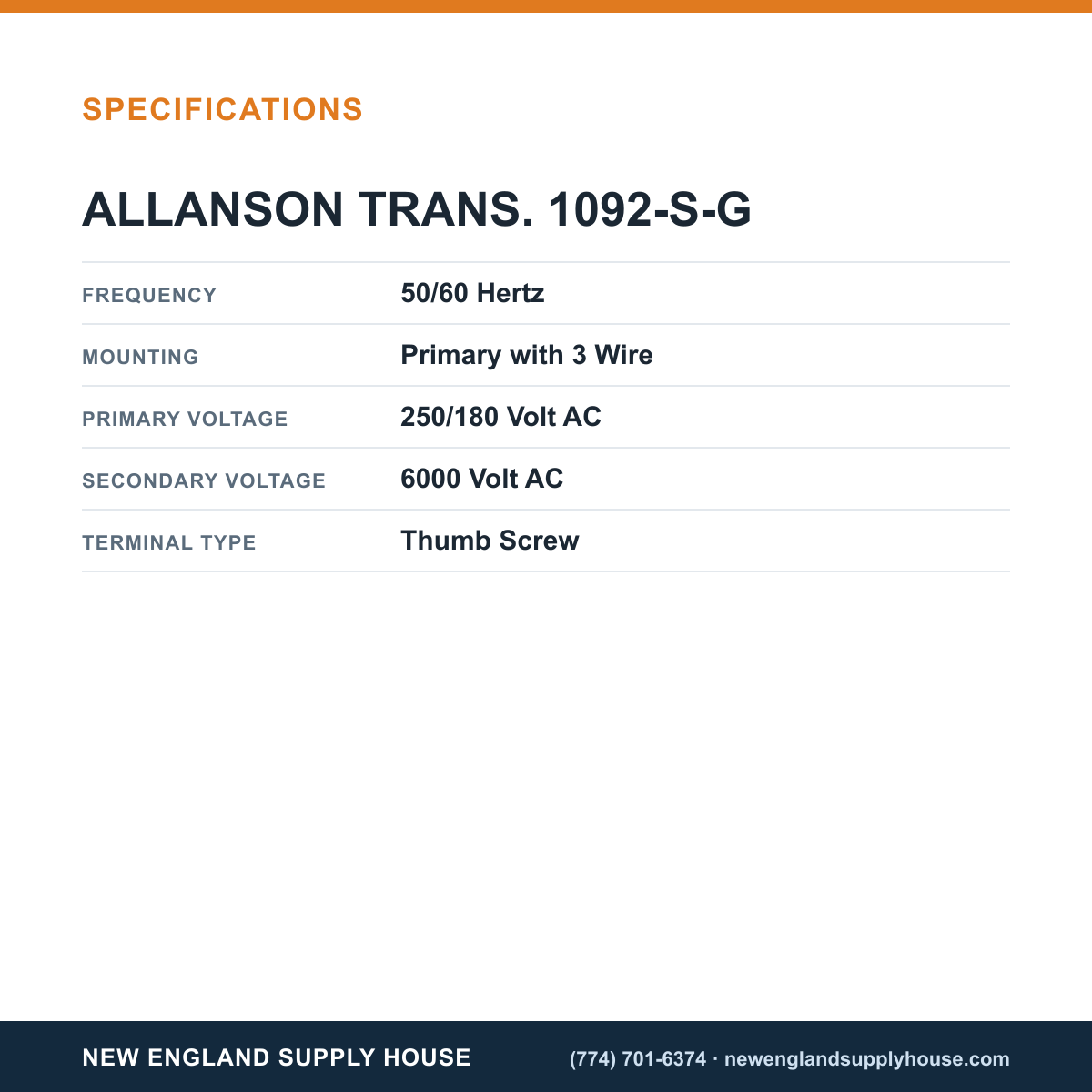

• Primary Voltage: 250/180 VAC
• Secondary Voltage: 6000 VAC
• Frequency: 50/60 Hz
• Mounting: Primary with 3-wire
• Termination: Thumb Screw
• Grounding: One End Ground
• Core: Ferromagnetic
• Junction Box: Internal
• Poles: 1
• Voltage Rating: 120 VAC
• Loading Air Gap: 1/16" to 1/8"
• Storage Temp: -40 to 80 °C
• Operating Temp: -30 to 40 °F
• Humidity: Up to 90% RH
• Applications: Gas furnace; Residential, Industrial, Commercial
