Allanson Transformers 2275-628G HVAC Oil Igniter

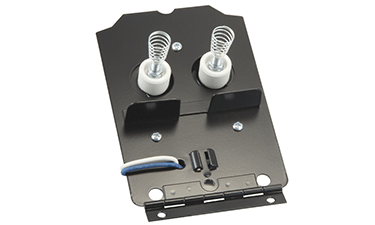

Allanson Transformers 2275-628G HVAC Oil Igniter is a reliable electronic igniter designed for heating and air conditioning systems. This mid-point grounded oil ignition module delivers precise spark at high voltage, enabling consistent burner operation in HVAC applications. The unit’s large spring contact terminal and included mounting plate with barrier gaskets ensure secure, durable installation.

Engineered for robust performance, this oil igniter handles demanding HVAC environments with a 120 Volt AC input at 50/60 Hz, a primary voltage of 87 V, and a secondary voltage of 17.5 kV. It offers a power rating of 86.5 VA and a secondary short circuit current of 45 mA, delivering dependable ignition under varying conditions. The loading air gap can be tuned from 1/16 to 3/16 inch to match burner requirements, while operating temperatures range from -30 to 40°C (storage from -40 to 80°C) and up to 90% relative humidity.

• Input Voltage: 120 VAC @ 50/60 Hz
• Primary/Secondary: 87 V / 17.5 kV
• Power: 86.5 VA; Short-Circuit Current: 45 mA
• Air Gap: 1/16" to 3/16"
• Temperature & Humidity: Operating -30 to 40°C; Storage -40 to 80°C; 90% RH
• Includes: Mounting plate, barrier gaskets, mounting plate clip, end hinge
• Config: Mid Point Ground with Large Spring Contact Terminal
