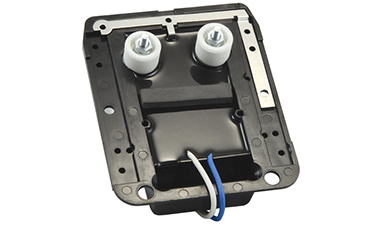

Allanson Transformers 2275-U Oil Burner Igniter

Allanson Transformers 2275-U Oil Burner Igniter is a universal electronic igniter designed for oil burner systems. This reliable ignition solution is suitable for heating and air conditioning equipment, featuring universal compatibility and UL/CSA approvals.

Key specifications include a 120V AC input at 50/60 Hz, a primary voltage of 87V, and a 17.5 kV secondary for strong ignition capability. The mid-point ground design provides safe, dependable operation across oil burner applications. This oil burner igniter delivers about 86.5 VA of power with a secondary short circuit current of 45 mA, ensuring quick, efficient light-off.

Operate in demanding environments with robust safety and performance standards. It tolerates operating temperatures from -30 to 40 C, storage temperatures from -40 to 80 C, and up to 90% relative humidity. The loading air gap is adjustable from 1/16" to 3/16" for optimal flame establishment. UL and CSA approvals ensure compliance with essential safety guidelines.

• Universal electronic igniter for oil burners with reliable ignition control
• Input: 120V AC at 50/60 Hz; Primary: 87V; Secondary: 17.5 kV
• High ignition energy: 86.5 VA; Secondary short circuit current: 45 mA
• Mid-point ground configuration for safe operation
• Wide operating range: -30 to 40 C (operating); -40 to 80 C (storage); 90% RH
• Loading air gap: 1/16" to 3/16"
• UL and CSA approved for trusted performance
