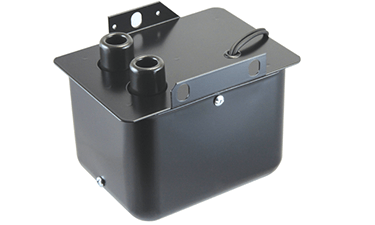

Allanson Transformers 2714-633 Gas Transformer

Allanson Transformers 2714-633 Gas Transformer delivers dependable high-voltage conversion for gas furnace systems. This model uses a 275V AC primary and a 12,000V AC secondary, engineered for 60 Hz operation in residential, commercial, and industrial settings. With a ferromagnetic core and mid-point grounding, the transformer offers reliable performance for gas furnace control circuits.

Key construction features include an internal junction box, a side-mounted bracket for versatile installation, and a Rajah Connector termination for secure connections. The transformer is rated for operating temperatures from -30 to 40 C and storage from -40 to 80 C, and it tolerates up to 90% relative humidity, ensuring dependable service in challenging environments.

• Primary voltage: 275V AC
• Secondary voltage: 12,000V AC
• Frequency: 60 Hz
• Junction box: Internal
• Terminations: Rajah Connector
• Mounting: Side bracket
• Type: Ferromagnetic core with mid-point grounding
• Poles: 2
• Voltage rating (low side): 120V AC
• Air gap loading: 1/8" to 3/16"

Ideal for gas furnace systems across residential, commercial, and industrial applications, the Allanson 2714-633 combines robust construction with reliable electrical performance.
