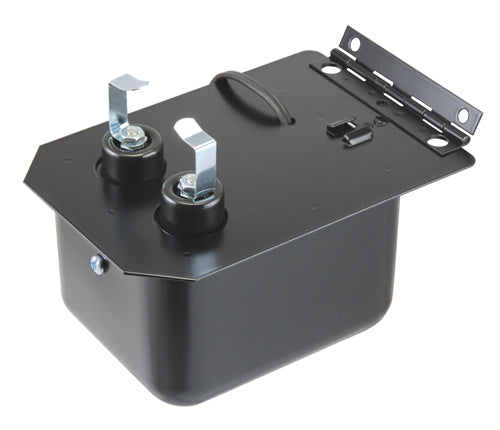

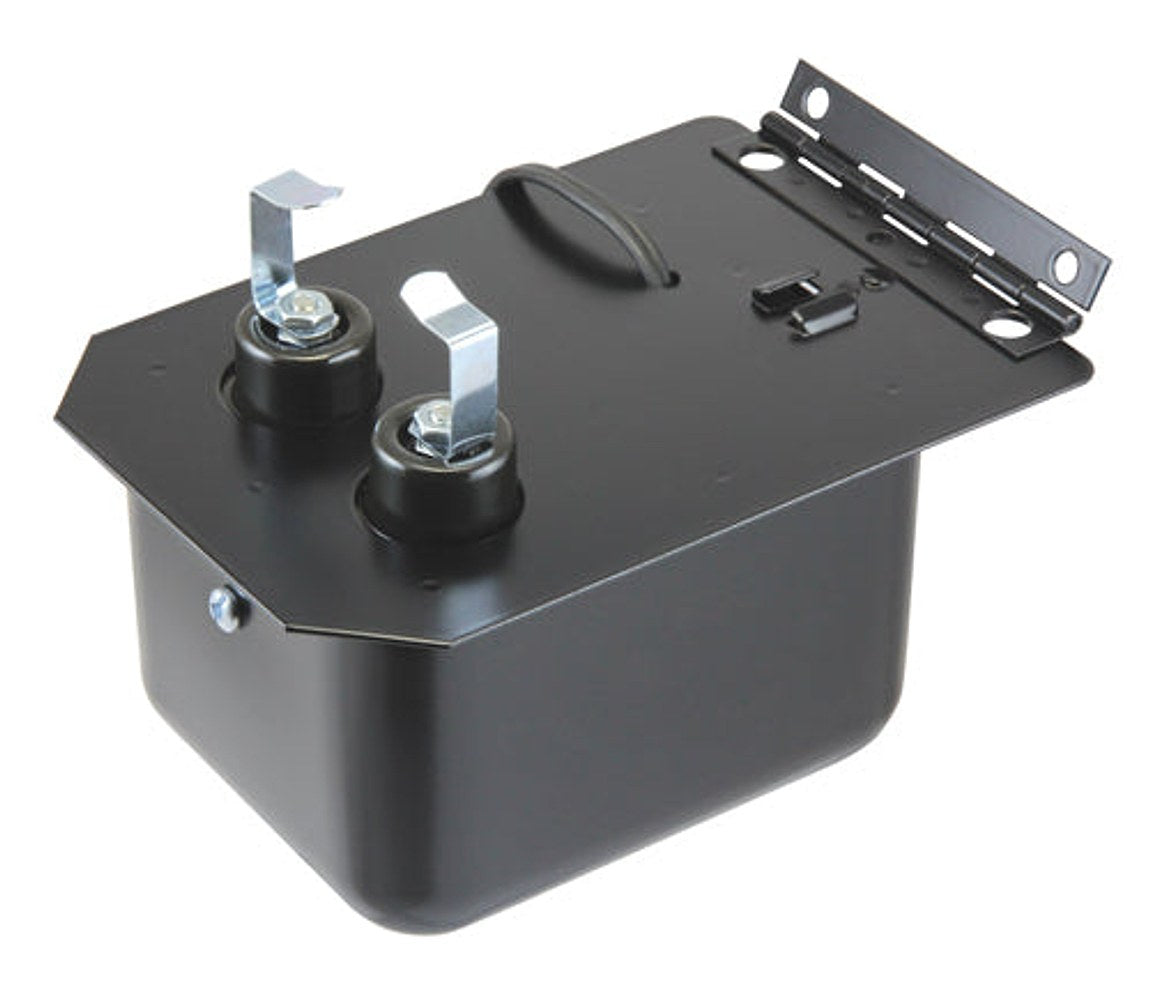

Allanson Transformers 2721-630 Gas Transformer

Allanson Transformers 2721-630 Gas Transformer delivers reliable power conversion for demanding gas furnace installations. The transformer provides a 250V AC primary and a 10,000V AC secondary, making it ideal for high-voltage ignition and control circuits in residential, commercial, and industrial gas furnaces. With a 60 Hz rating and a ferromagnetic core, this two-pole, mid-point grounded device delivers stable performance, enhanced safety, and long service life. Spring clip terminals ensure secure connections, while the end hinge supports simple mounting and maintenance access.

• Voltage and design: Primary 250V AC, Secondary 10000V AC, 60 Hz, 2-pole, ferromagnetic core, mid-point ground, end hinge.
• Connections and clearance: Spring clip terminals; loading air gap 1/8 to 3/16 inch; includes mounting plate gasket.
• Voltage rating: 120V AC.
• Environment: Operating temperature -30 to 40°F; storage -40 to 80°C; relative humidity up to 90%.
• Applications: Designed for residential, commercial, and industrial gas furnaces.

Built for durability and ease of installation, the Allanson 2721-630 Gas Transformer delivers dependable performance across a range of HVAC systems.
