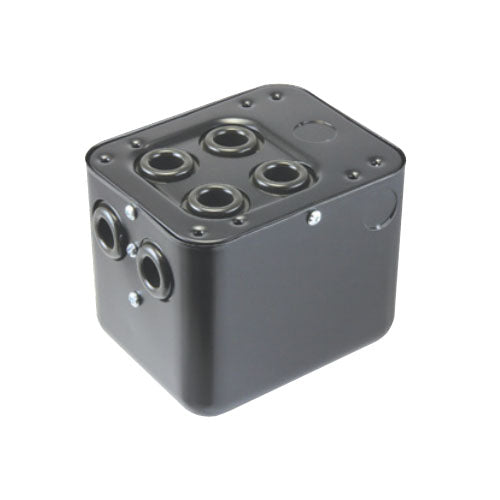

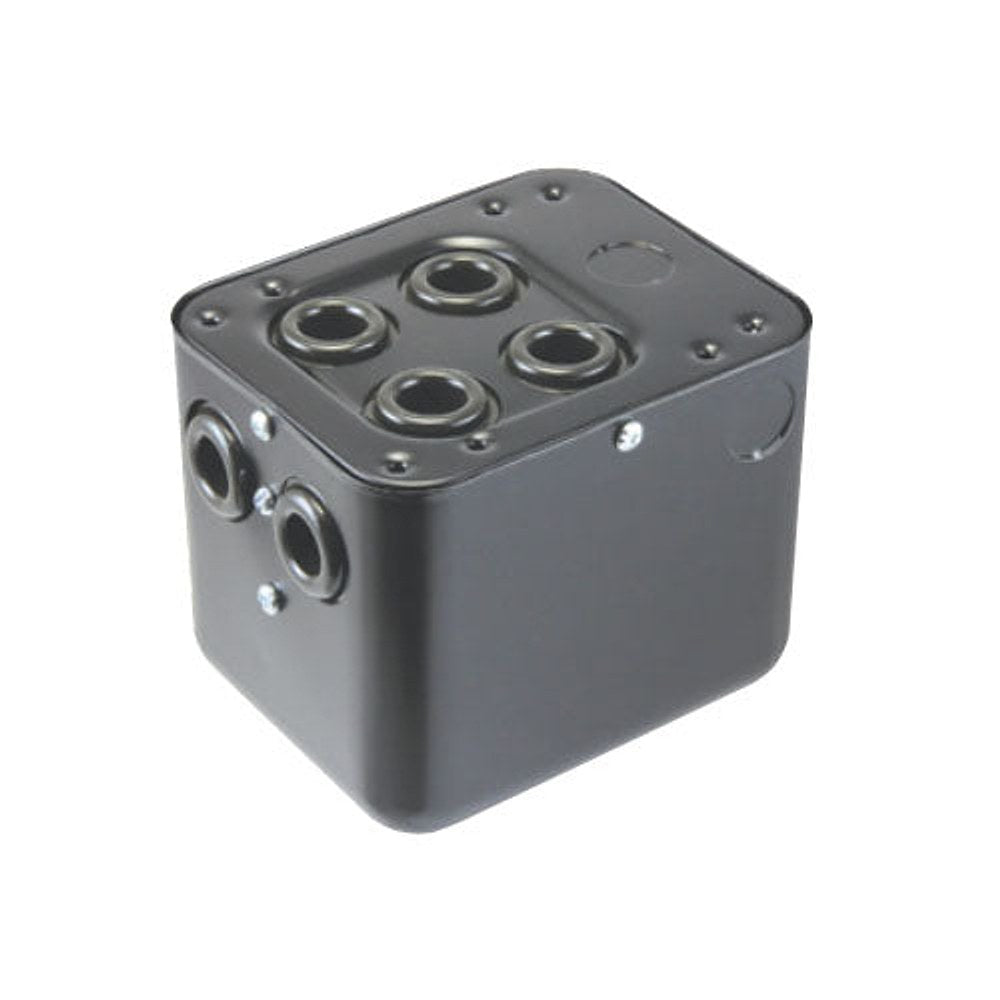

Allanson Transformers 421-BT636 Gas Transformer

Gas Transformer from Allanson delivers reliable high-voltage stepping from 250 V AC to 10,000 V AC for residential, commercial, and industrial gas furnace applications. Featuring a Mid Point Ground design, internal junction box, and six connection points, this model offers safe, compact installation in tight spaces.

Key specs include a 60 Hz frequency, 120 V AC control voltage, and a 1/8 to 3/16 inch loading air gap, ensuring consistent performance across HVAC systems.

Designed to withstand demanding environments, it tolerates storage temperatures from -40 to 80 C and operating humidity up to 90%. Includes a mounting plate for fast setup.

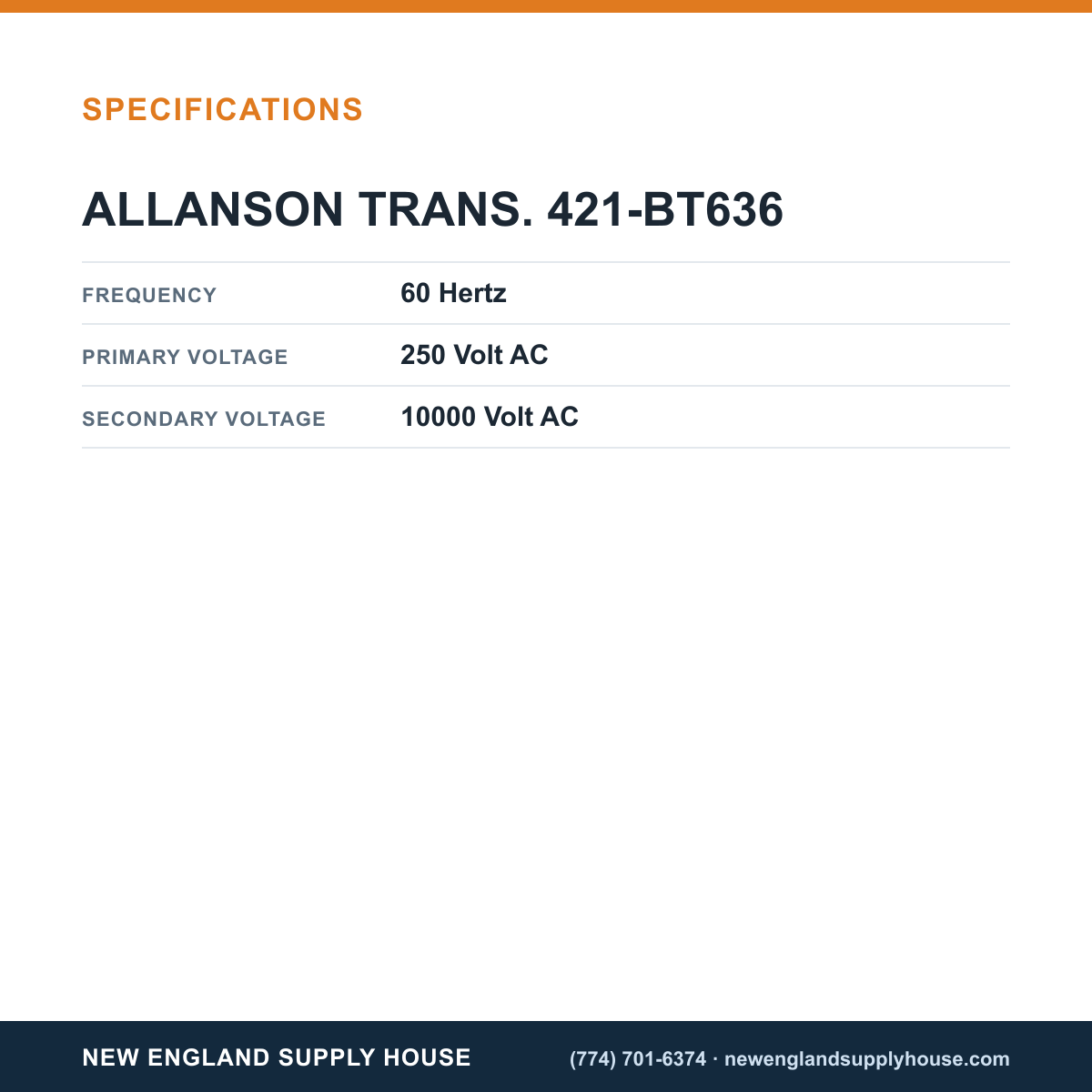

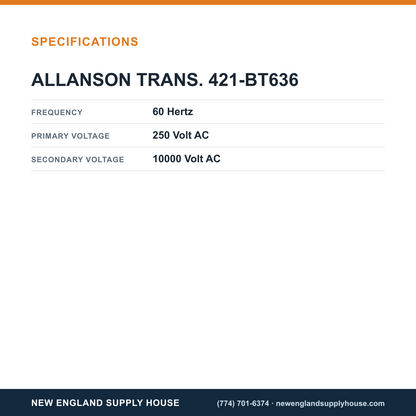

• Primary Voltage: 250 V AC
• Secondary Voltage: 10,000 V AC
• Frequency: 60 Hz
• Type: Mid Point Ground
• Junction Box: Internal
• Ways: 6
• Voltage Rating: 120 V AC
• Loading Air Gap: 1/8" to 3/16"
• Temperature Rating: Storage -40 to 80 C; Operating -30 to 40 F
• Humidity: 90% RH
• Includes: Mounting Plate
• Applications: Residential, Industrial, Commercial Gas Furnaces
