ASCO 8210G002HW Solenoid Valve, 1/2", 120V
ASCO 8210G002HW Solenoid Valve, 1/2", 120V
Out of stock
Couldn't load pickup availability
- Purchase Orders & Tax-Exempt Welcome Contractors, municipalities, schools and businesses: email a PO, or send your exemption certificate once and tax comes off every order.
SKU:77026
View full details
![ASCO 8210G002HW Solenoid Valve — New England Supply House spec card [NESH-SPEC-CARD-V2]](http://newenglandsupplyhouse.com/cdn/shop/files/spec-9032649703646.png?v=1782833874&width=1445)
![ASCO 8210G002HW Solenoid Valve specifications — New England Supply House [NESH-SPECTABLE-V1]](http://newenglandsupplyhouse.com/cdn/shop/files/specs-9032649703646.png?v=1790683798&width=1445)
The ASCO 8210G002HW Solenoid Valve is a 2-Way, pilot-operated valve designed for reliable hot water control. With a diaphragm and piston design, brass body and rugged NEMA-rated enclosure, it’s built to perform in demanding environments.
Operating at 120 VAC (60 Hz) or 110 VAC (50 Hz), this valve tolerates temperatures up to 210°F AC / 150°F DC and handles pressures from 5 to 125 psi (AC) or 5-100 psi (DC) for hot water service. Its vertical/upright mounting simplifies installation and service, making it ideal for commercial and industrial hot water systems.
UL, CSA, and CE certified, it features EPDM seal materials, 305 stainless steel core tube, and a shading coil for dependable actuation. The valve offers a Cv of 4 and a robust build that supports demanding applications such as laundry, molding, steam atomization, sterilizers, and autoclaves.
- Configuration: 2-Way, pilot-operated with diaphragm and piston design
- Construction: brass body in a NEMA enclosure for rugged environments
- Electrical: 120 VAC @ 60 Hz (110 VAC @ 50 Hz); power 6.1 W AC / 11.6 W DC
- Environment & Mounting: vertical/upright mounting; hot water service ready
- Materials & Certification: EPDM seal, stainless steel components; UL, CSA, CE listed

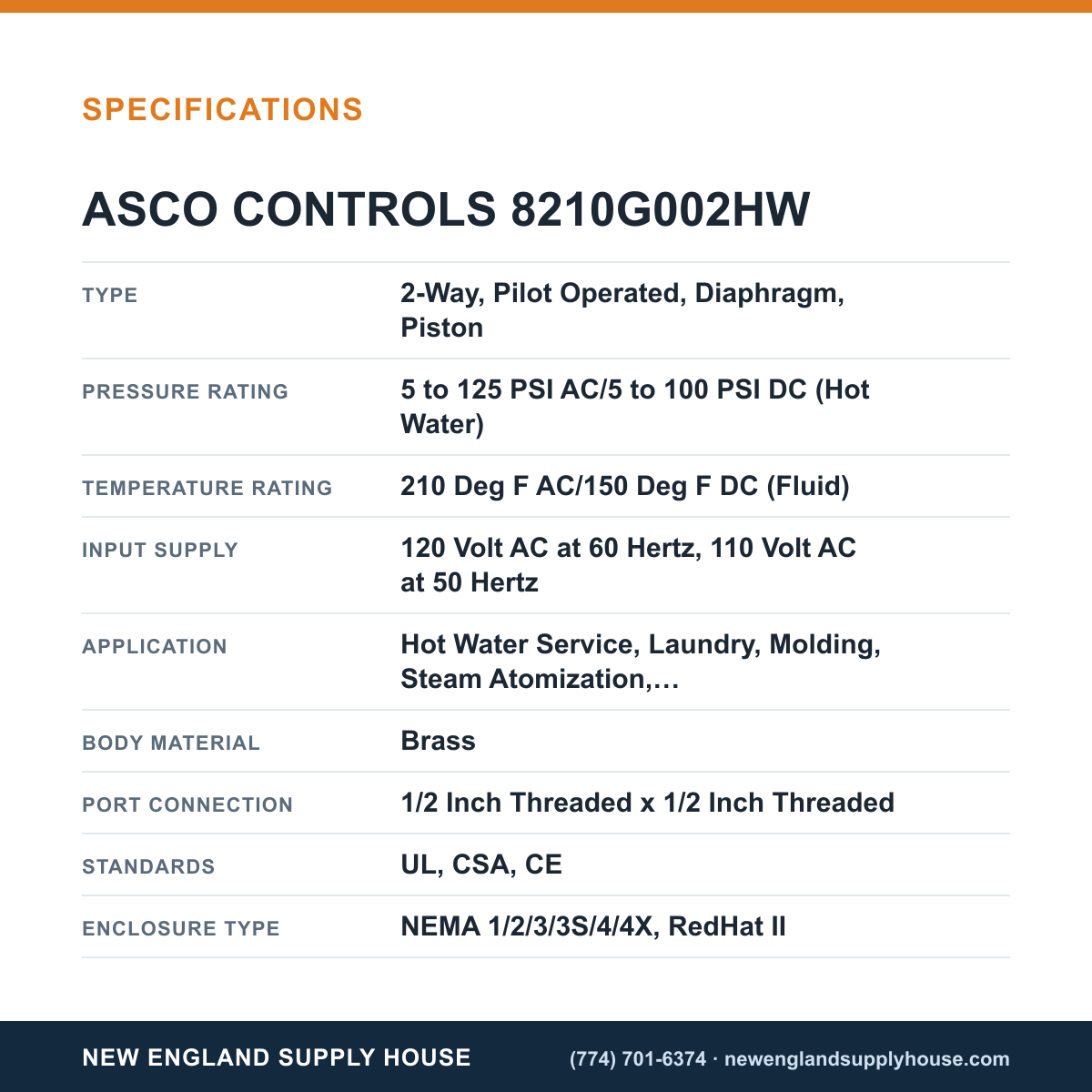

Specifications
| Type | 2-Way, Pilot Operated, Diaphragm, Piston |
|---|---|
| Pressure Rating | 5 to 125 PSI AC/5 to 100 PSI DC (Hot Water) |
| Temperature Rating | 210 Deg F AC/150 Deg F DC (Fluid) |
| Input Supply | 120 Volt AC at 60 Hertz, 110 Volt AC at 50 Hertz |
| Application | Hot Water Service, Laundry, Molding, Steam Atomization, Sterilizer, Autoclave |
| Body Material | Brass |
| Port Connection | 1/2 Inch Threaded x 1/2 Inch Threaded |
| Standards | UL, CSA, CE |
| Enclosure Type | NEMA 1/2/3/3S/4/4X, RedHat II |
| Includes | EPDM Seal/Disc and Diaphragm, 305 Stainless Steel Core Tube, 430F Stainless Steel Core and Plugnut, 302 Stainless Steel Spring, Copper/Silver Shading Coil, Orifice |
| Media | Hot Water |
| Valve Position | NC |
| Mounting Details | Vertical/Upright Installation |
