ASCO 8210G004 Solenoid Valve
ASCO 8210G004 Solenoid Valve
Low stock: 2 left
Couldn't load pickup availability
SKU:108617
View full details
![ASCO 8210G004 Solenoid Valve — New England Supply House spec card [NESH-SPEC-CARD-V2]](http://newenglandsupplyhouse.com/cdn/shop/files/spec-9032650096862.png?v=1782833882&width=1445)
The ASCO 8210G004 Solenoid Valve is a 2-Way, pilot-operated diaphragm valve designed for reliable control of air, inert gas, water, and oil. This brass-bodied valve combines rugged construction with a versatile NEMA enclosure (1/2/3/3S/4/4X, RedHat II) for tough industrial service.
Powered by 24 Volt AC at 60 Hz, it delivers precise, energy-efficient performance with a Cv value of 13. It supports a broad pressure range—5 to 150 PSI for air, inert gas, and water, and 5 to 125 PSI for DC fluids—while withstanding temperatures up to 180°F AC / 150°F DC. For safety and convenience, mounting is vertical/upright and media compatibility covers air, inert gas, water, and oil.
Key features:
- 2-Way, pilot-operated, diaphragm design
- Brass body with NEMA-rated enclosure for rugged environments
- 24V AC, 60 Hz operation and low power consumption (6.1 W AC / 11.6 W DC)
- Media versatility: air, inert gas, water, oil
- UL/CSA/CE listed with NBR/PTFE seals
- Applications: general service, car wash, laundry equipment, air compressors, industrial water control

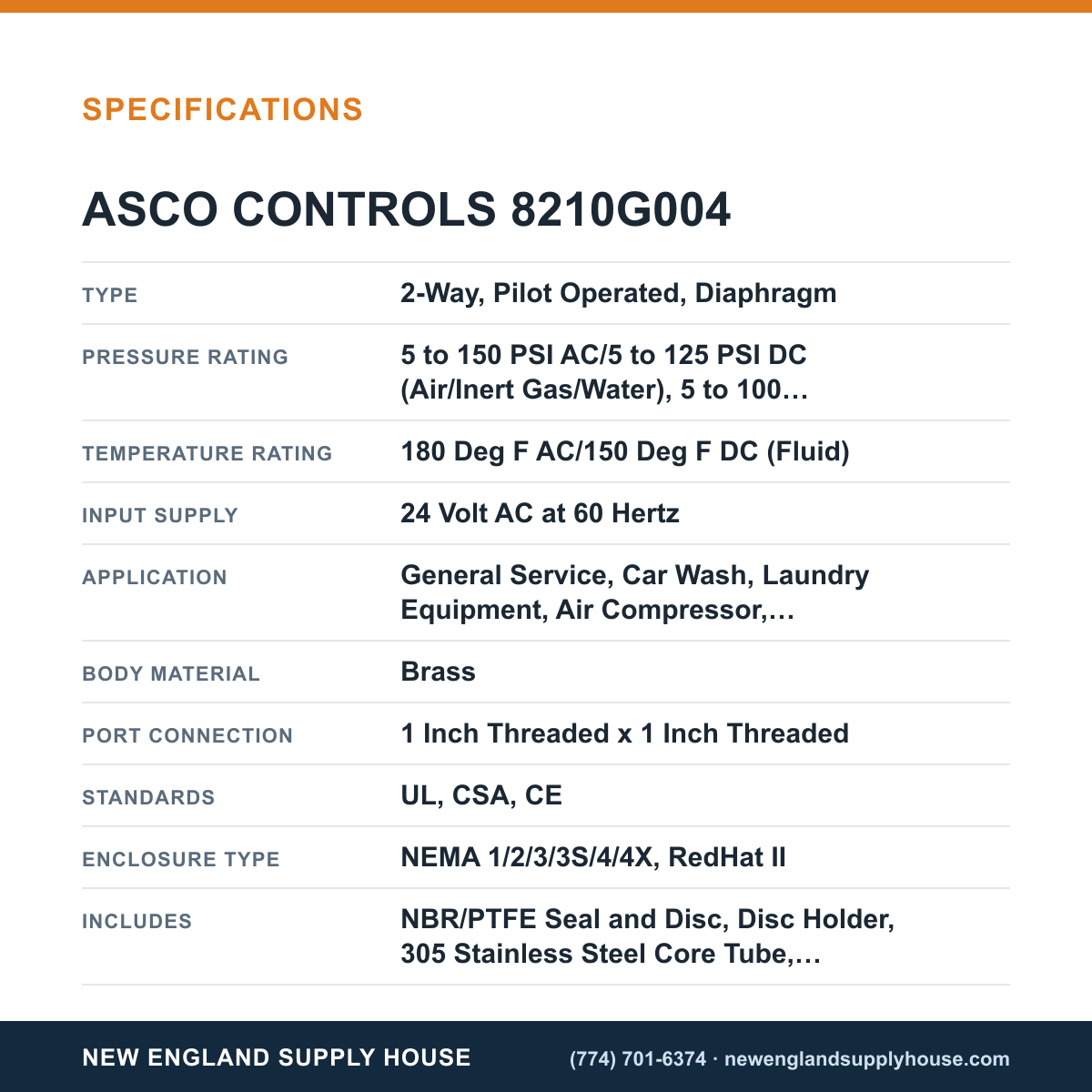

Specifications
| Type | 2-Way, Pilot Operated, Diaphragm |
|---|---|
| Pressure Rating | 5 to 150 PSI AC/5 to 125 PSI DC (Air/Inert Gas/Water), 5 to 100 PSI AC/5 to 125 PSI DC (Oil) |
| Temperature Rating | 180 Deg F AC/150 Deg F DC (Fluid) |
| Input Supply | 24 Volt AC at 60 Hertz |
| Application | General Service, Car Wash, Laundry Equipment, Air Compressor, Industrial Water Control, Pump |
| Body Material | Brass |
| Port Connection | 1 Inch Threaded x 1 Inch Threaded |
| Standards | UL, CSA, CE |
| Enclosure Type | NEMA 1/2/3/3S/4/4X, RedHat II |
| Includes | NBR/PTFE Seal and Disc, Disc Holder, 305 Stainless Steel Core Tube, 430F Stainless Steel Core and Plugnut, 302 Stainless Steel Spring, Copper/Silver Shading Coil, Orifice |
| Media | Air, Inert Gas, Water, Oil |
| Valve Position | NC |
| Mounting Details | Vertical/Upright Installation |
