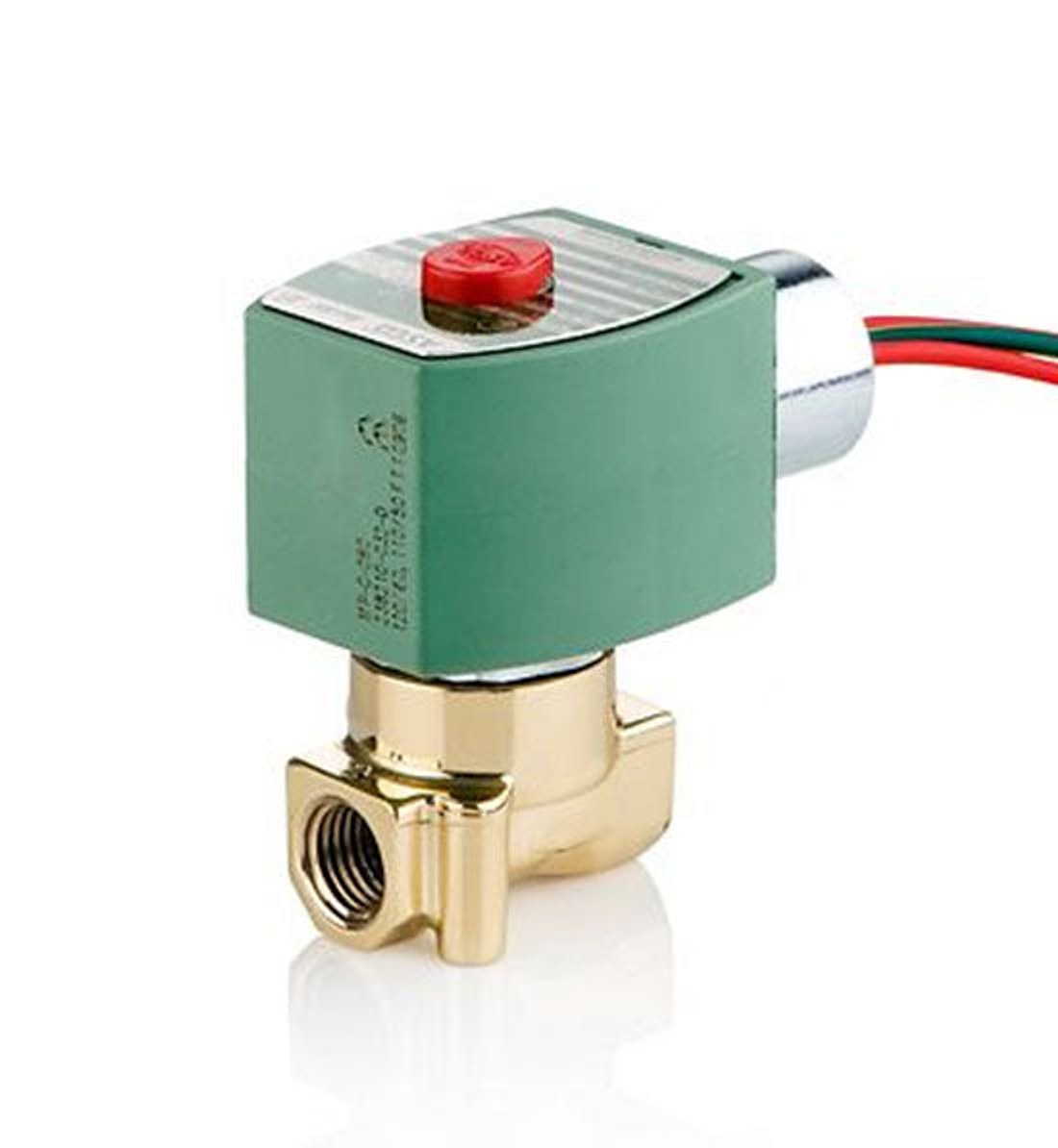

ASCO 8210G004LF Solenoid Valve

ASCO 8210G004LF Solenoid Valve delivers reliable control as a 2-way, pilot-operated diaphragm valve for water, air/inert gas, and oil lines. This brass-bodied unit features 1 inch threaded ports and a normally closed (NC) valve position, with a rugged NEMA enclosure option (NEMA 1/2/3/3S/4/4X, RedHat II) for demanding environments.

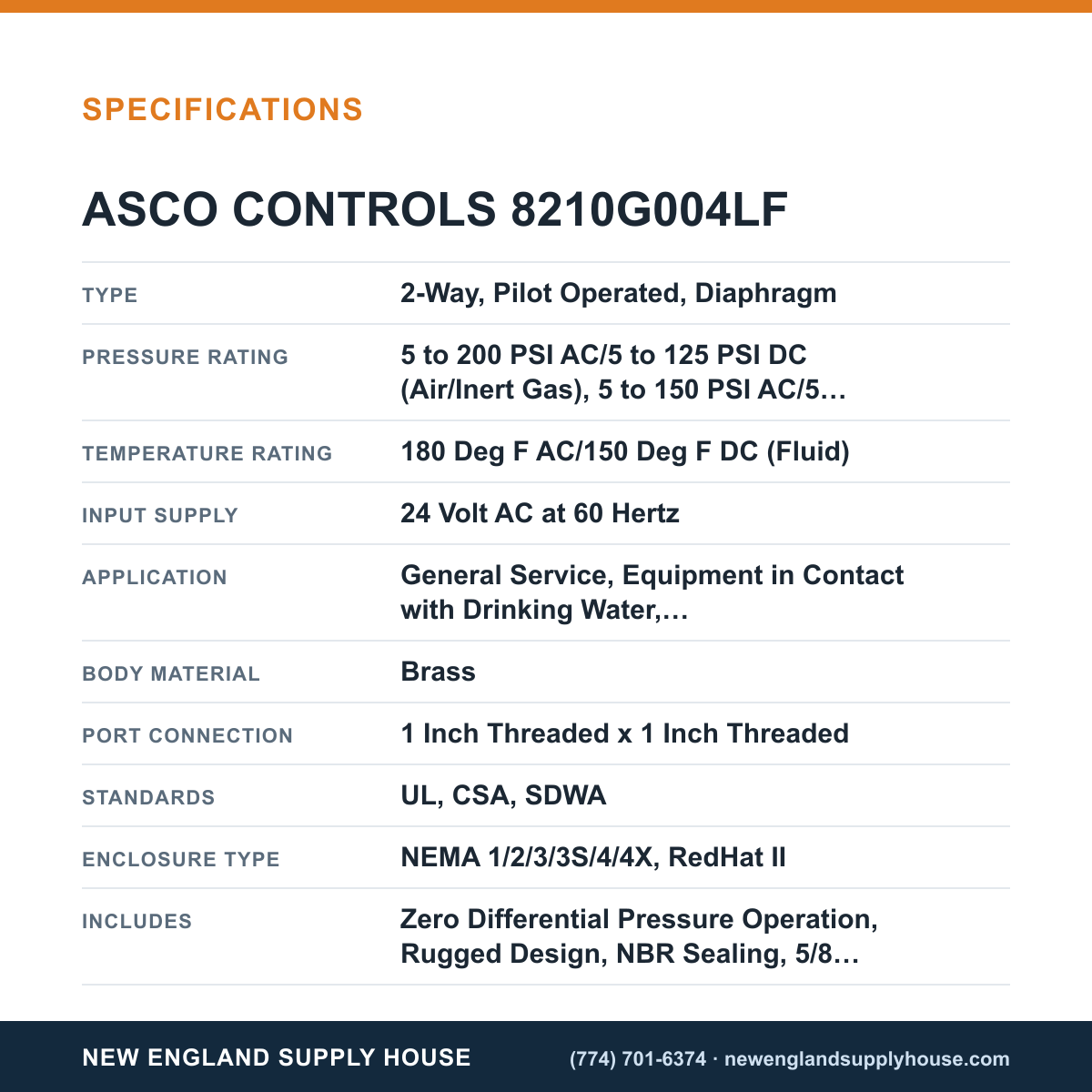

Powered by 24 V AC at 60 Hz, it draws 6.1 W (AC) or 11.6 W (DC) and handles media from air to water to oil across a wide temperature range: 180°F AC / 150°F DC for the fluid. Pressure ratings span 5 to 200 PSI AC/5 to 125 PSI DC (Air/Inert Gas); 5 to 150 PSI AC/5 to 100 PSI DC (Water); 5 to 135 PSI AC/5 to 100 PSI DC (Oil).

• 2-Way, Normally Closed (NC) operation for reliable on/off control
• Pilot-Operated Diaphragm design for clean, leak-free actuation
• Brass Body with rugged NEMA-rated enclosure options
• 1" Port Connections (1" thread on each side) for versatile installation
• 5/8" Orifice and Cv 13 for precise flow
• Zero Differential Pressure Operation to simplify control across supply conditions
• Rebuild Kit Included for easy maintenance
• Lead-Free and UL/CSA/SDWA listed for safety and compliance

Applications include general service and equipment in contact with drinking water, dishwashing, general plumbing, and water automation. This valve is built for long service life in demanding systems and adheres to applicable standards.
