ASCO 8210G009HW Solenoid Valve

The ASCO 8210G009HW Solenoid Valve is a rugged 2-Way, pilot-operated diaphragm valve designed for hot water service. It features a brass body with a NC (normally closed) configuration and a 3/4 inch threaded port for versatile installation.

This valve supports a choice of input voltages (120 VAC 60 Hz or 110 VAC 50 Hz) and a compact power profile: 6.1 W AC or 11.6 W DC.

The temperature rating reaches 210°F with AC and 150°F DC, and it handles pressures from 5 to 125 PSI AC or 5 to 100 PSI DC for hot water lines.

Constructed with EPDM seals, a stainless steel core tube and a copper/silver shading coil, it delivers durability in aggressive environments.

It complies with UL, CSA, and CE standards and supports vertical/upright installation.

Protected by the RedHat II enclosure (NEMA 1/2/3/3S/4/4X), this valve is suited for laundry, molding, steam atomization, sterilizers, and autoclaves. Quality-built performance.

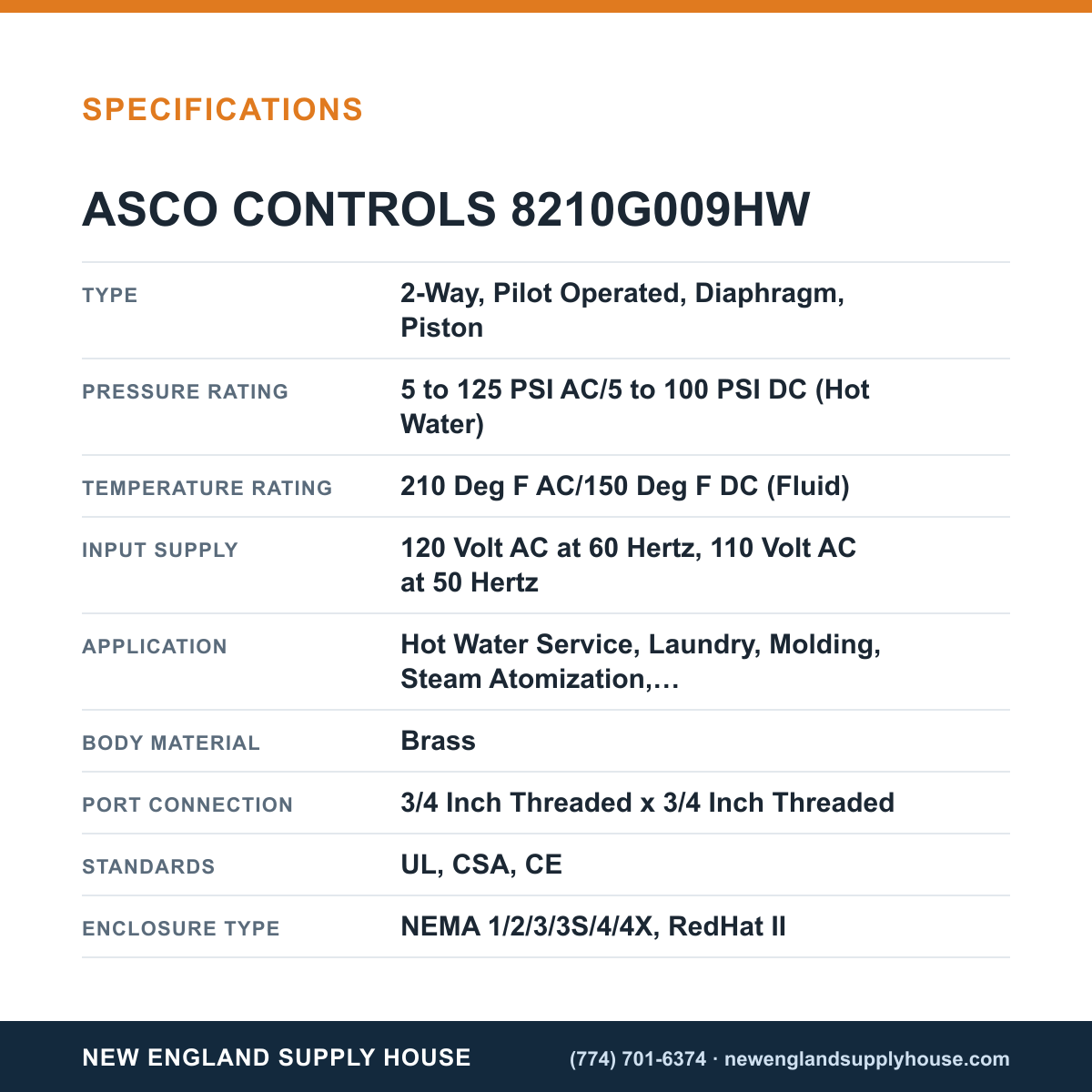

• Type: 2-Way, NC, pilot-operated diaphragm valve
• Ports: 3/4 in. threaded x 3/4 in. threaded
• Enclosure: RedHat II, UL/CSA/CE compliant
• Electrical: 120 VAC 60 Hz or 110 VAC 50 Hz; 6.1 W AC / 11.6 W DC
• Media/Temp: Hot water; 210°F AC / 150°F DC
• Materials: Brass body; EPDM seals; stainless steel core tube; copper/silver shading coil
• Applications: Laundry, molding, steam atomization, sterilizers, autoclaves
