ASCO 8210G015 Solenoid Valve

ASCO 8210G015 Solenoid Valve is a 2-Way, pilot-operated, diaphragm valve designed for precise control of air, inert gas, and water. With a brass body and 1/2 inch port connections, this normally closed (NC) valve delivers reliable shutoff in demanding environments. It supports 120 VAC at 60 Hz or 110 VAC at 50 Hz, and its rugged NEMA enclosure options (1/2/3/3S/4/4X, RedHat II) suit a range of installations.

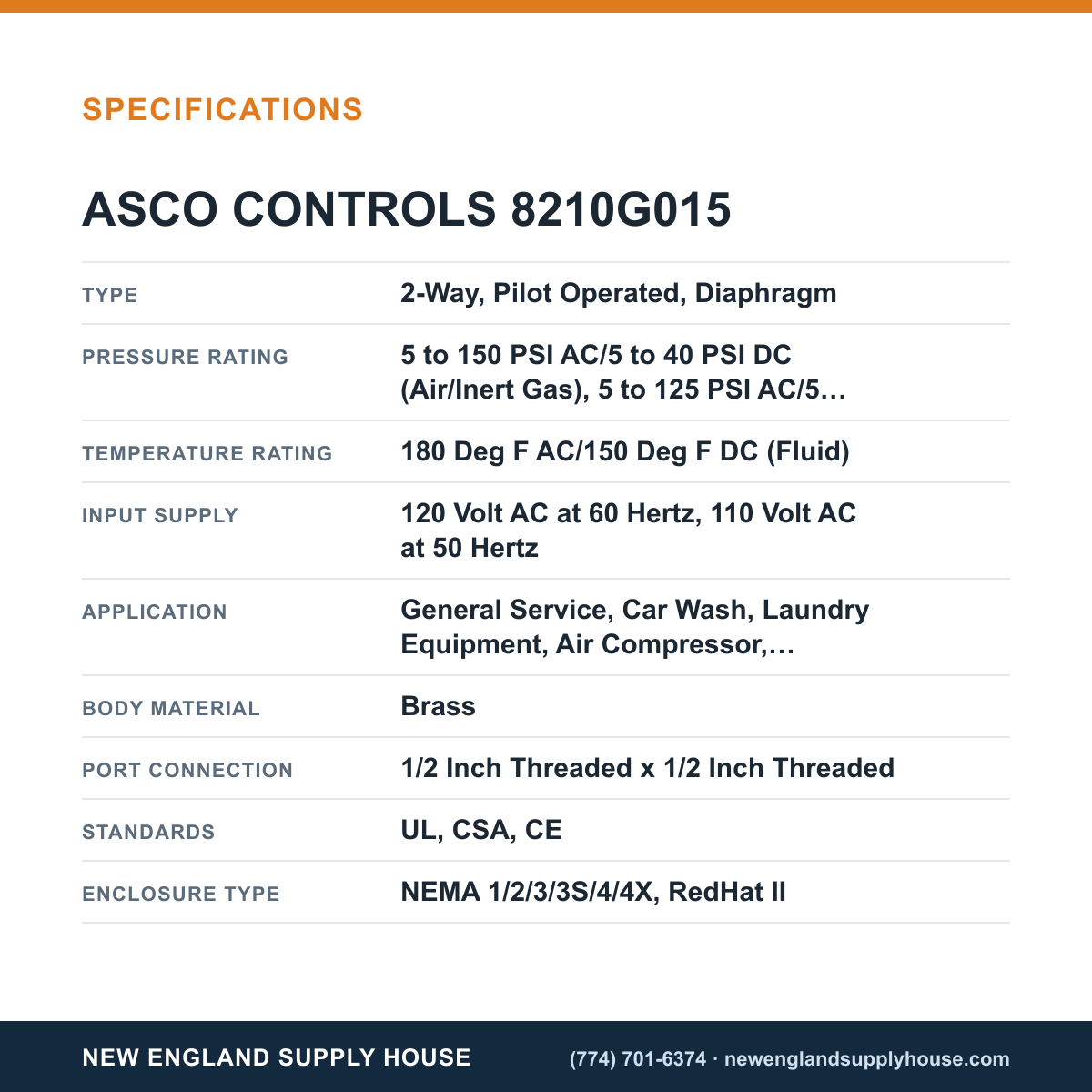

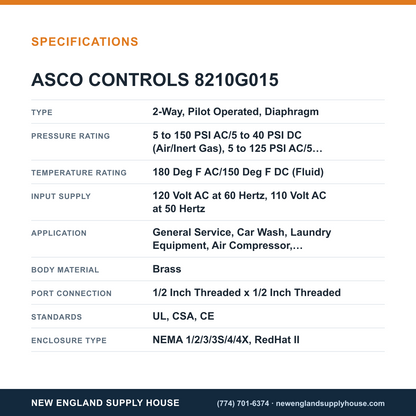

Key specifications ensure robust performance in tough settings:

• Voltage options: 120 VAC/60 Hz or 110 VAC/50 Hz; power use 6.1 W AC, 11.6 W DC
• Port size: 1/2" inlet/outlet; Cv 2.2; NC, 2-Way, pilot-operated diaphragm
• Media: Air, Inert Gas, Water; temperature rating 180°F AC / 150°F DC (fluid)
• Pressure ranges: 5–150 PSI AC / 5–40 PSI DC (air/inert gas); 5–125 PSI AC / 5–40 PSI DC (water)
• Materials & construction: Brass body; NBR/PTFE seals; 305 SS core tube; 430F SS core & plugnut; 302 SS spring; copper/silver shading coil
• Certifications & mounting: UL, CSA, CE; vertical/upright installation

Applications include general service, car wash, laundry equipment, air compressors, industrial water control, and pump systems, delivering reliable shutoff and precise flow control.
