ASCO 8210G018 Solenoid Valve, 1-1/4", 120V

Solenoid Valve performance you can trust—the ASCO 8210G018 Solenoid Valve provides precise, reliable control for air, water, and oil systems. This 2-Way, pilot-operated, diaphragm valve features a brass body and a 1-1/4 inch threaded port with a normally open (NO) operation.

Built for tough environments, it carries a versatile NEMA enclosure rating (1/2/3/3S/4/4X, RedHat II) and runs from 120 V AC at 60 Hz. It handles fluids up to 180°F and supports broad pressure ranges—5–150 psi for air, inert gas, or water, and 5–125 psi for oil. Vertical/upright mounting aids installation, while the media options include air, inert gas, water, and oil.

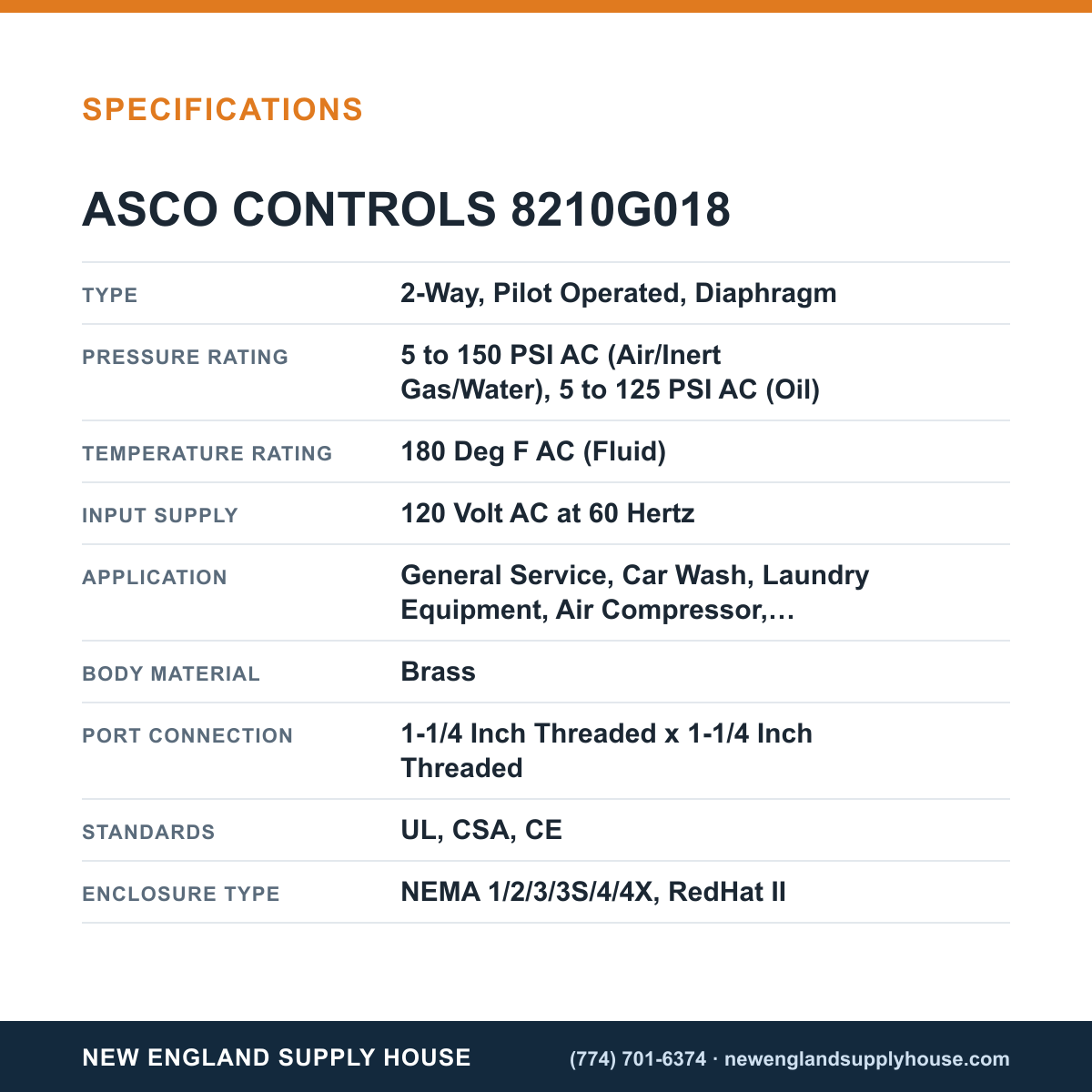

• 2-Way, pilot-operated diaphragm design for precise control
• Port connections: 1-1/4" threaded
• Valve position: NO (Normally Open)
• Brass body with NBR/PTFE seals; robust internals (305 SS core tube, 430F SS core, 302 SS spring, copper/silver shading coil)
• Electrical: 120 VAC, 60 Hz; 16.1 W; Insulation Class F
• Temperature range: up to 180°F (AC fluid)
• Pressure range: 5–150 psi (air/inert gas/water); 5–125 psi (oil)
• Enclosures: UL, CSA, CE listed; NEMA 1/2/3/3S/4/4X, RedHat II
• Media: air, inert gas, water, oil
• Applications: general service, car wash, laundry equipment, air compressor, industrial water control
