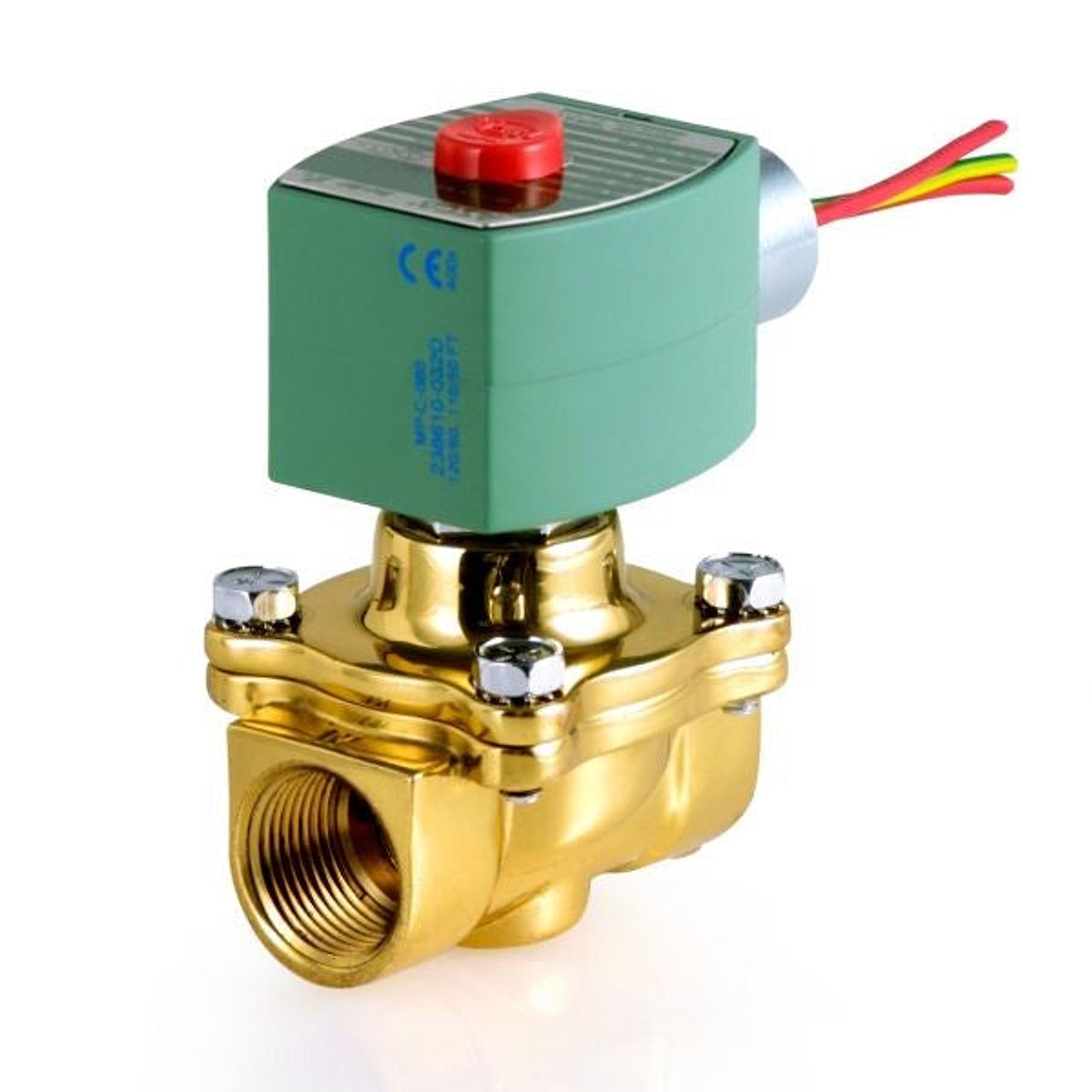

ASCO 8210G022 Solenoid Valve

The ASCO 8210G022 Solenoid Valve is a reliable 2-Way, pilot-operated diaphragm valve that delivers precise control for general service, car wash, laundry equipment, and industrial water control. Featuring a brass body and a rugged NEMA-rated enclosure, this valve handles air, water, oil, and inert gas with dependable performance.

Operates from 120 VAC at 60 Hz or 110 VAC at 50 Hz, with a temperature rating up to 180°F AC and 150°F DC, and pressure ranges from 5 to 150 PSI for air/inert gas/water (and 5 to 125 PSI DC for oil).

Designed for robust service, it uses NBR/PTFE seals, a 305 stainless steel core tube, 430F stainless steel core and plugnut, 302 stainless steel spring, copper/silver shading coil, and a precise orifice to ensure reliable shutoff and quick response. The valve supports vertical mounting and is built to UL/CSA/CE standards.

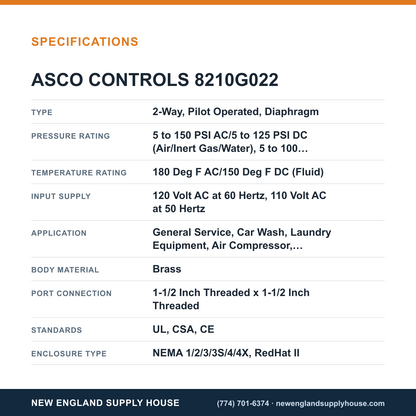

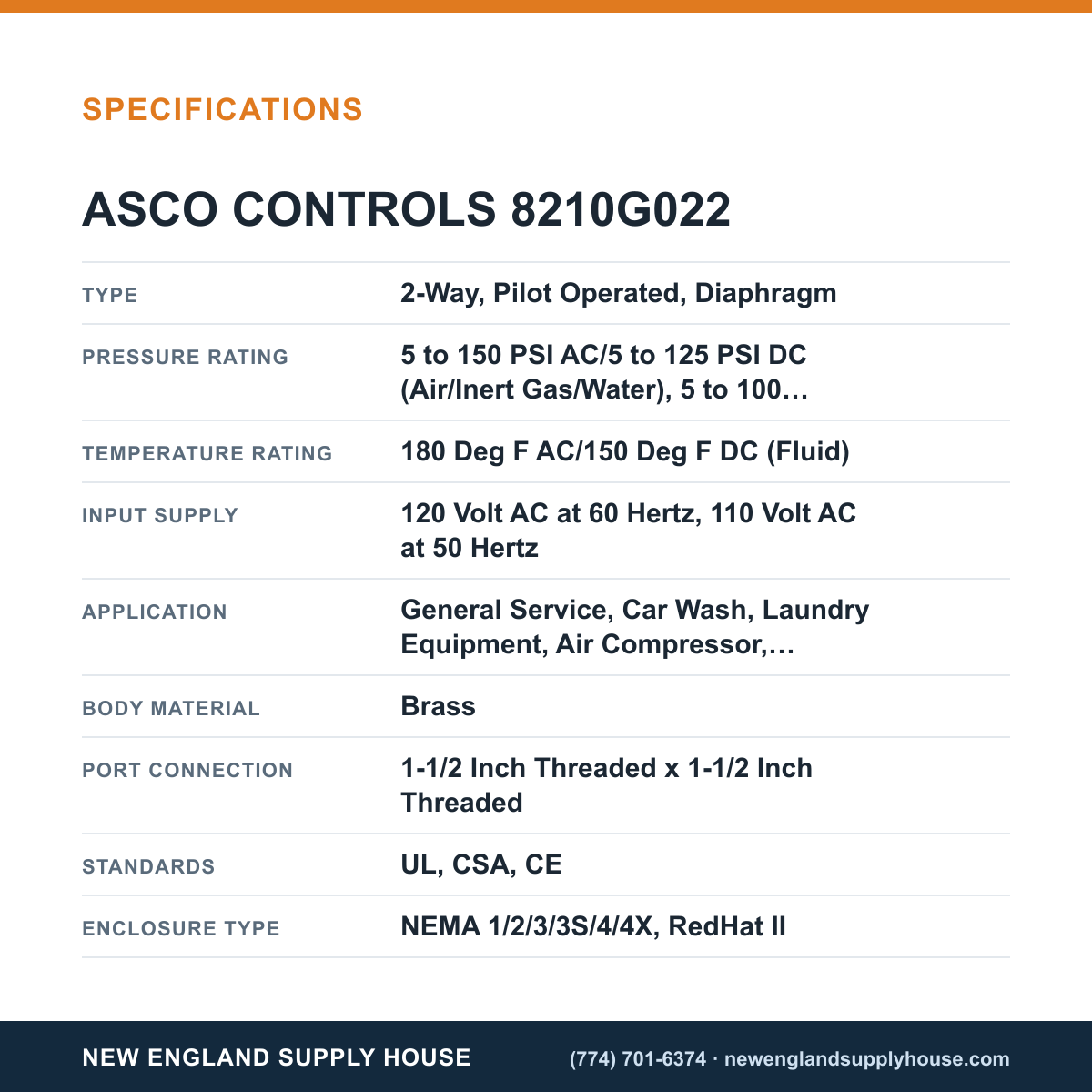

• Type: 2-Way, pilot-operated, diaphragm design for dependable control
• Body: Brass with a rugged NEMA enclosure (UL/CSA/CE)
• Ports: 1-1/2" threaded x 1-1/2" threaded
• Electrical: 120 VAC @60 Hz or 110 VAC @50 Hz; 6.1 W AC / 11.6 W DC
• Operating range: 5–150 PSI (air/inert gas/water); up to 125 PSI DC (oil)
• Flow: Cv 22.5
• Materials: NBR/PTFE seals; 305 SS core tube; 430F SS core/plugnut; 302 SS spring
• Media: Air, Inert Gas, Water, Oil
• Mounting: Vertical/Upright
• Certifications: UL, CSA, CE
