ASCO 8210G093 Solenoid Valve

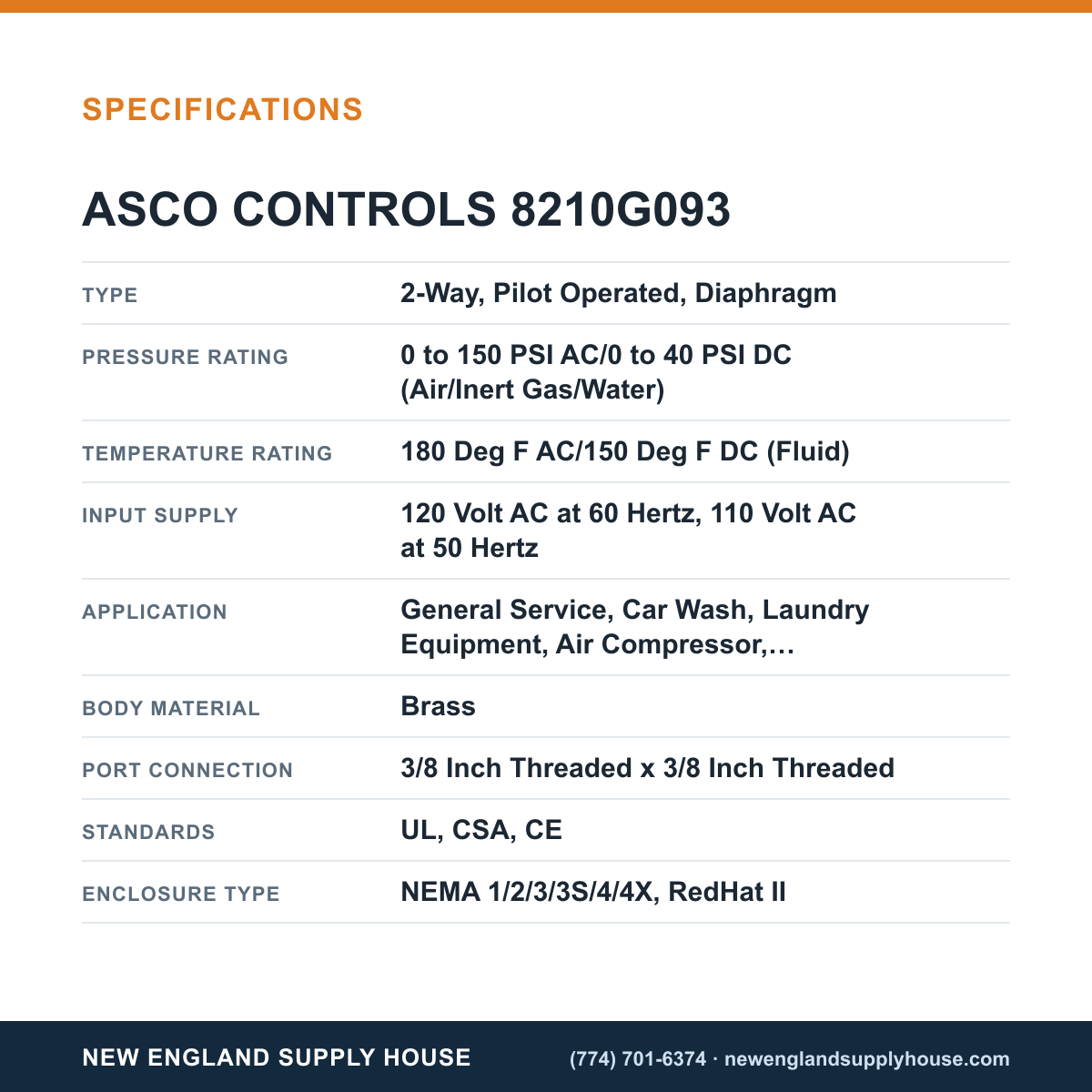

The ASCO 8210G093 Solenoid Valve is a rugged 2-Way, pilot operated diaphragm valve designed for reliable flow control across air, inert gas, and water. With a brass body and a compact 3/8 inch port connection (3/8" x 3/8"), this NC valve delivers precise, tight shutoff in demanding environments. It features a wide enclosure compatibility (NEMA 1/2/3/3S/4/4X, RedHat II) and supports 120 VAC at 60 Hz or 110 VAC at 50 Hz input, making it suitable for a range of industrial control panels.

Operating limits include a temperature rating up to 180°F AC / 150°F DC and a pressure range of 0–150 PSI AC / 0–40 PSI DC. The valve mounts vertically for straightforward installation and handles media such as air, inert gas, and water. Key components include NBR/PTFE seals and discs, a 305 stainless steel core tube, stainless steel spring, and a copper/silver shading coil for reliable actuation.

• 2-Way, NC valve with pilot-operated diaphragm for precise control
• Brass body with rugged NEMA enclosure options for harsh environments
• Wide voltage compatibility: 120 VAC (60 Hz) or 110 VAC (50 Hz); low power consumption
• Cv 3, 10.1 W AC / 11.6 W DC power rating
• Applications: general service, car wash, laundry equipment, air compressor, industrial water control

Certifications: UL, CSA, CE. This ASCO valve is built for dependable performance in demanding automation systems.
