ASCO 8210G095HW Solenoid Valve

ASCO 8210G095HW Solenoid Valve is a 2-Way, pilot-operated valve designed for reliable hot water control. This diaphragm-piston solenoid valve combines brass body construction with rugged seals to handle demanding hot water service with precision.

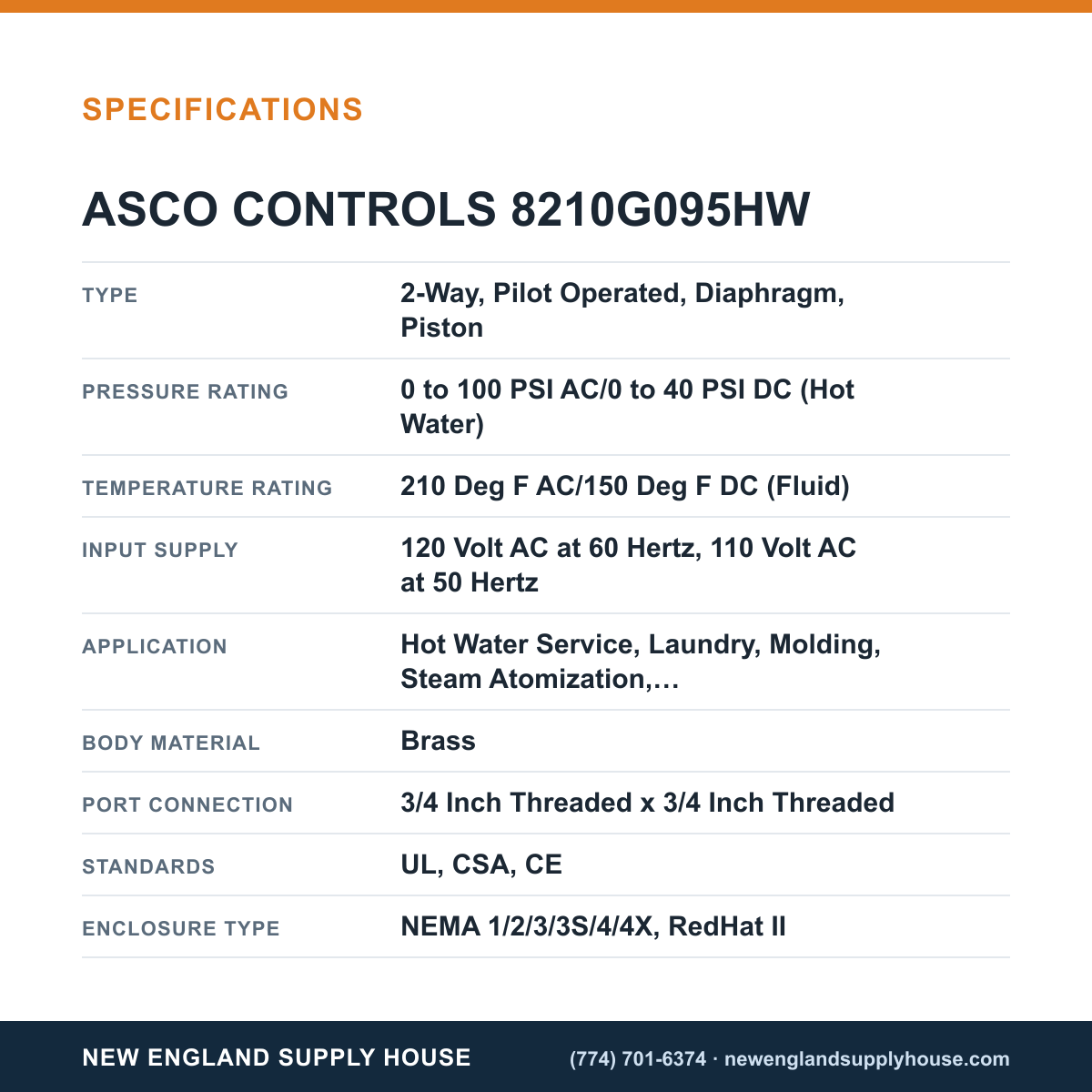

Key specs include 3/4 inch threaded port connections, normally closed (NC) operation, and a versatile NEMA enclosure rated for 1/2/3/3S/4/4X environments (RedHat II). It accepts 120 VAC at 60 Hz or 110 VAC at 50 Hz, with a temperature rating of 210°F (AC) / 150°F (DC) and a pressure range of 0–100 PSI (AC) / 0–40 PSI (DC) for hot water.

Designed for vertical/upright installation and hot water media, the valve integrates robust internals including EPDM seal/disc and diaphragm, 305 stainless steel core tube, 430F stainless steel core and plugnut, 302 stainless steel spring, and copper/silver shading coil. The high-reliability design achieves a Cv of 5 with power ratings of 10.1 W (AC) or 11.6 W (DC) and insulation class Type F.

• 2-Way, pilot-operated, diaphragm/piston design
• Brass body with EPDM seals; 3/4" threaded ports
• NC operation; NEMA enclosure compatible for harsh environments
• Voltage options: 120 VAC/60 Hz or 110 VAC/50 Hz
• Temperature/Pressure: 210°F (AC) / 150°F (DC); 0–100 PSI (AC) / 0–40 PSI (DC)
• Robust internals: 305 SS core tube, 302 SS spring, copper/silver shading coil
• Applications: hot water service, laundry, molding, sterilizer, autoclave
