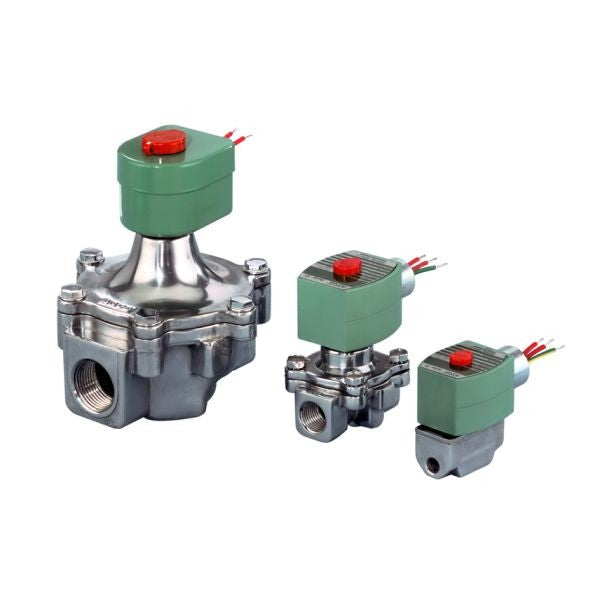

ASCO 8215A040CSA Solenoid Valve

Name: ASCO 8215A040CSA Solenoid Valve
Brand: ASCO CONTROLS
SKU: 98568
Price: 1755.23 USD
Availability: InStock

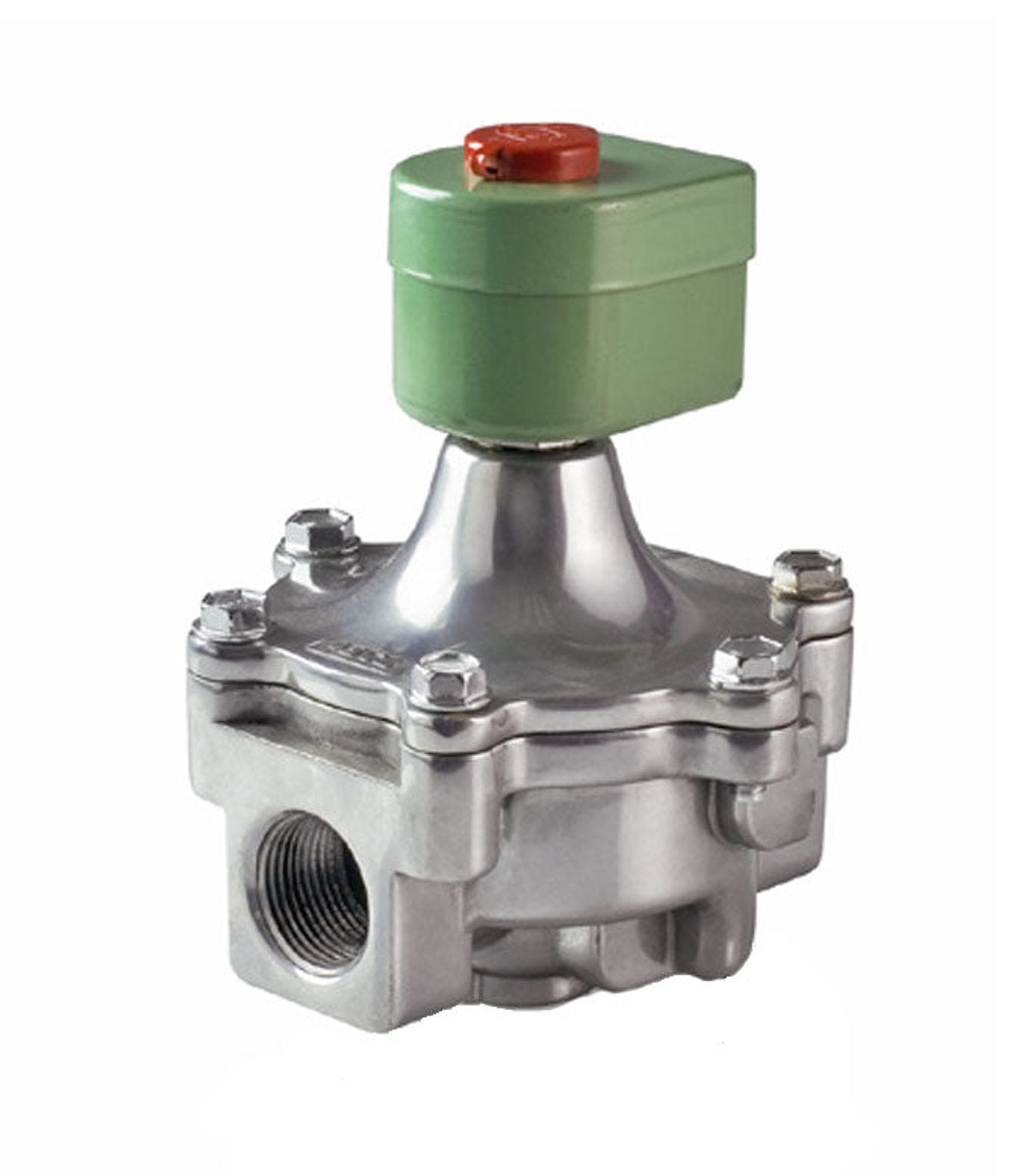

ASCO 8215A040CSA Solenoid Valve

$1,755.23 USD

Sale Sold out

Shipping calculated at checkout.

Low stock: 1 left

SKU:98568

View full details

ASCO 8215A040CSA Solenoid Valve is a reliable two-way, direct-acting valve designed for air and fuel gas applications. This lightweight, low-cost solenoid valve features an aluminum body and a rugged PTFE rider ring, delivering dependable operation in demanding environments. Its normally closed (NC) configuration and direct-acting/electrically/piloted design provide precise control across a broad range of pressures from 0 to 5 psi at temperatures up to 125°F. Compatible with UL, CSA, CE, and FM standards, the valve supports vertical mounting and multiple enclosure options (NEMA 1/2/3/3S/4/4X, Red Hat II).

Port connections: 3-inch threaded x 3-inch threaded.
Valve position: Normally closed (NC) configuration.
Materials: Aluminum body with NBR diaphragm/seal, PTFE rider ring.
Enclosure and standards: NEMA 1/2/3/3S/4/4X, Red Hat II; UL, CSA, CE, FM approved.
Electrical specs: 120 VAC at 60 Hz or 110 VAC at 50 Hz; 28.2 W.
Media and service: Handles air and fuel gas; suitable for air/vacuum service.
Flow: Cv 138 for precise control.

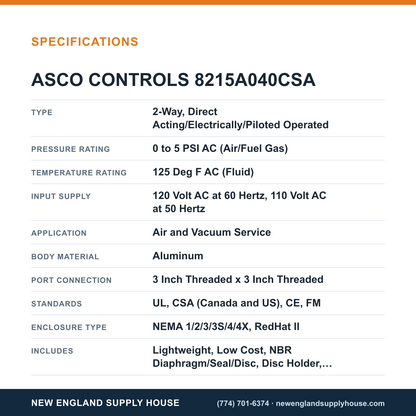

Specifications

Type	2-Way, Direct Acting/Electrically/Piloted Operated
Pressure Rating	0 to 5 PSI AC (Air/Fuel Gas)
Temperature Rating	125 Deg F AC (Fluid)
Input Supply	120 Volt AC at 60 Hertz, 110 Volt AC at 50 Hertz
Application	Air and Vacuum Service
Body Material	Aluminum
Port Connection	3 Inch Threaded x 3 Inch Threaded
Standards	UL, CSA (Canada and US), CE, FM
Enclosure Type	NEMA 1/2/3/3S/4/4X, RedHat II
Includes	Lightweight, Low Cost, NBR Diaphragm/Seal/Disc, Disc Holder, POM Core Guide, 305 Stainless Steel Core Tube, PTFE Rider Ring, 430F Stainless Steel Core and Plugnut, Copper Shading Coil, Orifice
Media	Air, Fuel Gas
Valve Position	NC
Mounting Details	Vertical/Upright Installation
