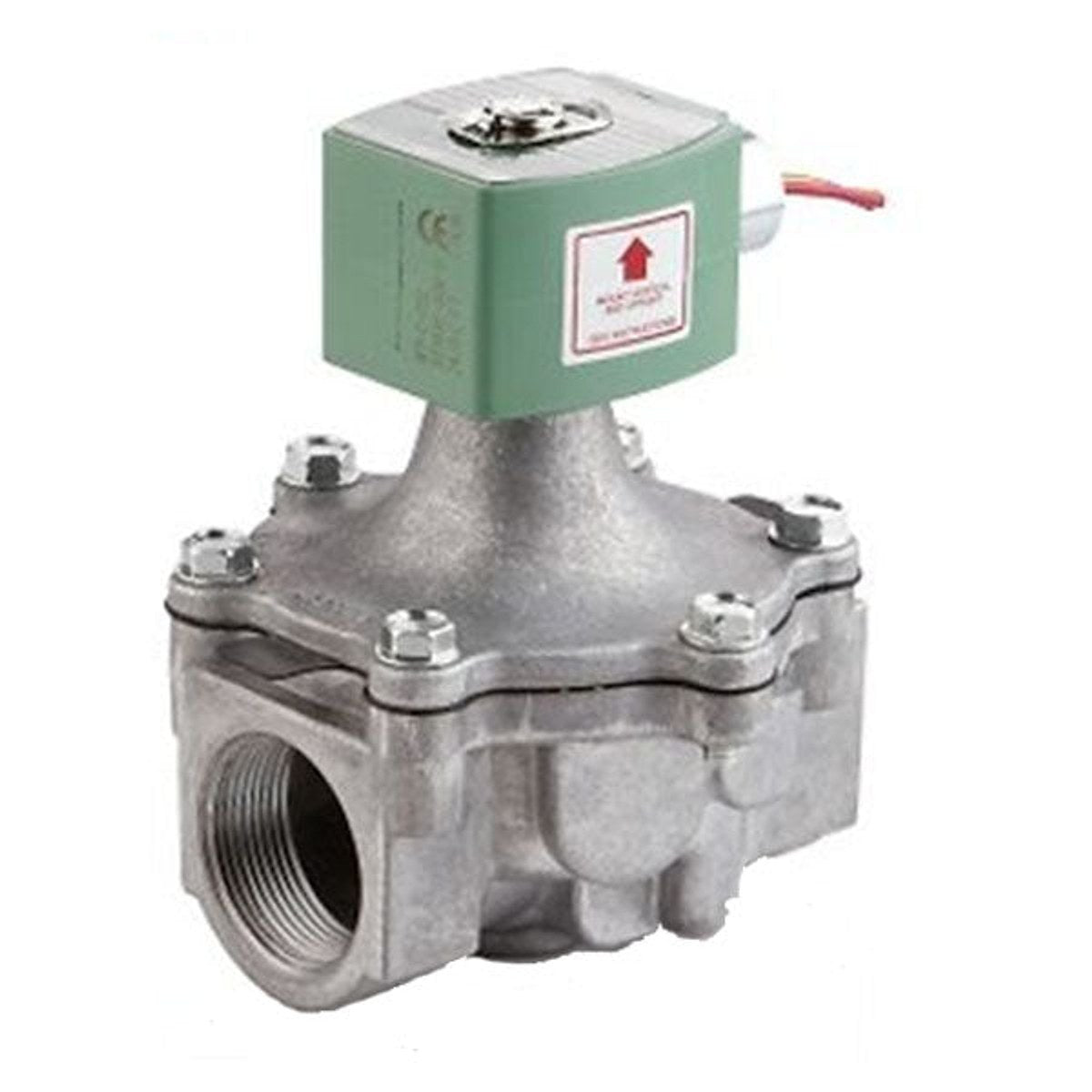

ASCO 8215A090CSA Solenoid Valve

The ASCO 8215A090CSA Solenoid Valve is a 2-Way, Direct Acting/Electrically/Piloted Operated valve designed for precise on/off control in air and fuel gas lines. This compact unit features 2-1/2 inch threaded port connections and normally closed (NC) operation, along with a rugged aluminum body. It is protected by a versatile NEMA 1/2/3/3S/4/4X, RedHat II enclosure, making it well suited for a range of installation environments without compromising performance.

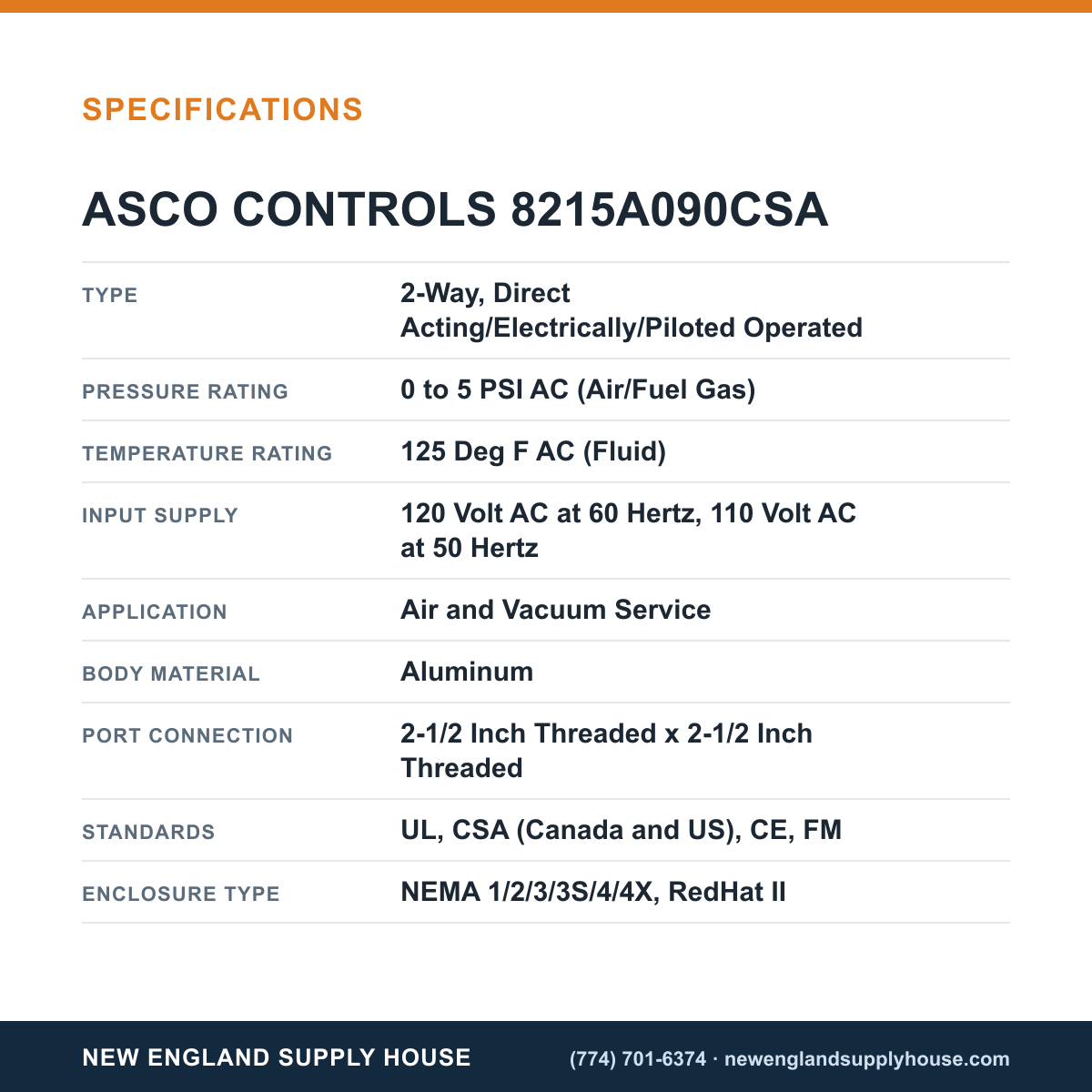

Engineered for air and vacuum service, the valve handles temperatures up to 125°F and pressures from 0 to 5 psi for air or fuel gas. It operates on 120 V AC (60 Hz) or 110 V AC (50 Hz) and draws 28.2 W, delivering a Cv of 117 for strong flow. Mounting is flexible with vertical/upright installations, and UL, CSA (Canada and US), CE, and FM listings ensure reliable, compliant operation in demanding industrial settings.

Key features

• 2-Way, NC operation for reliable on/off control
• Direct acting / electrically/piloted design for fast actuation
• Aluminum body with NEMA enclosure for rugged protection
• Media: air and fuel gas suitable for air and vacuum service
• Low power consumption 28.2 W (AC)
• High flow capacity Cv 117
• Robust internals include NBR diaphragm/seal/disc, disc holder, POM core guide, and PTFE rider ring
• Durable core & coil 305 SS core tube, 430F SS core/plugnut, copper shading coil, and precise orifice
• UL/CSA/CE/FM listed for compliant, dependable operation
