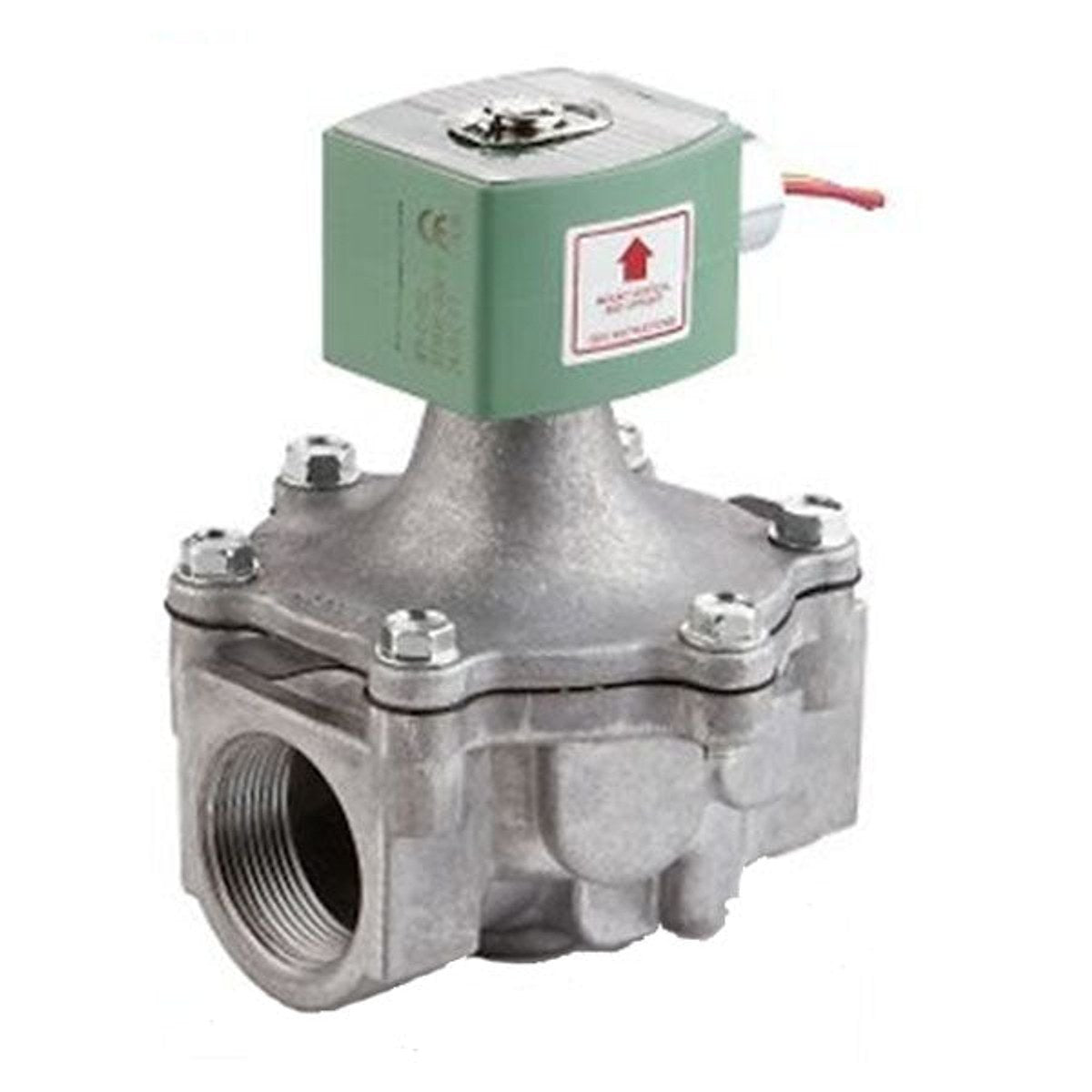

ASCO 8215B080CSA Solenoid Valve
ASCO 8215B080CSA Solenoid Valve
Low stock: 5 left
Couldn't load pickup availability
SKU:77252
View full details
![ASCO 8215B080CSA Solenoid Valve — New England Supply House spec card [NESH-SPEC-CARD-V2]](http://newenglandsupplyhouse.com/cdn/shop/files/spec-9032648655070.png?v=1782833859&width=1445)
ASCO 8215B080CSA Solenoid Valve delivers precise control for air and fuel gas systems. This 2-Way, direct-acting valve is piloted-operated for reliable performance in demanding environments, featuring a rugged aluminum body and broad NEMA enclosure options (NEMA 1/2/3/3S/4/4X, Red Hat II).
Designed for lightweight, cost-efficient operation, it accepts 120 VAC at 60 Hz or 110 VAC at 50 Hz, with a 0–25 PSI operating range and a maximum fluid temperature of 125°F. With a Cv of 60 and a power rating of 15.4 W, this valve provides solid flow while keeping energy use low. Media handled includes air and fuel gas, making it ideal for automation, process control, and vacuum and air services.
- Port connections: 2-inch threaded x 2-inch threaded
- Material & durability: Aluminum body; NBR diaphragm/seal; PTFE rider ring; 305 stainless steel core tube
- Operation & efficiency: 2-Way direct-acting, piloted-operated; 15.4 W; Cv 60
- Electrical & safety: 120 VAC/60 Hz or 110 VAC/50 Hz; UL/CSA/CE/FM approvals
- Mounting & environment: Vertical/upright mounting; NEMA 1/2/3/3S/4/4X, Red Hat II

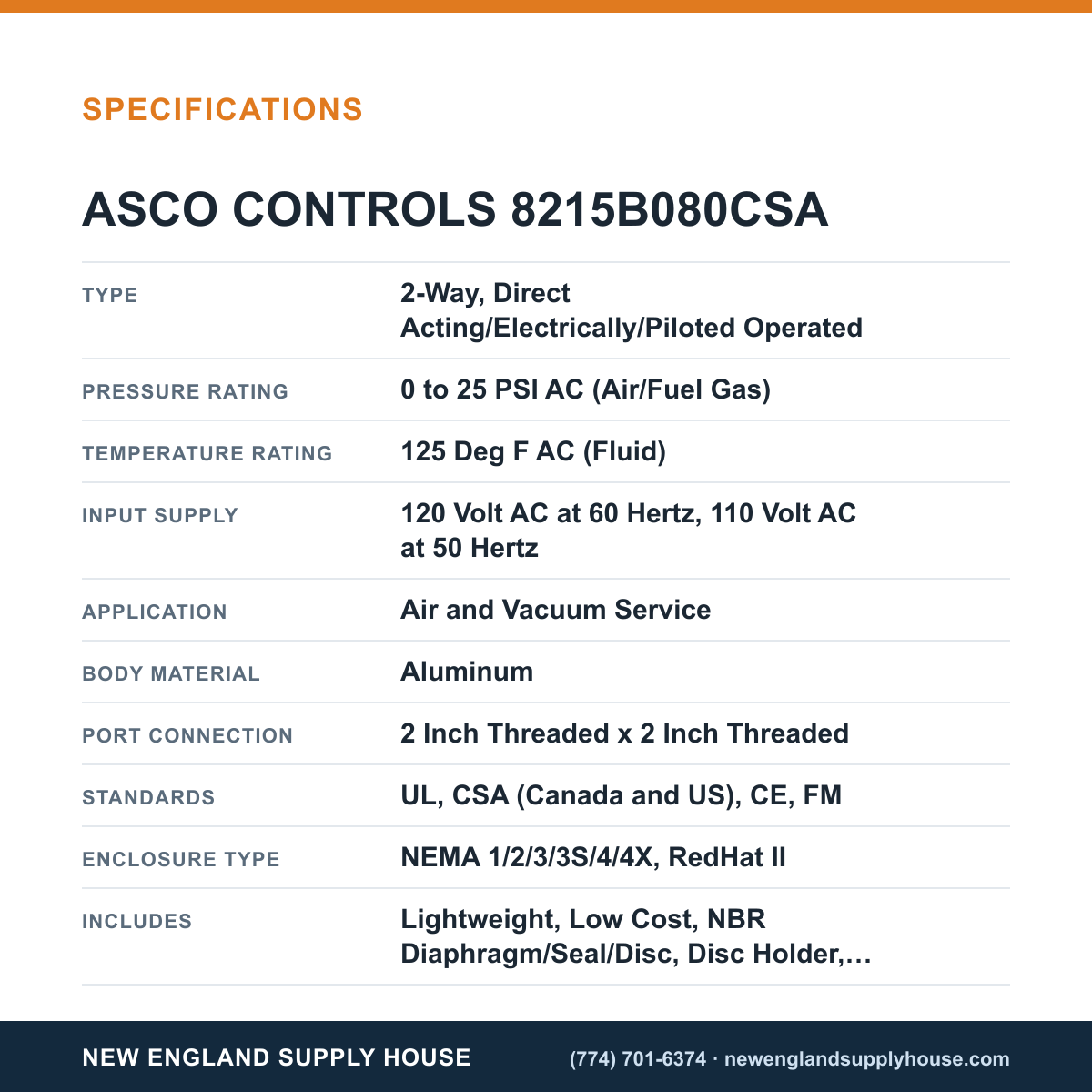

Specifications
| Type | 2-Way, Direct Acting/Electrically/Piloted Operated |
|---|---|
| Pressure Rating | 0 to 25 PSI AC (Air/Fuel Gas) |
| Temperature Rating | 125 Deg F AC (Fluid) |
| Input Supply | 120 Volt AC at 60 Hertz, 110 Volt AC at 50 Hertz |
| Application | Air and Vacuum Service |
| Body Material | Aluminum |
| Port Connection | 2 Inch Threaded x 2 Inch Threaded |
| Standards | UL, CSA (Canada and US), CE, FM |
| Enclosure Type | NEMA 1/2/3/3S/4/4X, RedHat II |
| Includes | Lightweight, Low Cost, NBR Diaphragm/Seal/Disc, Disc Holder, POM Core Guide, 305 Stainless Steel Core Tube, PTFE Rider Ring, 430F Stainless Steel Core and Plugnut, Copper Shading Coil, Orifice |
| Media | Air, Fuel Gas |
| Valve Position | NC |
| Mounting Details | Vertical/Upright Installation |
