ASCO 8215C063 Solenoid Valve

ASCO 8215C063 Solenoid Valve

$894.64 USD
$894.64 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

77258

View full details

The ASCO 8215C063 solenoid valve is a compact 2-way, direct-acting valve designed for air and fuel gas service. This electrically and piloted-operated valve offers dependable control with a robust aluminum body and 1-1/4 inch port connections, ready for inline installation.

Key features include NO (normally open) operation, proven UL/CSA/CE/FM approvals, and a suitable enclosure for harsh environments (NEMA 1/2/3/3S/4/4X, RedHat II). It supports dual voltage options: 120 VAC at 60 Hz or 110 VAC at 50 Hz, with a Cv of 33 and a power rating of 15.4 W AC.

  • Port size: 1-1/4" threaded in/out
  • Operation: 2-way, normally open (NO), direct-acting with piloted electrical control
  • Media: Air and fuel gas
  • Temperature rating: 125°F AC / 104°F DC
  • Pressure range: 0–25 PSI (AC) / 0–15 PSI (DC)
  • Materials: Aluminum body, NBR diaphragm/seal, PTFE rider ring, 305 stainless core tube
  • Applications: Air and vacuum service, compact and lightweight
  • Certifications: UL, CSA, CE, FM approvals

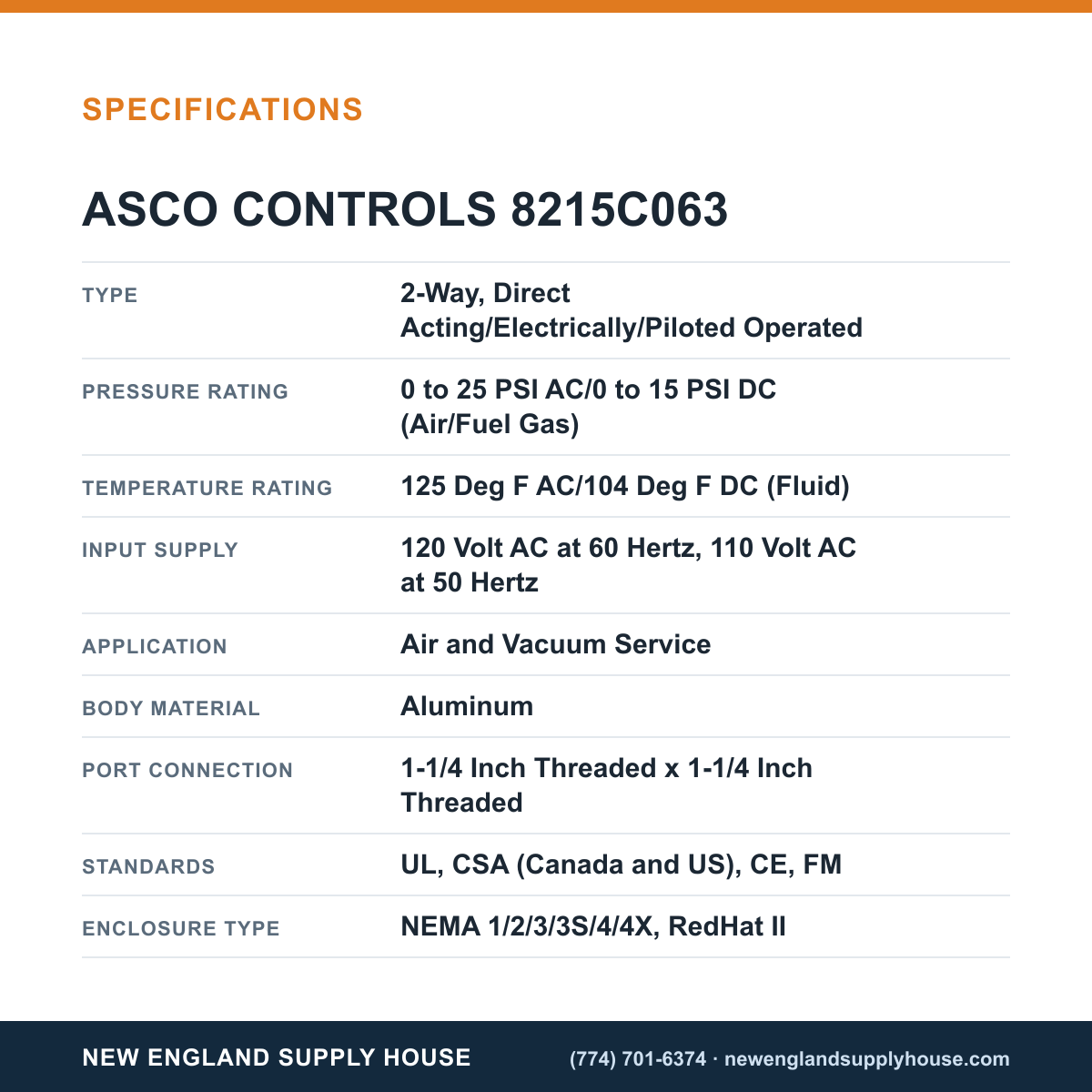

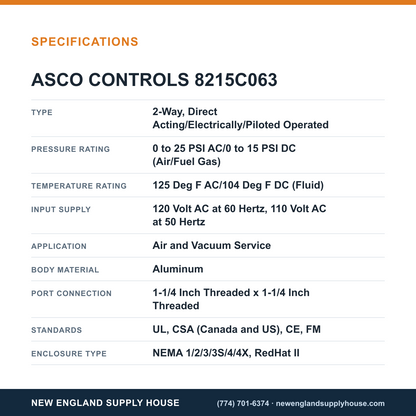

Specifications

Type2-Way, Direct Acting/Electrically/Piloted Operated
Pressure Rating0 to 25 PSI AC/0 to 15 PSI DC (Air/Fuel Gas)
Temperature Rating125 Deg F AC/104 Deg F DC (Fluid)
Input Supply120 Volt AC at 60 Hertz, 110 Volt AC at 50 Hertz
ApplicationAir and Vacuum Service
Body MaterialAluminum
Port Connection1-1/4 Inch Threaded x 1-1/4 Inch Threaded
StandardsUL, CSA (Canada and US), CE, FM
Enclosure TypeNEMA 1/2/3/3S/4/4X, RedHat II
IncludesLightweight, Low Cost, NBR Diaphragm/Seal/Disc, Disc Holder, POM Core Guide, 305 Stainless Steel Core Tube, PTFE Rider Ring, 430F Stainless Steel Core and Plugnut, Copper Shading Coil, Orifice
MediaAir, Fuel Gas
Valve PositionNO
Mounting DetailsVertical/Upright Installation
