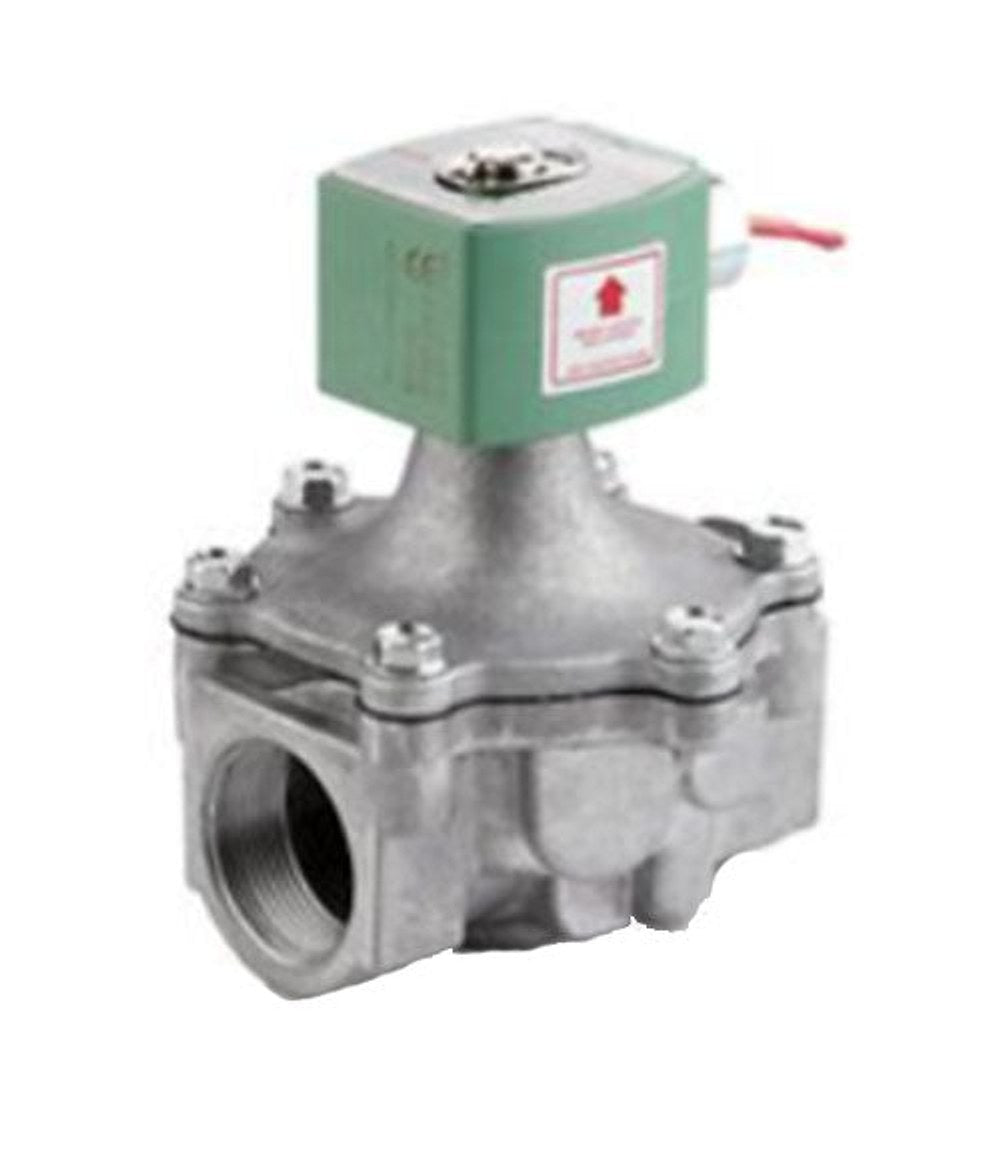

ASCO 8215G033 Solenoid Valve

ASCO 8215G033 Solenoid Valve is a compact, lightweight 2-Way, direct-acting valve designed for precise control of air and fuel gas. This electrically or piloted operated unit features 3/4 inch threaded ports, a normally open (NO) configuration, and a rugged aluminum body built for demanding environments. Engineered for versatility, it offers a robust NEMA 1/2/3/3S/4/4X (RedHat II) enclosure and is certified to UL, CSA, CE, and FM standards. The valve supports 120 VAC at 60 Hz or 110 VAC at 50 Hz, with a Cv of 4.6 and a power rating around 10.1 W (AC) / 11.6 W (DC). It handles 0–125 PSI in air and fuel gas service and operates in temperatures up to 125°F (AC) / 104°F (DC). Built with a NBR diaphragm/seal/disc, PTFE rider ring, 305 stainless steel core tube, 430F stainless steel core and plugnut, copper shading coil, and an orifice, it delivers durable, reliable performance in rugged installations. Features

• 2-Way, direct-acting valve, electrically or piloted operated
• 3/4" NPT threaded ports; Normally Open (NO) configuration
• NEMA 1/2/3/3S/4/4X enclosure; UL/CSA/CE/FM approvals
• Media: air and fuel gas; Temperature: up to 125°F AC / 104°F DC
• Cv 4.6; Power ~10.1W AC / 11.6W DC; 0–125 PSI
• Durable materials: NBR seal, PTFE rider ring, stainless steel core components
