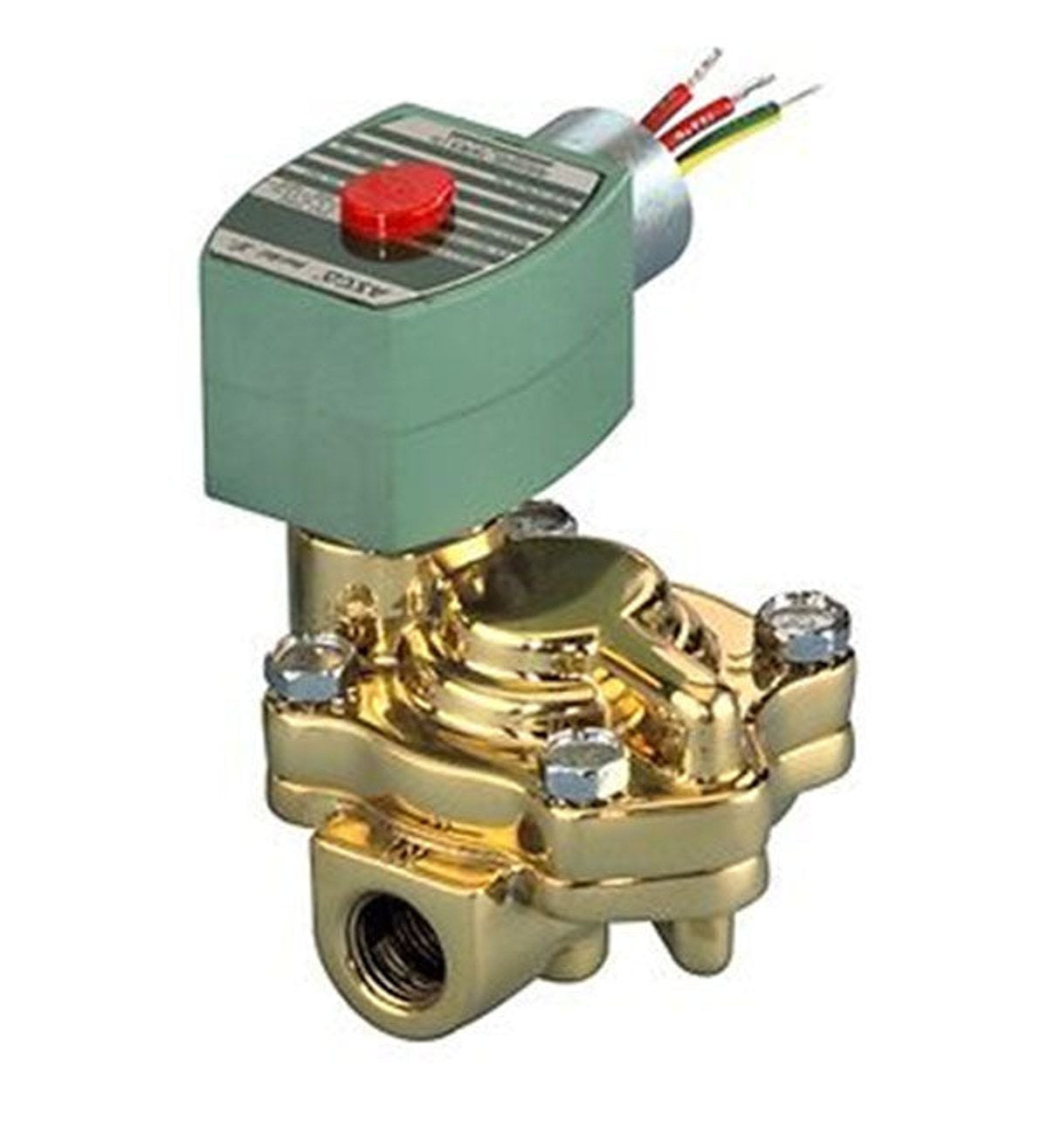

ASCO 8221G005 Solenoid Valve

The ASCO 8221G005 solenoid valve is a 2-Way, pilot-operated piston valve designed for reliable water control. This brass-bodied solenoid valve combines rugged build with precise actuation for hot water and steam service, featuring 3/4 inch ports and a normally closed (NC) configuration for dependable system shutoff.

Engineered for demanding environments, it carries a versatile enclosure with NEMA ratings (1/2/3/3S/4/4X, RedHat II) and supports vertical mounting. The valve is available in multiple electrical options: 120 VAC at 60 Hz or 110 VAC at 50 Hz, with power ratings of 6.1 W (AC) or 11.6 W (DC). Temperature and pressure specifications ensure safe operation across a range of applications, including laundry, molding, steam atomization, sterilizers, and autoclaves.

Key materials and construction provide durability and reliability in wet service. Core components include stainless steel and brass elements with NBR/PTFE seals, offering excellent resistance to water-based fluids. Certified for UL, CSA, and CE standards, the valve is a trusted choice for precision control in commercial and industrial systems.

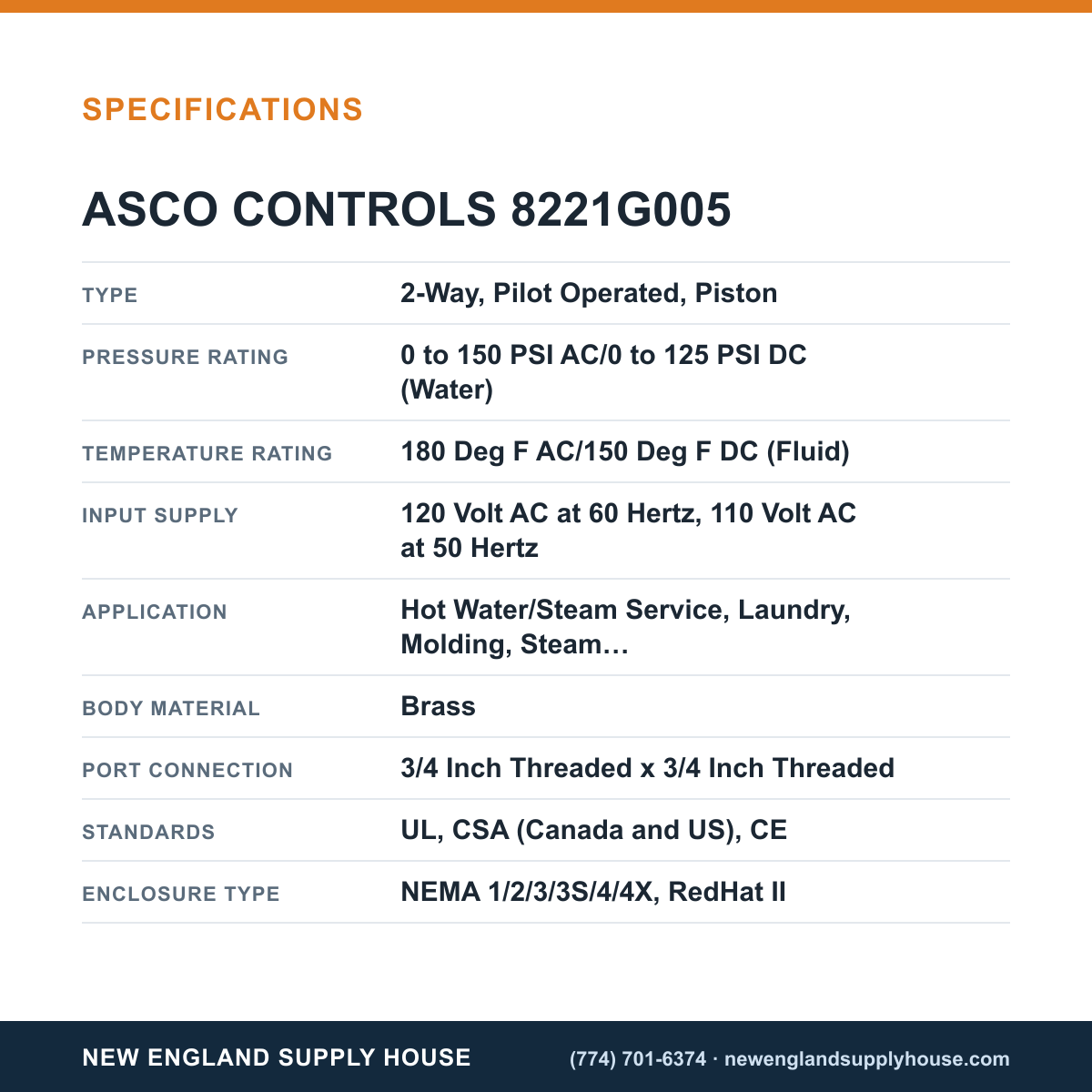

• 2-Way, pilot-operated, piston design for accurate on/off control
• Port connections 3/4 inch threaded x 3/4 inch threaded
• Normally closed (NC) configuration for safe shutdown
• Brass body with stainless steel internals and NBR/PTFE seals
• Enclosure NEMA 1/2/3/3S/4/4X, RedHat II
• Electrical options 120 VAC 60 Hz or 110 VAC 50 Hz; 6.1 W AC / 11.6 W DC
• Standards UL, CSA, CE certified
