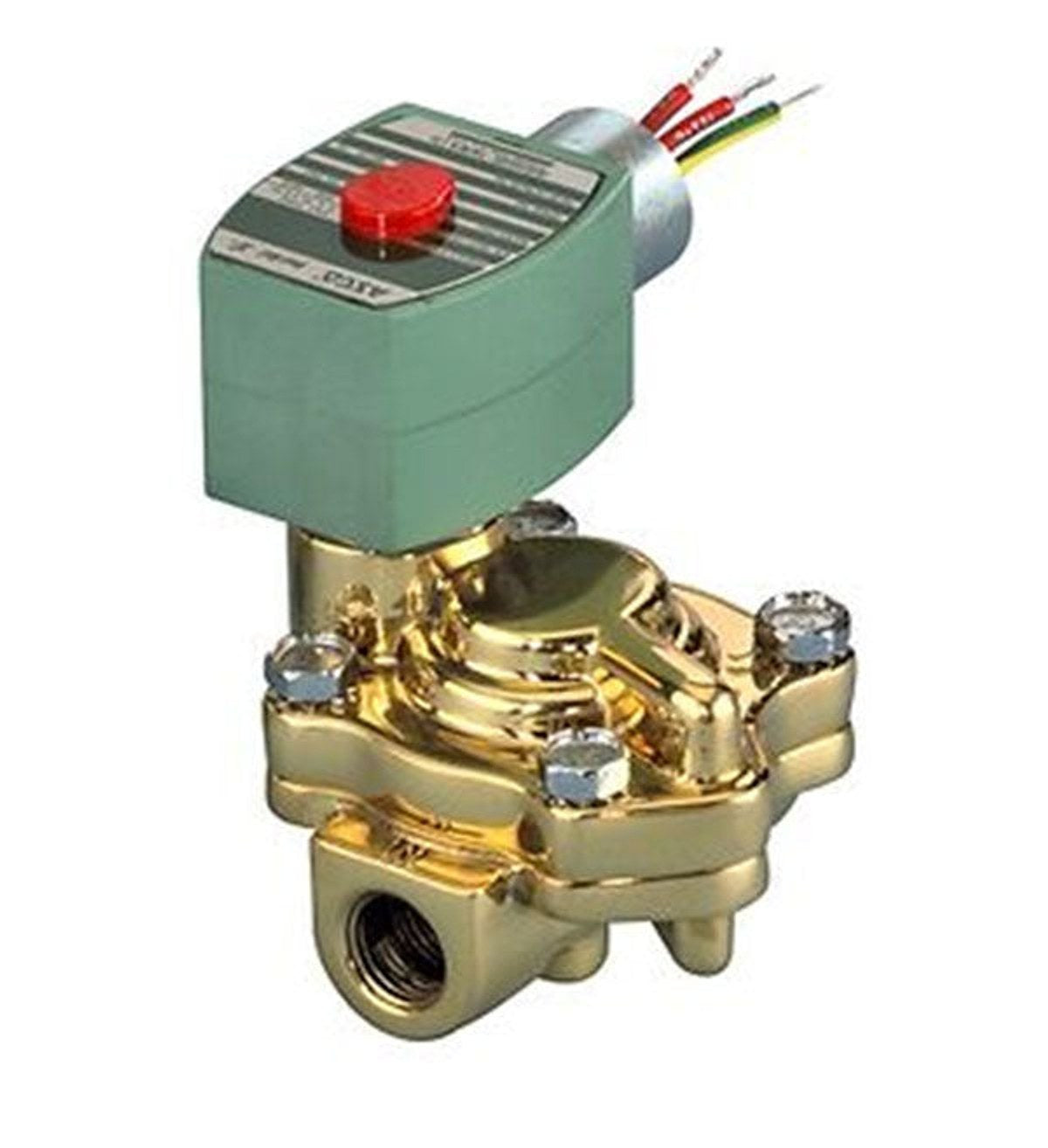

ASCO 8221G011-120/60-110/50 Solenoid Valve

The ASCO 8221G011-120/60-110/50 Solenoid Valve is a 2-Way, pilot-operated, normally closed control valve designed for water and hot water/steam service. This compact unit features a brass body and a rugged NEMA enclosure (Type RedHat II), delivering durable performance in demanding environments.

Designed for versatility, it accepts 120 VAC at 60 Hz or 110 VAC at 50 Hz, supports fluid temperatures up to 180°F (AC) / 150°F (DC), and handles water pressures from 0 to 150 PSI (AC) or 0 to 125 PSI (DC). The 1-1/2 inch threaded ports provide easy line integration, and vertical/upright mounting simplifies installation for a range of applications from laundry to steam processes.

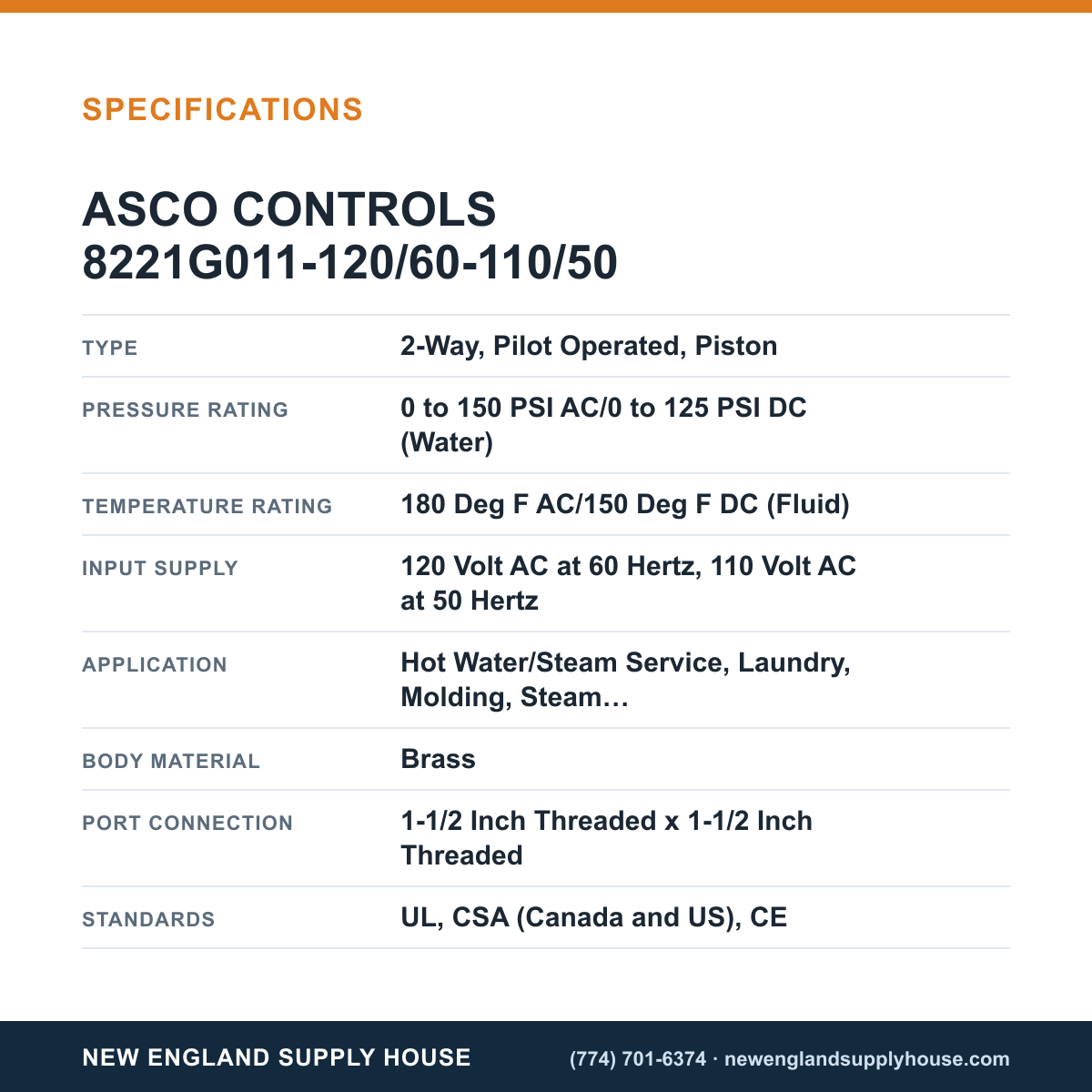

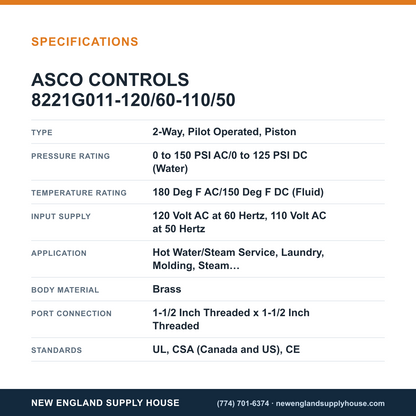

• 2-Way, pilot-operated with normally closed (NC) operation for reliable shut-off
• Port connections: 1-1/2" threaded x 1-1/2" threaded
• Brass body with 305/430/302 stainless components for strength and durability
• Enclosure: NEMA 1/2/3/3S/4/4X, RedHat II
• Coil voltages: 120 VAC @ 60 Hz or 110 VAC @ 50 Hz
• Temperature/Pressure ratings: 180°F AC / 150°F DC; 0–150 PSI AC / 0–125 PSI DC
• Media: Water (hot water/steam service)
• Inclusions: NBR disc, NBR/PTFE seal, stainless steel core tube, copper shading coil
• Certifications: UL, CSA, CE; Cv 24; Power 6.1 W (AC), 11.6 W (DC)
