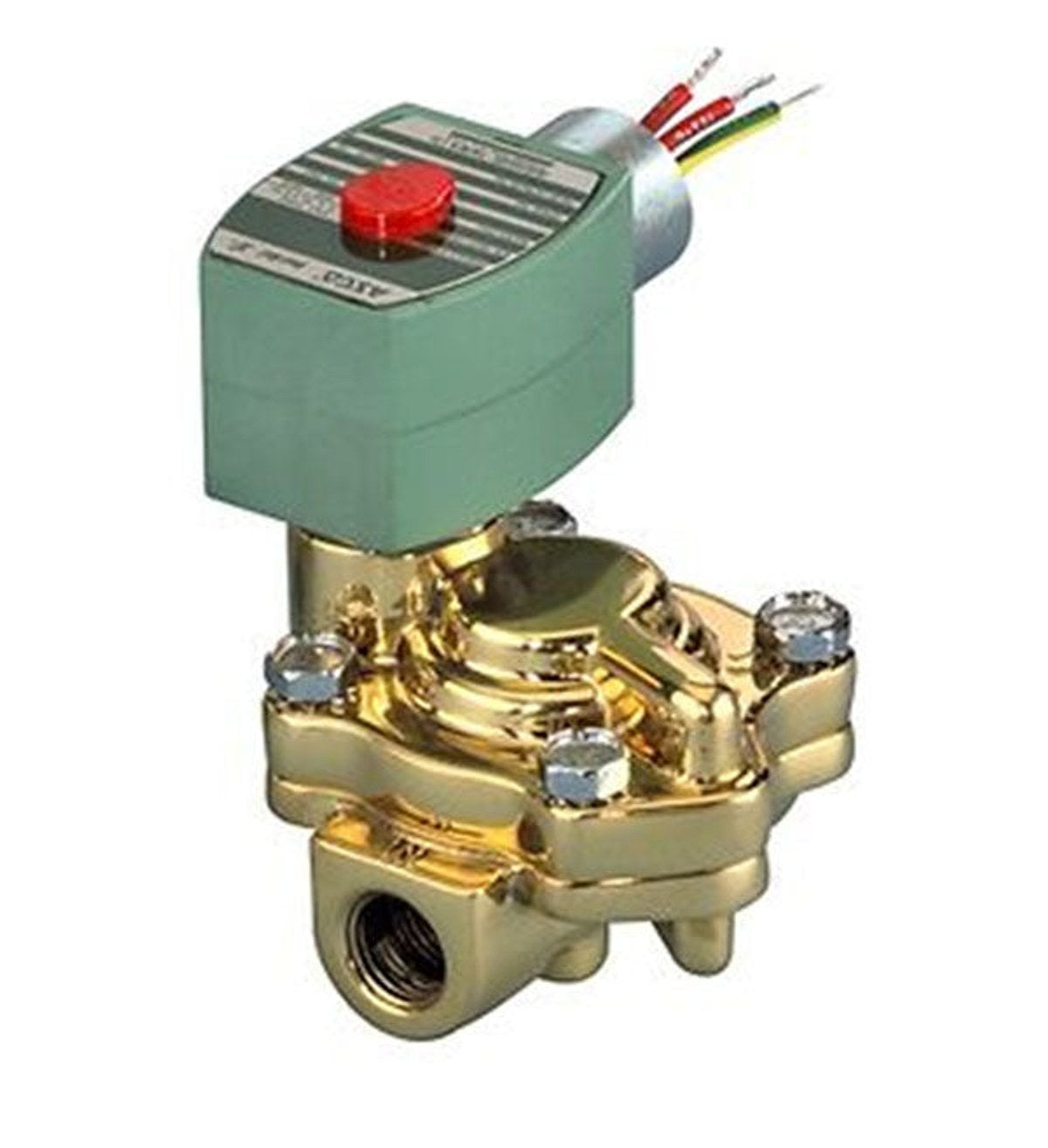

ASCO 8221G013 Solenoid Valve

Solenoid Valve technology powers precise control in water and steam systems. The ASCO 8221G013 Solenoid Valve features a rugged brass body and a 2-Way, pilot-operated piston design for reliable, NC-position operation in demanding environments. This water valve uses 2-inch threaded ports and a versatile NEMA enclosure (1/2/3/3S/4/4X, RedHat II) to fit a wide range of installations. Suitable for hot water and steam service, it supports applications from laundry to sterilization and autoclave processes, delivering dependable performance under challenging conditions. Designed for efficiency and long service life, it combines durable components and standard certifications for peace of mind. The valve operates from 120 VAC at 60 Hz or 110 VAC at 50 Hz, with a temperature rating of 180°F (AC) / 150°F (DC) and a pressure range of 0–150 PSI (AC) / 0–125 PSI (DC). Key features ensure reliability in demanding systems.

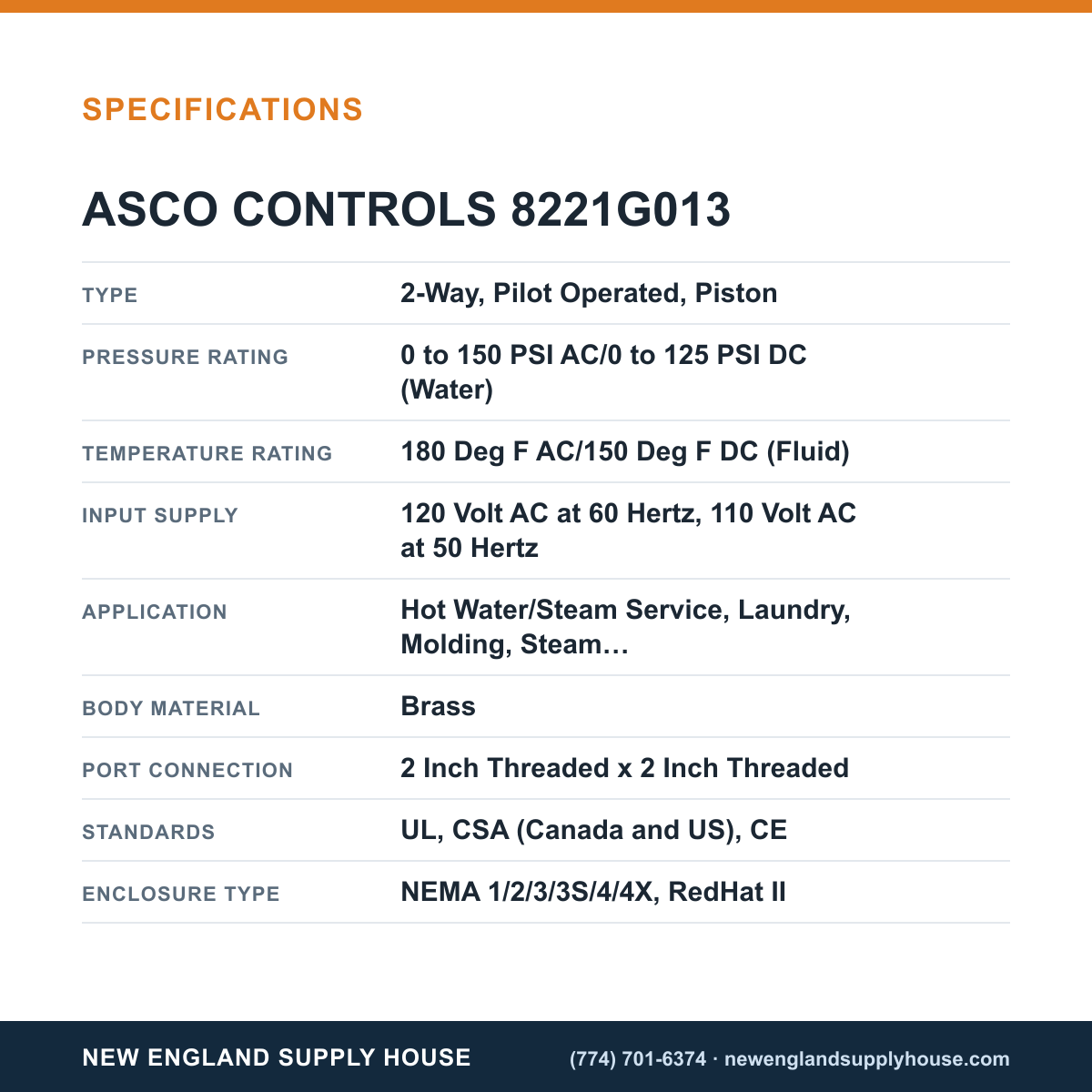

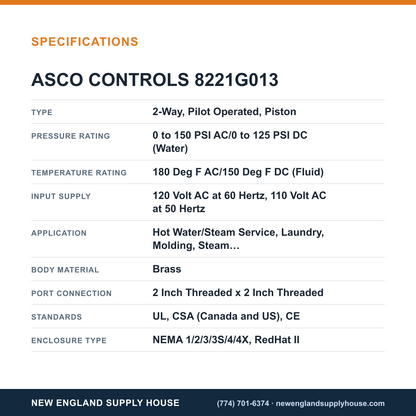

• Type: 2-Way, NC, pilot-operated piston
• Port connections: 2" Threaded x 2" Threaded
• Body: Brass; core tube 305 SS; core and plugnut 430F SS; piston in stainless steel or brass
• Media: Water
• Power: 6.1 W AC, 22.6 W DC; Cv 36; Insulation Class Type F
• Enclosure: UL, CSA, CE certified; NEMA 1/2/3/3S/4/4X (RedHat II)
• Inclusions: NBR disc; NBR/PTFE seal; copper shading coil; orifice
• Applications: Hot water/steam service, laundry, molding, steam atomization, sterilizer, autoclave
