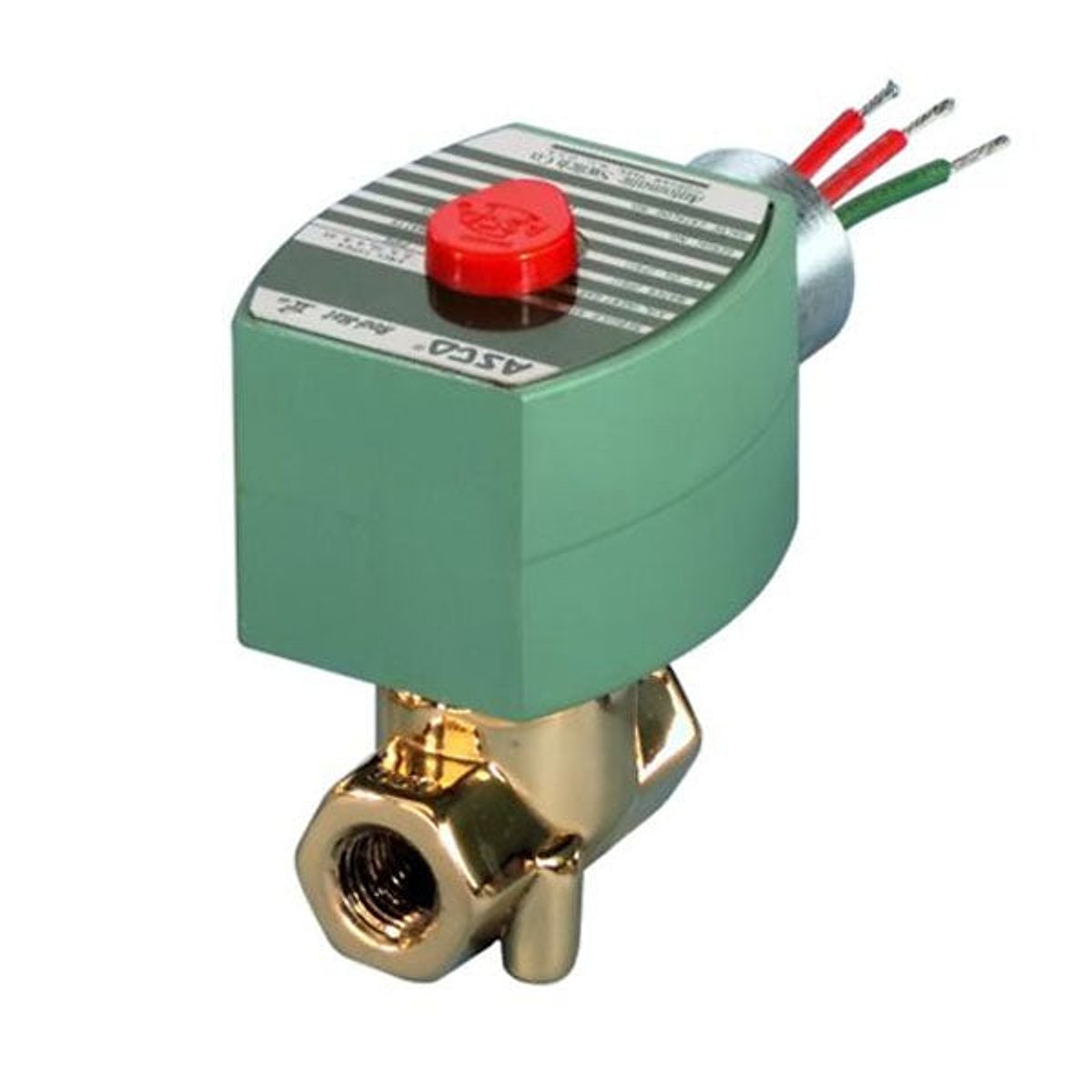

ASCO 8262H001 Solenoid Valve

The ASCO 8262H001 Solenoid Valve is a compact 2-Way, Direct Acting valve engineered for dependable control of air, inert gas, water, and oil. The valve features a brass body and a rugged NEMA-rated enclosure (1/2/3/3S/4/4X) for demanding environments, with vertical/upright mounting for easy installation. It supports 120V AC at 60 Hz or 110V AC at 50 Hz and operates up to 180°F (AC/DC) for fluids.

• 2-Way Direct Acting valve with Normally Closed (NC) position for reliable shut-off and precise control.
• Brass body with a water-tight NEMA 1/2/3/3S/4/4X enclosure for challenging settings.
• Port connections 1/8" threaded x 1/8" threaded, with vertical/upright mounting for flexible installation.
• Wide media support handles air, inert gas, water, and oil; rated up to 180°F (AC/DC).
• Electrical specs available in 120V AC 60 Hz or 110V AC 50 Hz; power 6.1W (AC) / 10.6W (DC); Class F insulation.

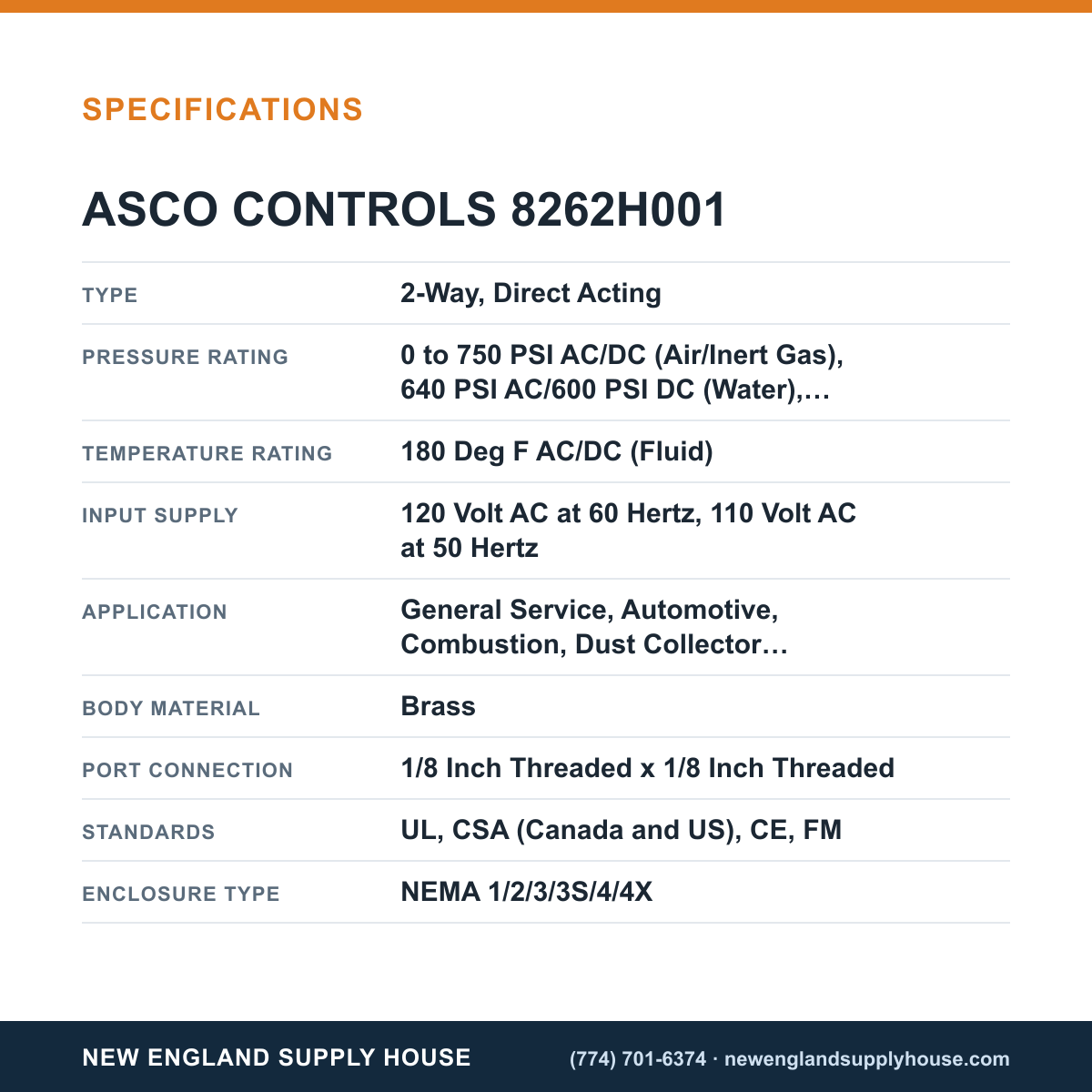

• Pressure and flow 0–750 PSI (air/inert gas); 640 PSI water; 725 PSI oil; Cv 0.06.
• Robust construction includes NBR seal and disc, 305 stainless steel core tube, 430F stainless steel core/plugnut, 302 stainless steel spring, copper/silver shading coil, and precise orifice.
• Certifications UL, CSA (US/Canada), CE, FM listed for broad compatibility and safety.
