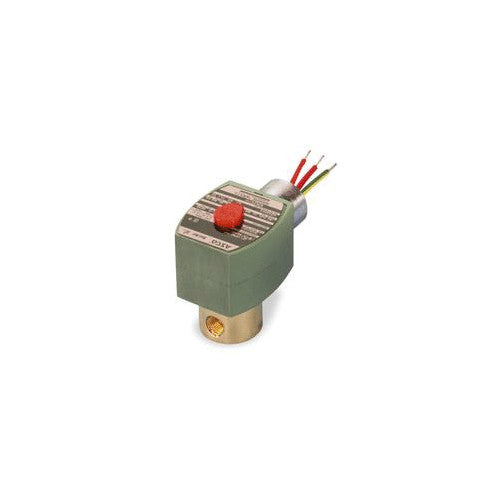

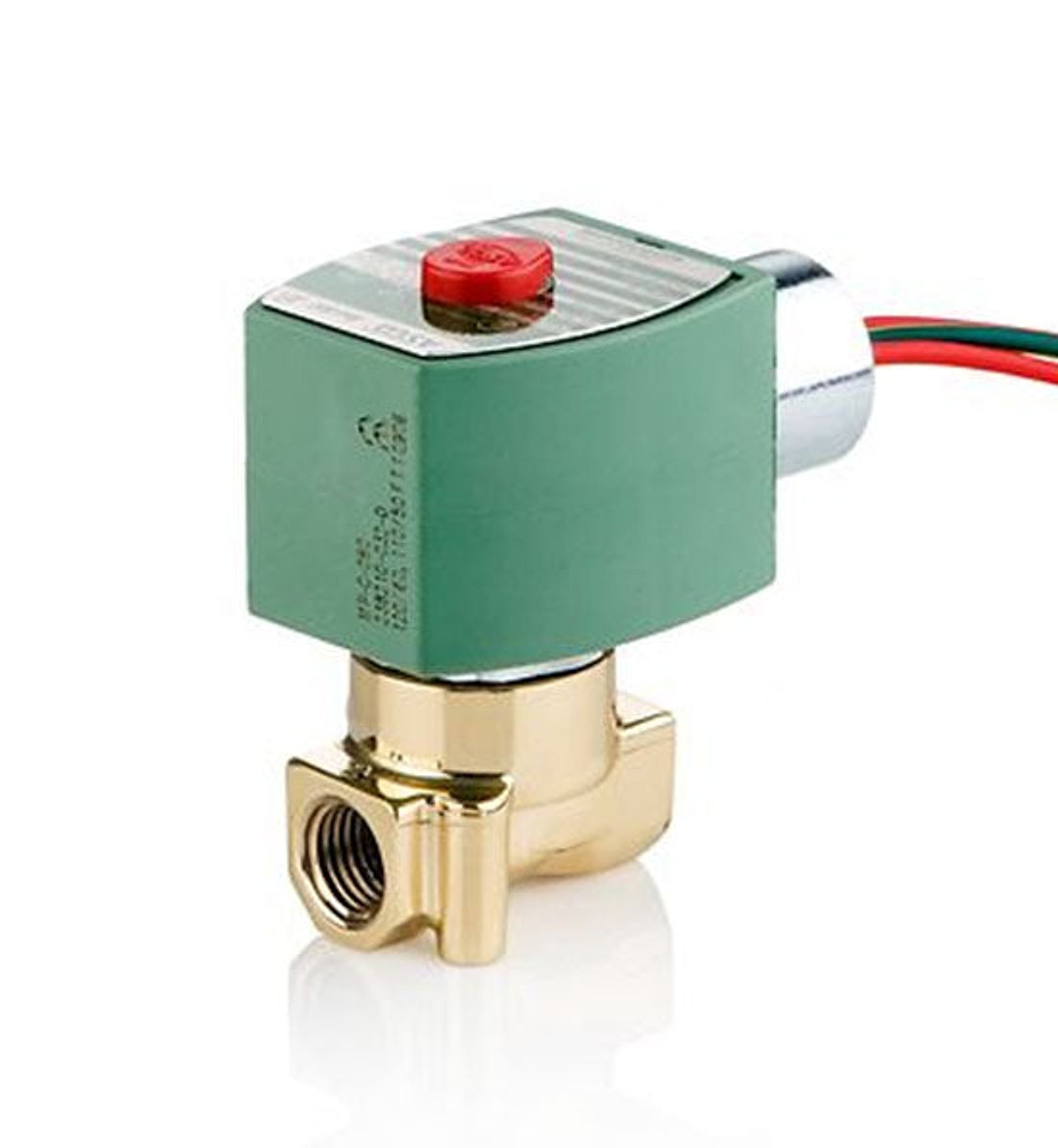

ASCO 8262H202 Solenoid Valve, 1/4", 120V

ASCO 8262H202 Solenoid Valve is a robust 2-way, direct-acting valve designed for demanding applications. With 1/4 inch threaded ports and a normally closed (NC) configuration, this brass-bodied solenoid valve delivers precise control for air, water, oil, and inert gas.

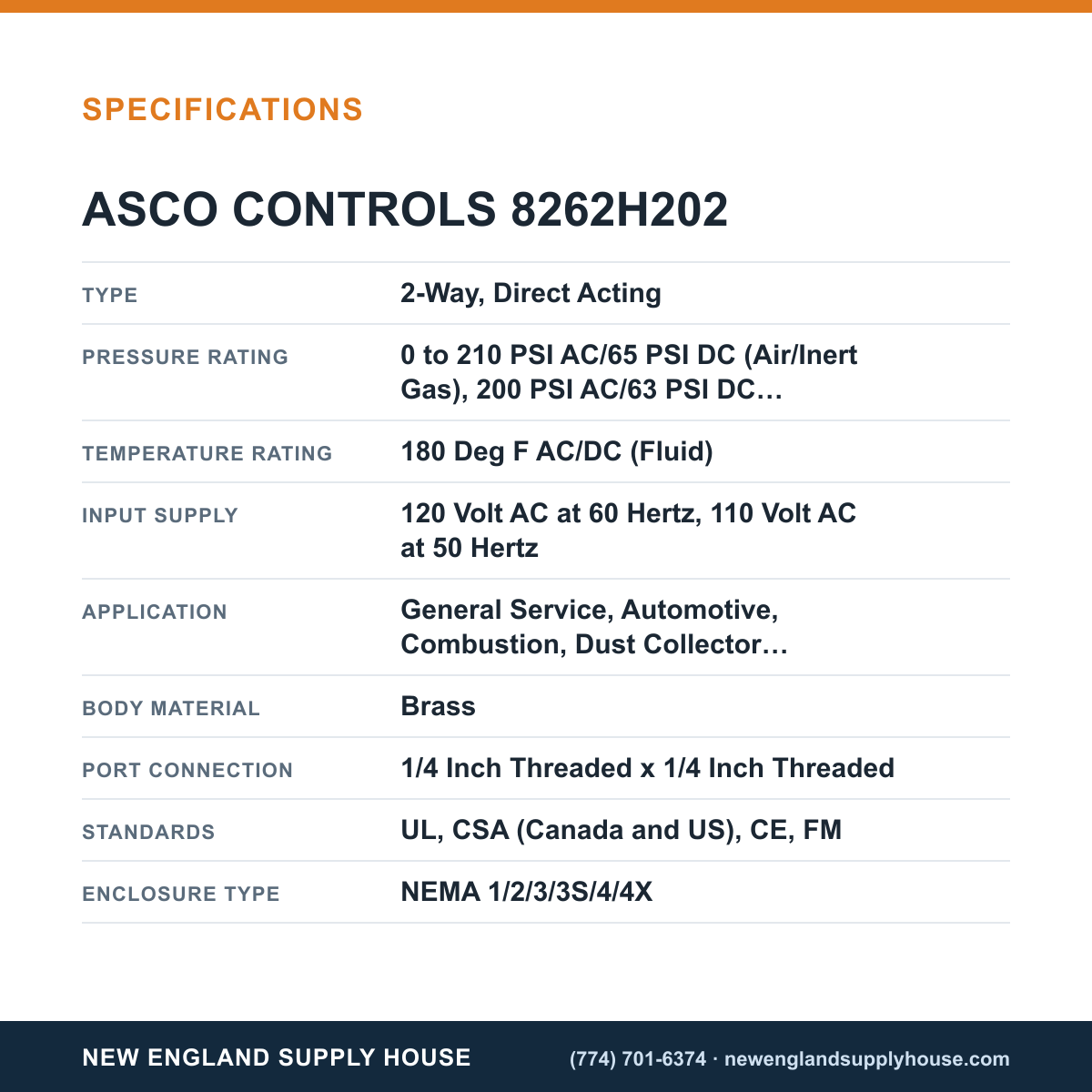

Built for harsh environments, the valve features a Water Tight seal with NBR, a durable 305 stainless steel core tube, 430F stainless steel core and plugnut, and a 302 stainless steel spring. The enclosure supports NEMA 1/2/3/3S/4/4X ratings, ensuring reliable operation in general service, automotive, heating equipment, and dust collection systems. It runs on 120 V AC / 60 Hz or 110 V AC / 50 Hz, and withstands temperatures up to 180°F. Pressure ranges vary by media: 0–210 PSI for air/inert gas (AC) and up to 65 PSI (DC); 200 PSI (AC) / 63 DC for water; 145 PSI (AC) / 63 DC for oil.

• 2‑way, NC, direct-acting design for reliable shutoff and fast response.
• 1/4 inch port connections for easy plumbing and compatibility.
• Media handled: air, inert gas, water, oil.
• Voltage options: 120 VAC / 60 Hz or 110 VAC / 50 Hz.
• Power rating: 10.1 W (AC), 11.6 W (DC).
• Cv value: 0.52.
• Construction: Water tight with NBR seal, stainless steel cores, copper/silver shading coil.
• Certifications: UL, CSA, CE, FM.

Mounting is vertical/upright, and the valve is suitable for general service, automotive, combustion, heating equipment, and other industrial applications.
