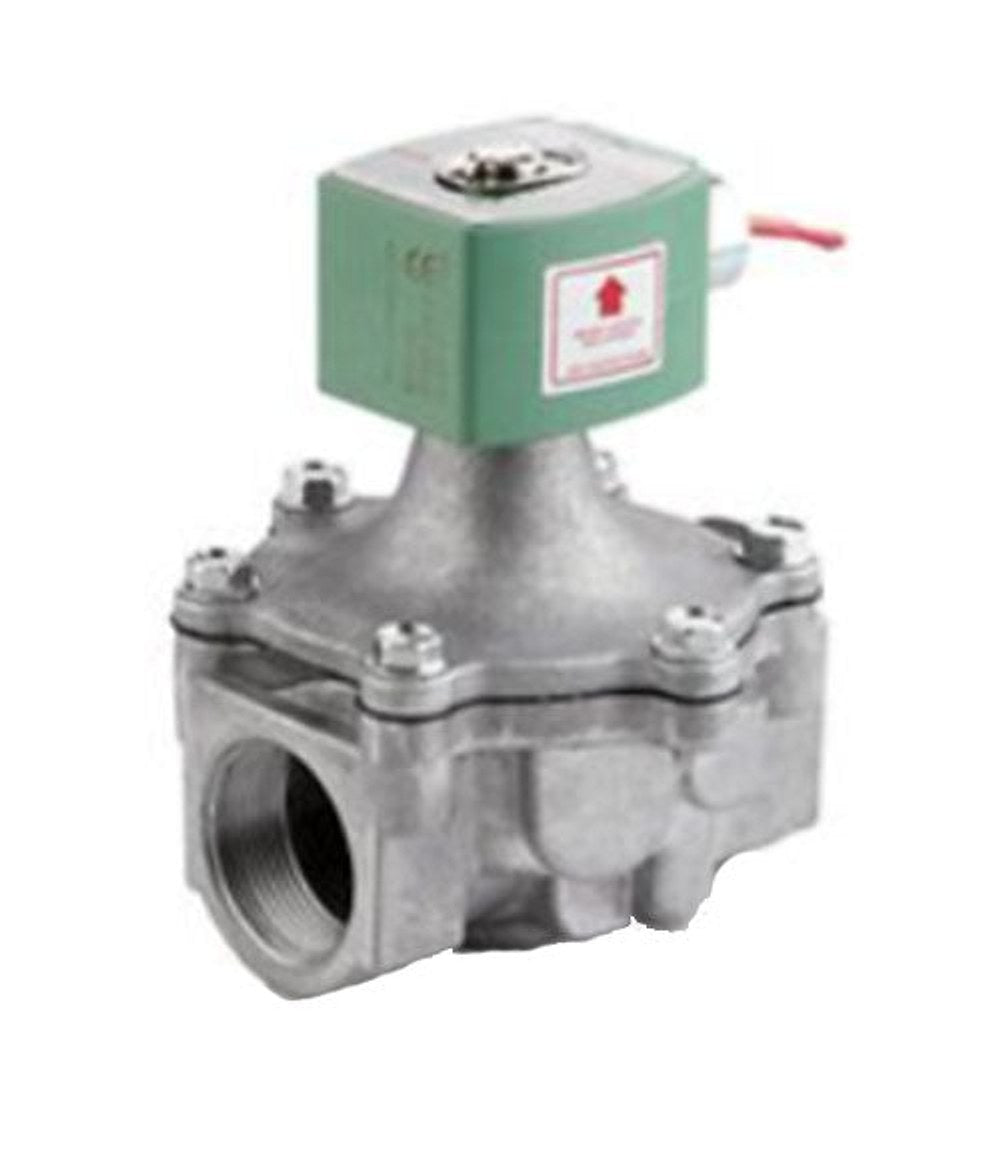

ASCO EF8215G030 Solenoid Valve

The ASCO EF8215G030 Solenoid Valve is a 2-Way, direct-acting/electrically/piloted operated control valve designed for reliable shut-off in air and fuel gas lines. It features 3/4 inch threaded port connections and a normally closed (NC) configuration, ideal for compact, space-saving installations. The rugged aluminum body is offered in a broad RedHat II enclosure with UL, CSA, CE, and FM approvals for demanding environments.

Equipped for common industrial power and frequency, it accepts 120 VAC at 60 Hz or 110 VAC at 50 Hz, with a Cv of 5.1 and a modest power draw (10.1 W AC / 11.6 W DC). Temperature tolerance is listed as 125°F for AC operation and 104°F for DC fluids, while pressure support ranges from 0 to 50 psi (AC) or 0 to 25 psi (DC) for air or fuel gas. Mounting is vertical/upright for easy integration.

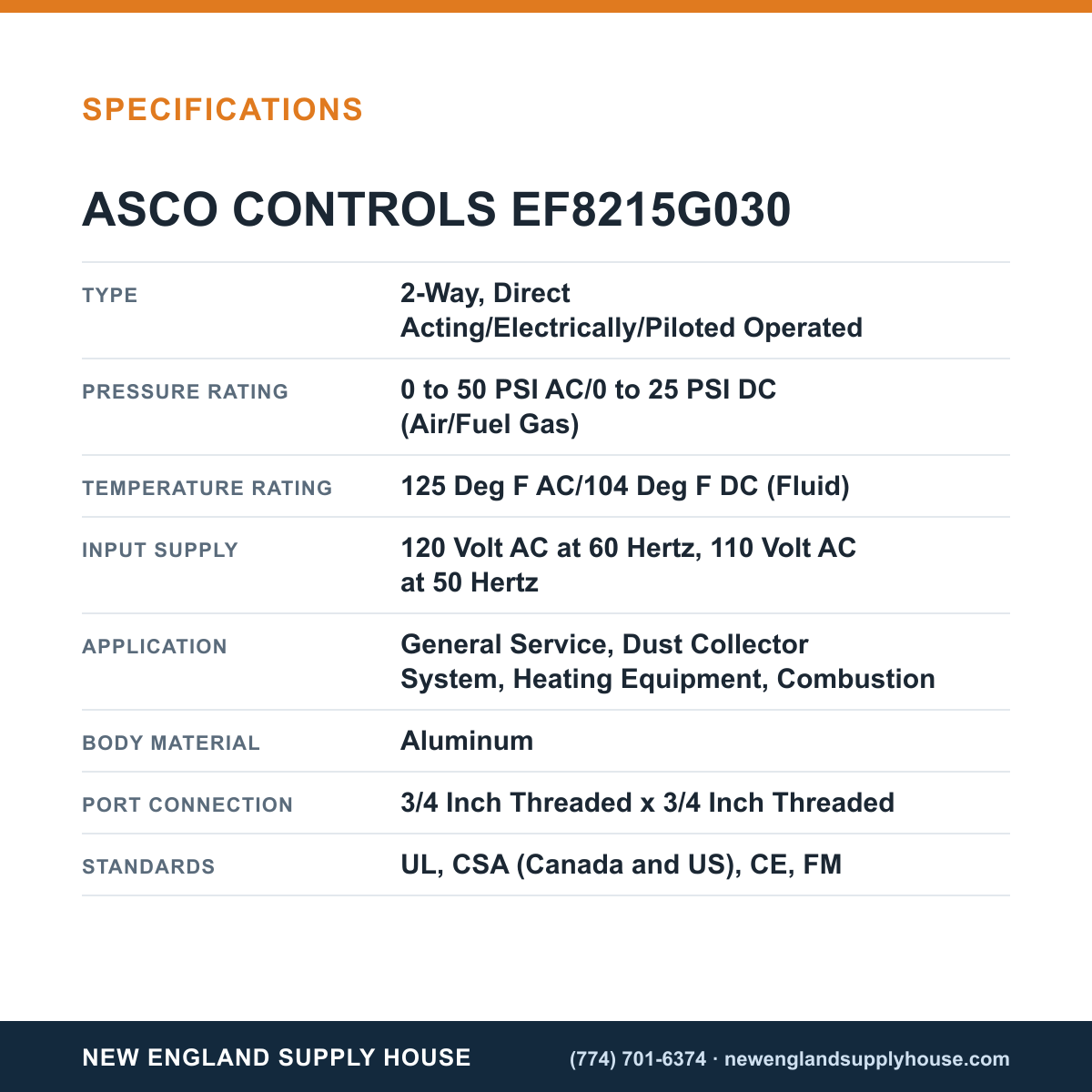

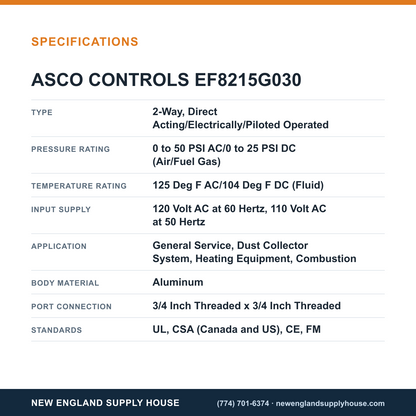

• Port Connection: 3/4" Threaded x 3/4" Threaded
• Configuration: 2-Way, Normally Closed (NC)
• Operation: Direct Acting / Electrically / Piloted
• Enclosure & Body: Aluminum body; RedHat II enclosure (NEMA 1/2/3/3S/4/4X/6/6P/7/9)
• Voltage & Power: 120 VAC @ 60 Hz or 110 VAC @ 50 Hz; 10.1 W AC / 11.6 W DC
• Media & Applications: Air, Fuel Gas; General Service, Dust Collection, Heating, Combustion
• Performance & Materials: Cv 5.1; Temperature 125°F AC / 104°F DC; Pressure 0–50 psi AC / 0–25 psi DC; NBR seal/diaphragm/disc; multiple stainless steel and PTFE components
• Standards: UL, CSA, CE, FM
