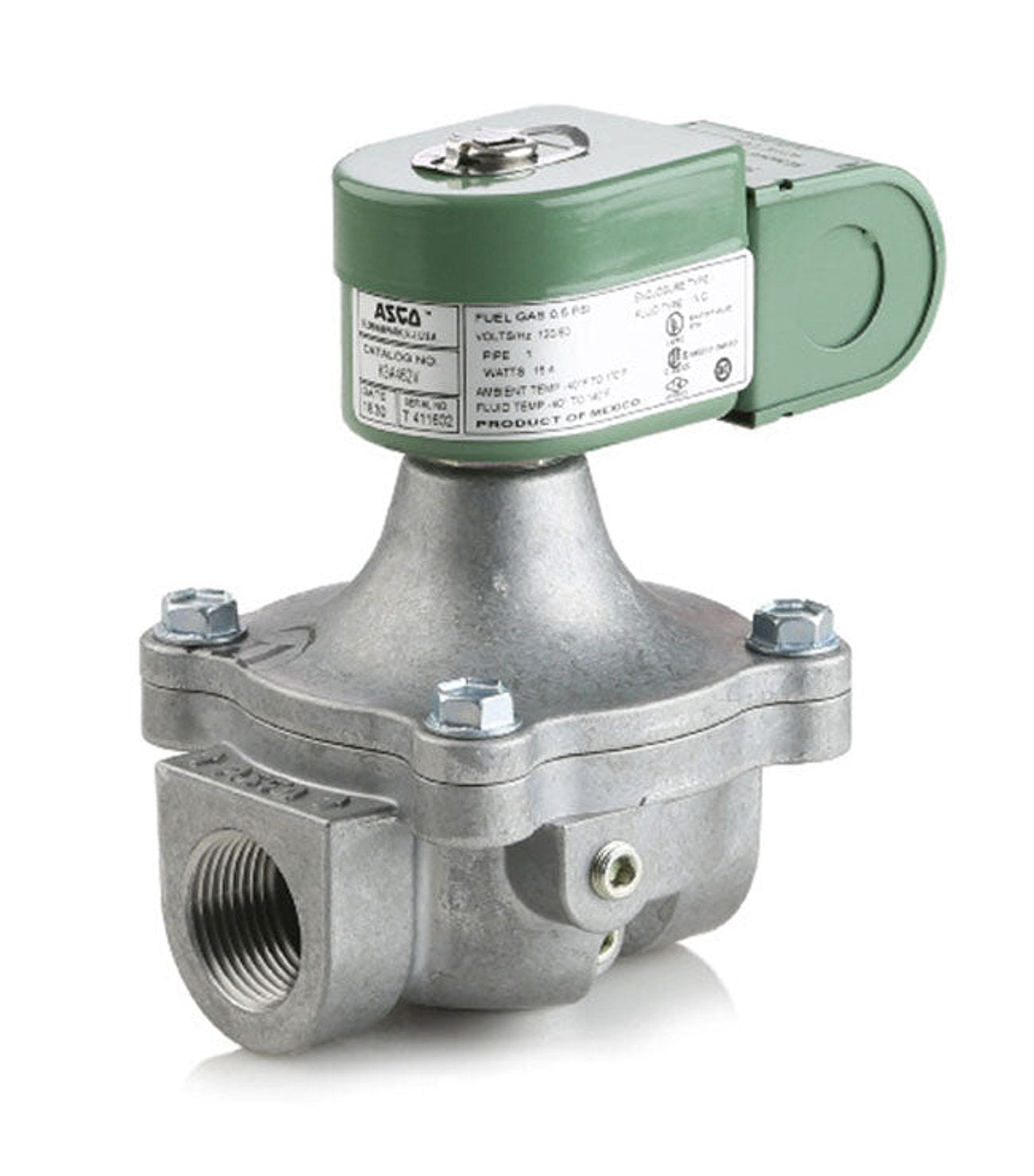

ASCO K3A462V Gas Shut-Off Valve

ASCO K3A462V Gas Shut-Off Valve delivers precise, reliable control for commercial and industrial gas burners. This 2-way, low-pressure direct-acting valve is piloted operated, featuring 1 inch threaded inlet and outlet connections and a normally closed (NC) configuration.

With a rugged die-cast aluminum body housed in a NEMA 1 enclosure, it runs on 120 VAC at 60 Hz and is rated for fuel gas at 0 to 0.5 psi. The valve is designed for combustion, heating equipment, and other industrial gas burner applications, and carries UL, CSA, and FM listings. Temperature rating is 77°F (fluid).

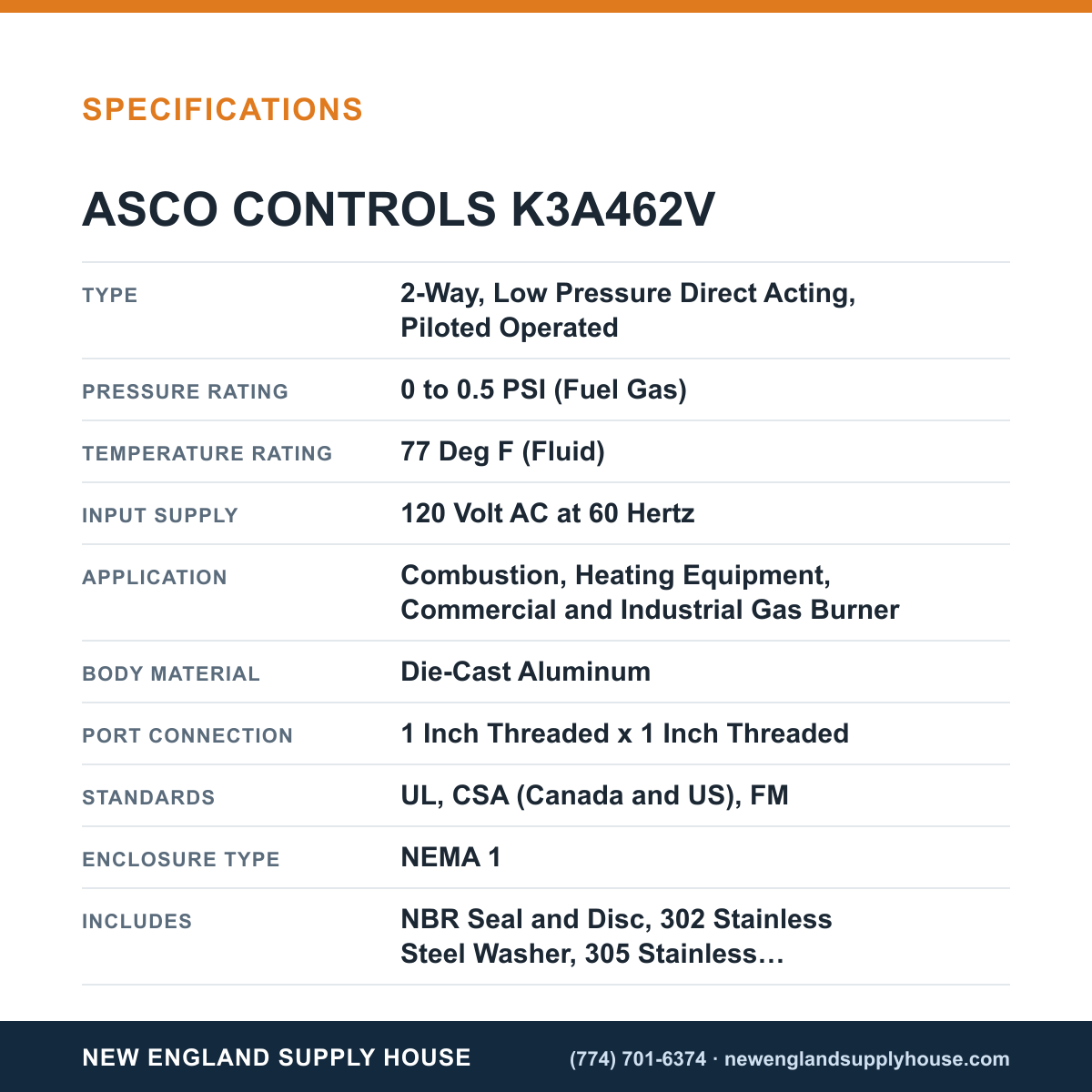

• Port connections – 1" NPT x 1" NPT
• Valve type – 2-way, NC, low-pressure direct acting; piloted operated
• Materials – die-cast aluminum body; NBR seal and disc; stainless steel core tube and springs (302/305/430F)
• Electrical – 120 VAC, 60 Hz; power rating 10.5 W
• Performance – Cv 14; operates safely at 0–0.5 psi fuel gas
• Enclosure – NEMA 1 suitable for commercial/industrial environments
• Media – fuel gas
• Standards – UL, CSA (US and Canada), FM listed
