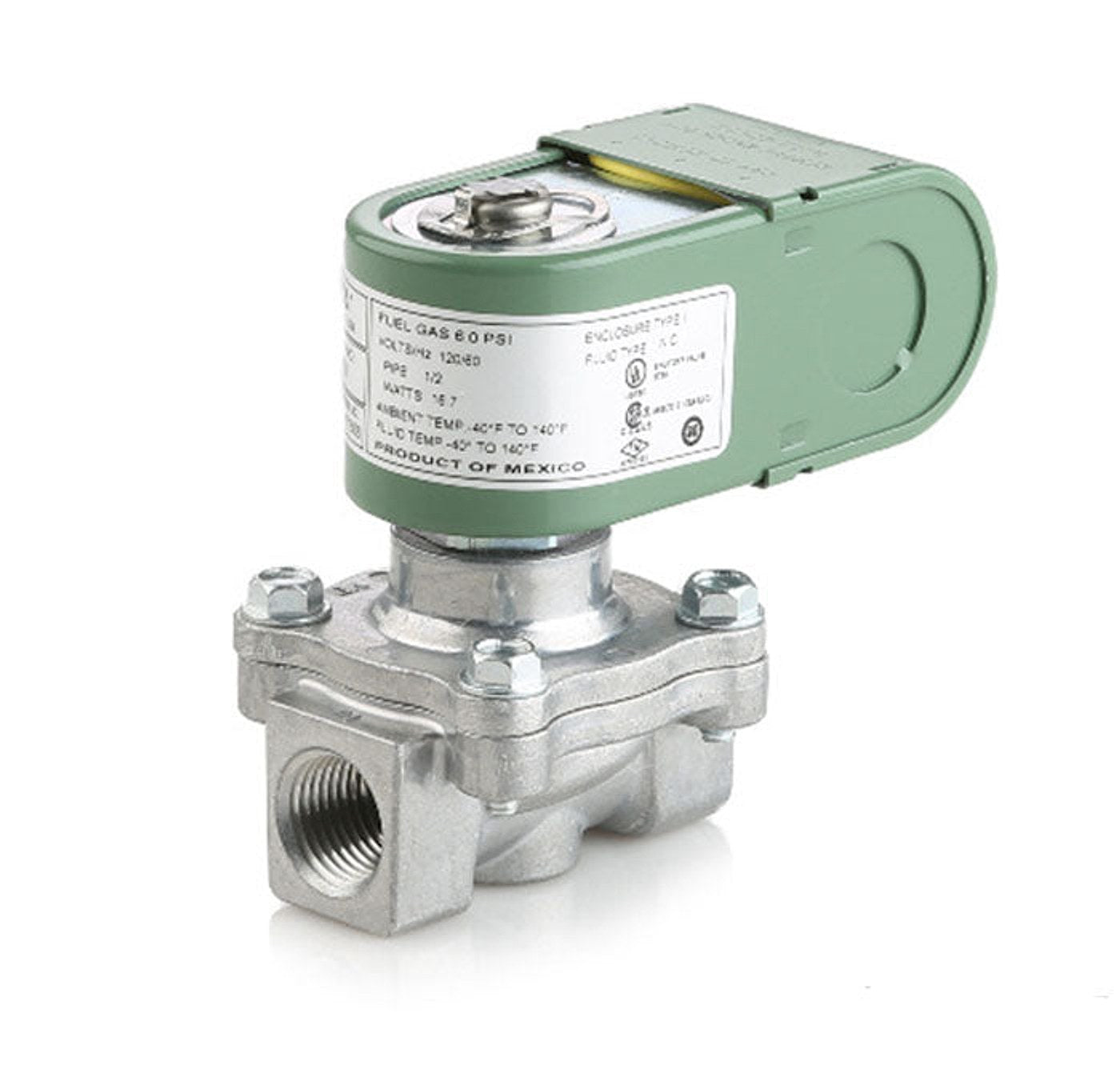

ASCO K3A532V Gas Shut-Off Valve
ASCO K3A532V Gas Shut-Off Valve
Low stock: 2 left
Couldn't load pickup availability
SKU:68649
View full details
![ASCO K3A532V Gas Shut-Off Valve — New England Supply House spec card [NESH-SPEC-CARD-V2]](http://newenglandsupplyhouse.com/cdn/shop/files/spec-9032645542110.png?v=1782833807&width=1445)
ASCO K3A532V Gas Shut-Off Valve is a 2-way, high-pressure direct-acting, piloted-operated valve designed for reliable shut-off in combustion and heating equipment. With 3/8" threaded x 3/8" threaded port connections and a normally closed (NC) configuration, it provides precise control for fuel gas systems in commercial and industrial settings.
Constructed with a die-cast aluminum body and a NEMA 1 enclosure, this valve is built for indoor installation. It operates on 120V AC at 60 Hz, draws 16.7 W, and handles 0 to 10 PSI fuel gas. The valve supports horizontal or upright mounting and meets UL, CSA, and FM standards for safe operation in demanding environments.
Key materials and design features ensure longevity and reliability in daily use.
- 2-Way, high-pressure direct-acting, piloted-operated
- Ports: 3/8" threaded x 3/8" threaded
- Normally Closed (NC) valve configuration
- Die-cast aluminum body, NEMA 1 enclosure
- Media: Fuel gas; temperature rating 77 Deg F
- UL, CSA (Canada/US), FM listed; Cv 4; 16.7 W

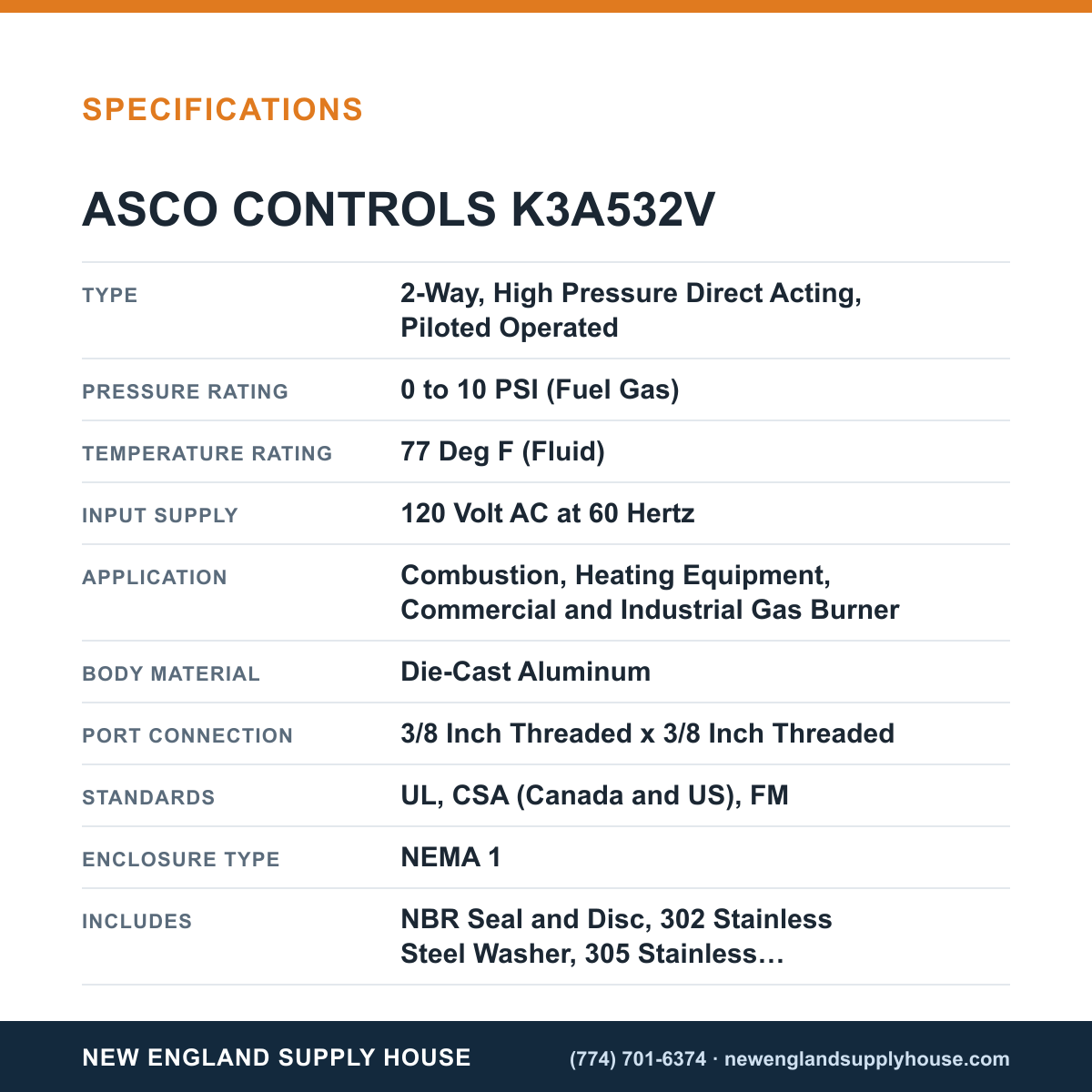

Specifications
| Type | 2-Way, High Pressure Direct Acting, Piloted Operated |
|---|---|
| Pressure Rating | 0 to 10 PSI (Fuel Gas) |
| Temperature Rating | 77 Deg F (Fluid) |
| Input Supply | 120 Volt AC at 60 Hertz |
| Application | Combustion, Heating Equipment, Commercial and Industrial Gas Burner |
| Body Material | Die-Cast Aluminum |
| Port Connection | 3/8 Inch Threaded x 3/8 Inch Threaded |
| Standards | UL, CSA (Canada and US), FM |
| Enclosure Type | NEMA 1 |
| Includes | NBR Seal and Disc, 302 Stainless Steel Washer, 305 Stainless Steel Core Tube, 430F Stainless Steel Core and Plugnut, Core Guide, 302F Stainless Steel Spring, Copper Shading Coil, Cork Body Gasket, Zinc Plated Steel Pipe Plug, Orifice |
| Media | Fuel Gas |
| Valve Position | NC |
| Mounting Details | Horizontal/Upright Installation |
