ASCO S262SH02N3FJ5 Gas Vent Valve, 1", 120V
ASCO S262SH02N3FJ5 Gas Vent Valve, 1", 120V
Low stock: 2 left
Couldn't load pickup availability
- Purchase Orders & Tax-Exempt Welcome Contractors, municipalities, schools and businesses: email a PO, or send your exemption certificate once and tax comes off every order.
SKU:68757
View full details
![ASCO S262SH02N3FJ5 Gas Vent Valve — New England Supply House spec card [NESH-SPEC-CARD-V2]](http://newenglandsupplyhouse.com/cdn/shop/files/spec-9032646459614.png?v=1782833820&width=1445)
![ASCO S262SH02N3FJ5 Gas Vent Valve specifications — New England Supply House [NESH-SPECTABLE-V1]](http://newenglandsupplyhouse.com/cdn/shop/files/specs-9032646459614.png?v=1790683742&width=1445)

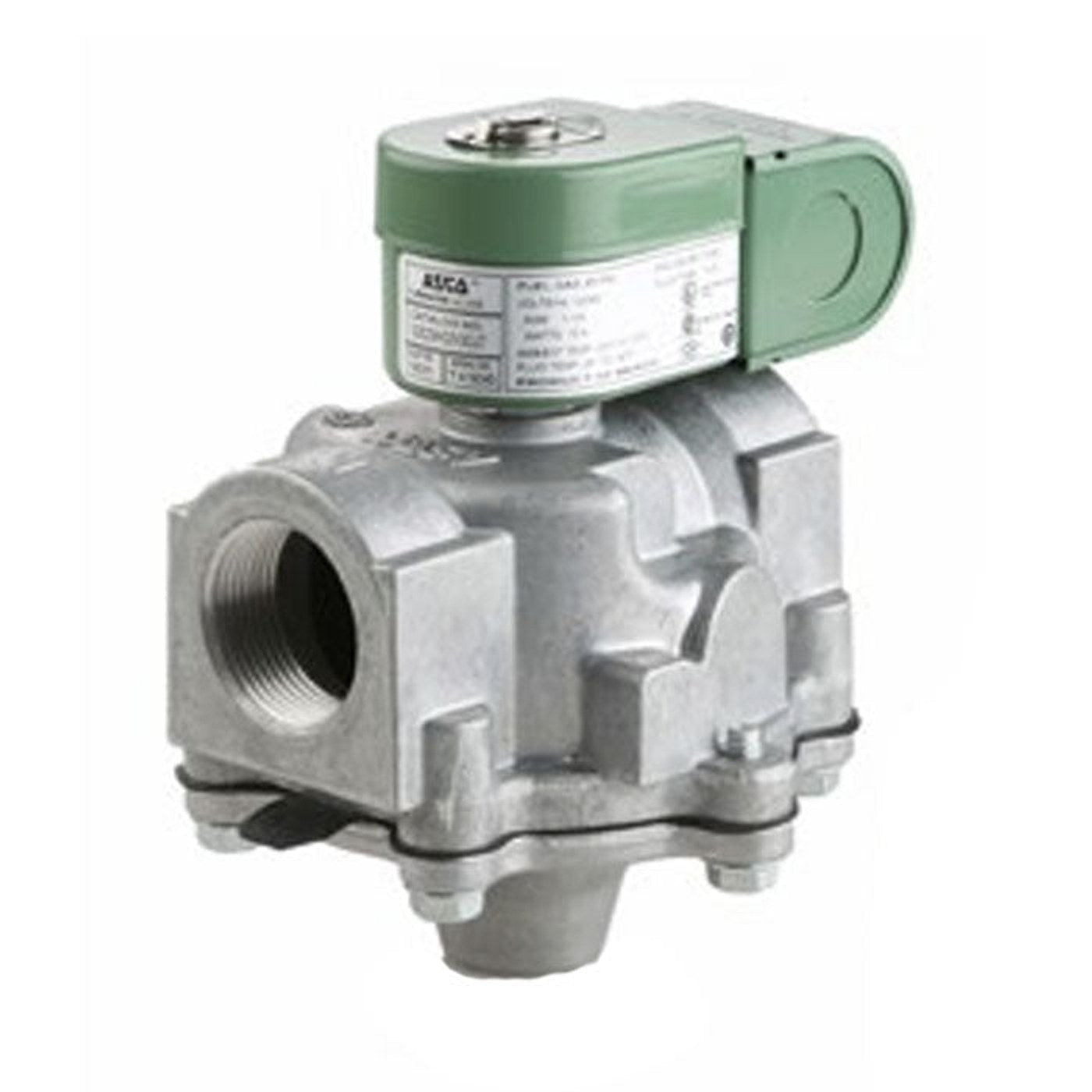

The ASCO S262SH02N3FJ5 Gas Vent Valve is a 2-Way, pilot-operated diaphragm valve designed for reliable fuel gas venting in combustion and heating equipment. With 1-inch threaded ports and a rugged aluminum body, this valve delivers precise control and durable performance in demanding industrial environments.
Designed for safety and reliability, it operates on 120 VAC at 60 Hz and consumes 20 watts, simplifying panel wiring and control. It supports fuel gas with a 0–25 PSI range and accommodates vertical, upright, or horizontal installations for flexible mounting. Built with an aluminum body, NEMA 1 enclosure, and a robust diaphragm pilot mechanism, the S262SH02N3FJ5 delivers consistent venting performance. UL and CSA approved, it meets industry standards for fuel gas safety and control reliability, with an 18 Cv rating for efficient flow in heating and combustion equipment.
- 2-Way, pilot-operated diaphragm design
- Port connections: 1" NPT x 1" NPT
- Valve position: Normally Open (NO)
- Enclosure: NEMA 1; Body: Aluminum
- Electrical: 120 VAC, 60 Hz; 20 W
- Media: Fuel gas; Pressure: 0–25 PSI
- Mounting: Vertical/Upright/Horizontal installation
- Flow: Cv 18
- Materials: NBR seal and disc; stainless steel core tube, disc, spring
- Standards: UL, CSA listed

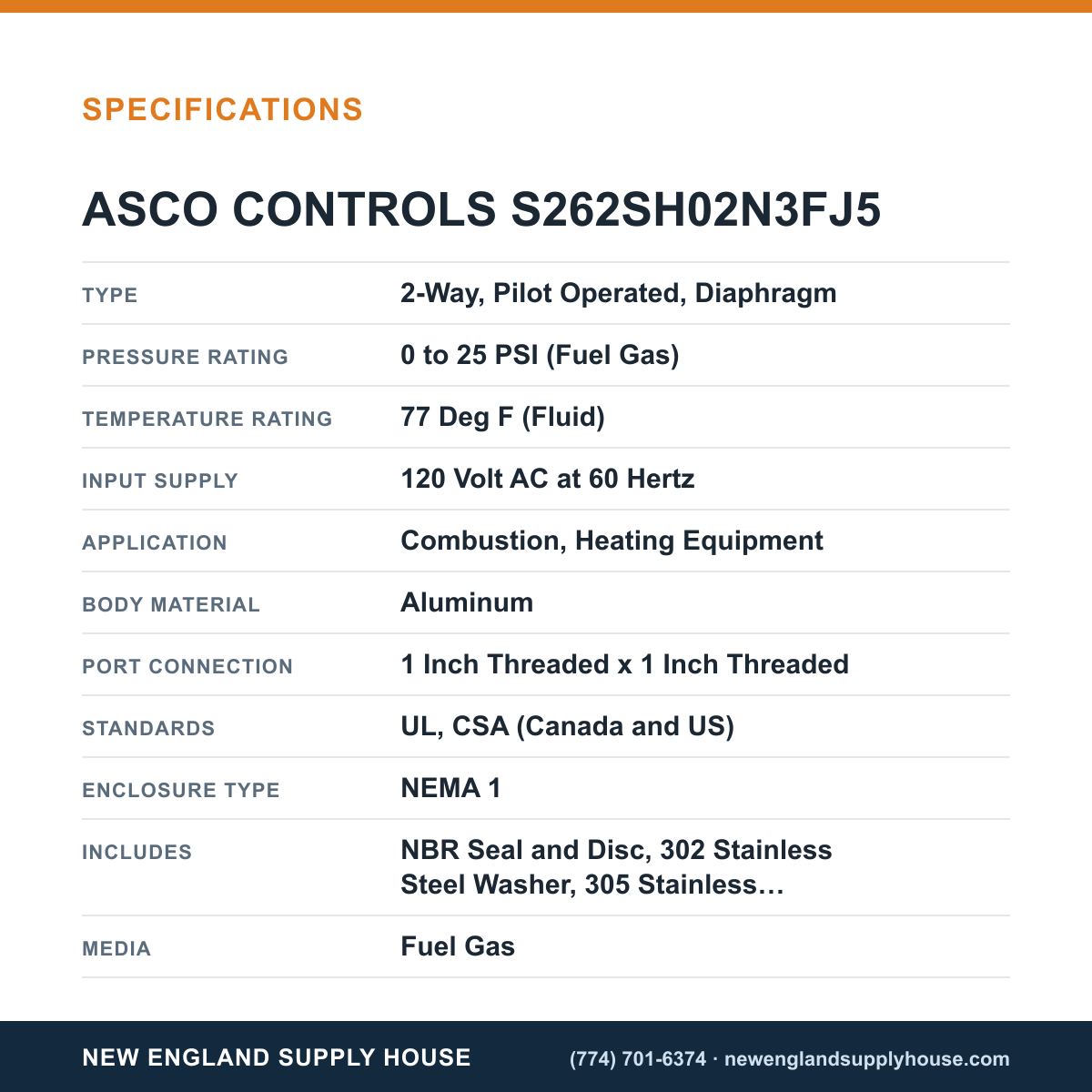

Specifications
| Type | 2-Way, Pilot Operated, Diaphragm |
|---|---|
| Pressure Rating | 0 to 25 PSI (Fuel Gas) |
| Temperature Rating | 77 Deg F (Fluid) |
| Input Supply | 120 Volt AC at 60 Hertz |
| Application | Combustion, Heating Equipment |
| Body Material | Aluminum |
| Port Connection | 1 Inch Threaded x 1 Inch Threaded |
| Standards | UL, CSA (Canada and US) |
| Enclosure Type | NEMA 1 |
| Includes | NBR Seal and Disc, 302 Stainless Steel Washer, 305 Stainless Steel Core Tube, 430F Stainless Steel Core and Plugnut, Core Guide, 302F Stainless Steel Spring, Copper Shading Coil, Cork Body Gasket, Zinc Plated Steel Pipe Plug, 416 Stainless Steel Sleeve and Pin, Orifice |
| Media | Fuel Gas |
| Valve Position | NO |
| Mounting Details | Vertical/Upright/Horizontal Installation |
