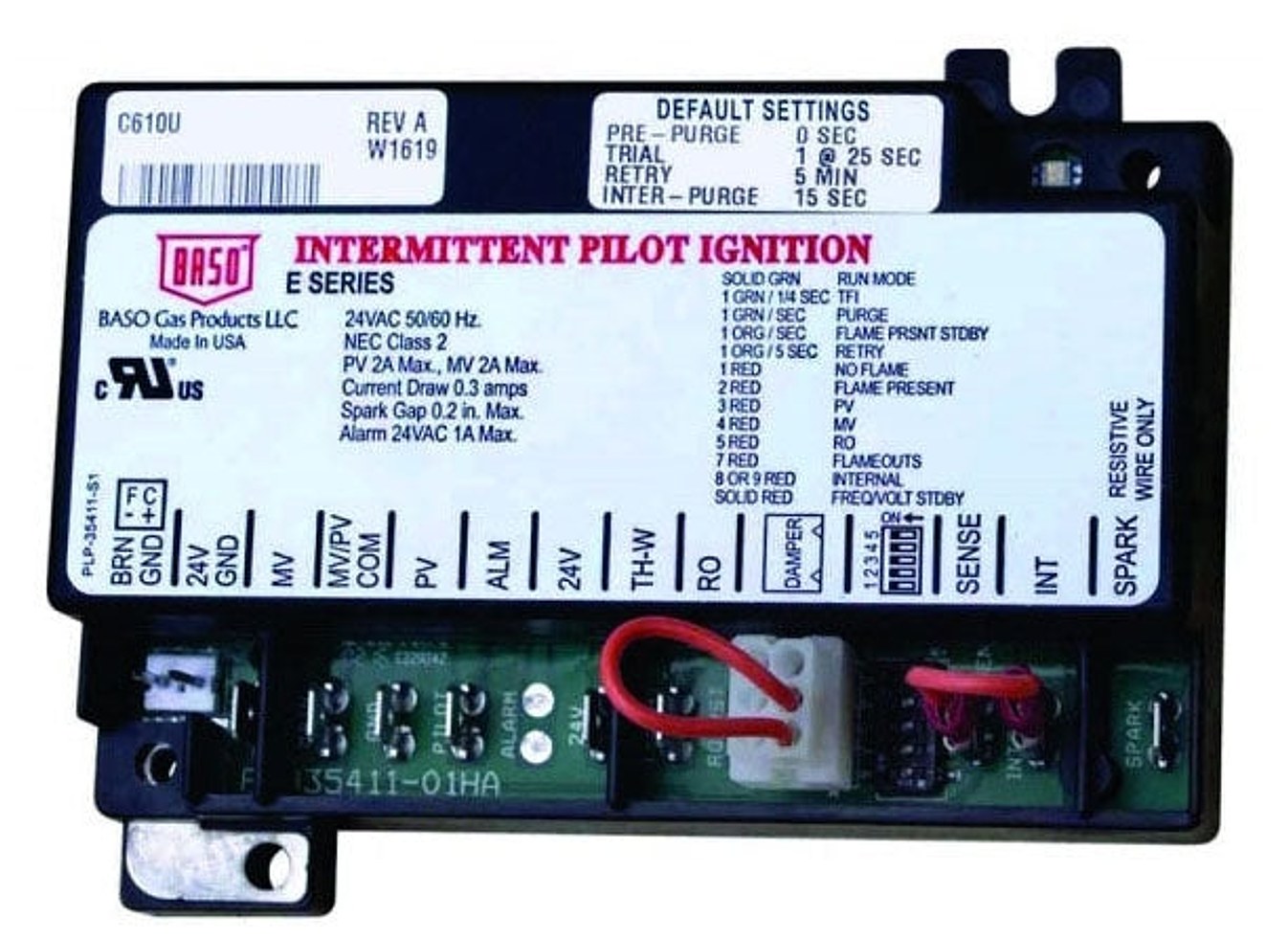

Baso Gas Products C610U-1C Intermittent Pilot Gas Ignition Control

The Baso Gas Products C610U-1C Intermittent Pilot Gas Ignition Control is a universal intermittent pilot solution designed for gas furnaces, boilers, water heaters, and commercial equipment. This control supports Natural and Liquid Propane Gas, with flame sensing that can be Local/Internal or Remote/External, and offers preset ignition sequences (1, 3) and trial times (4, 8, 15, 30, 60, 90 seconds) for flexible system tuning.

With 24 Volt AC operation at 50/60 Hz, a compact footprint (4.90" L x 3.87" W x 1.42" H), and a wide temperature range (-40 to 176°F), this unit is built for reliability in demanding environments. It is UL approved for US and Canada and RoHS compliant.

• Fuel Type: Natural / Liquid Propane Gas
• Power: 24 Volt AC at 50/60 Hz
• Flame Sense: Local/Internal or Remote/External
• Ignition Sequences: Preset 1 and 3
• Ignition Trial Times: Preset 4, 8, 15, 30, 60, 90 seconds
• Prepurge Times: 0, 15, 30, 40 seconds
• Inter Purge Times: 0, 15, 300, 360 seconds
• Retry Times: 0, 5, 60 minutes
• Operating Temperature: -40 to 176°F
• Dimensions: 4.90" L x 3.87" W x 1.42" H
• Applications: Gas furnace, Boiler, Water heater, Commercial
• Approvals: UL (Canada and US); RoHS Compliant
