Belimo AFB24 Damper Actuator

Belimo AFB24 Damper Actuator

$413.59 USD
$413.59 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 3 left

190178

View full details

Belimo AFB24 Damper Actuator is a reliable ON/OFF, direct-coupled damper actuator for HVAC systems. With spring-return operation and universal 24 V AC/DC compatibility, it delivers precise, energy-efficient air control across 50/60 Hz networks.

Designed for challenging environments, this actuator features a robust zinc-coated metal body with a plastic casing and a NEMA 2/IP54 enclosure, ensuring protection from dust and moisture while maintaining dependable performance in a range of temperatures.

  • Type: ON/OFF, Direct Coupled; Spring Return
  • Voltage / Frequency: 24 V AC/DC; 50/60 Hz
  • Power: 5 W Running, 2.5 W Holding
  • Torque / Angle: 180 in-lb, 95° rotation
  • Enclosure & Body: NEMA 2, IP54; zinc-coated metal with plastic casing
  • Shaft & Size: 1/2" to 1.05" shaft; 3.15" W × 3.42" D × 9.69" H
  • Connection: 3 ft 18 AWG appliance cable with 1/2" conduit connector
  • Operating Temp: -22 to 122 °F
  • Application: HVAC systems
  • Approvals: UL (Canada/US), UL 60730, CE, CAN/CSA E60730, ISO 9001
  • Includes: 5 mm hex crank

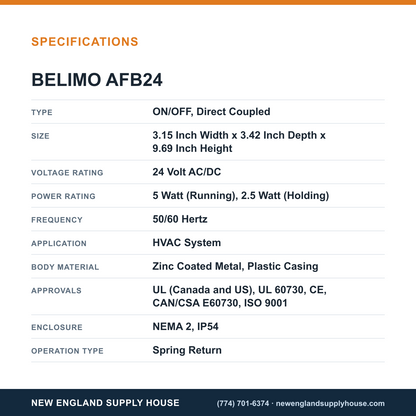

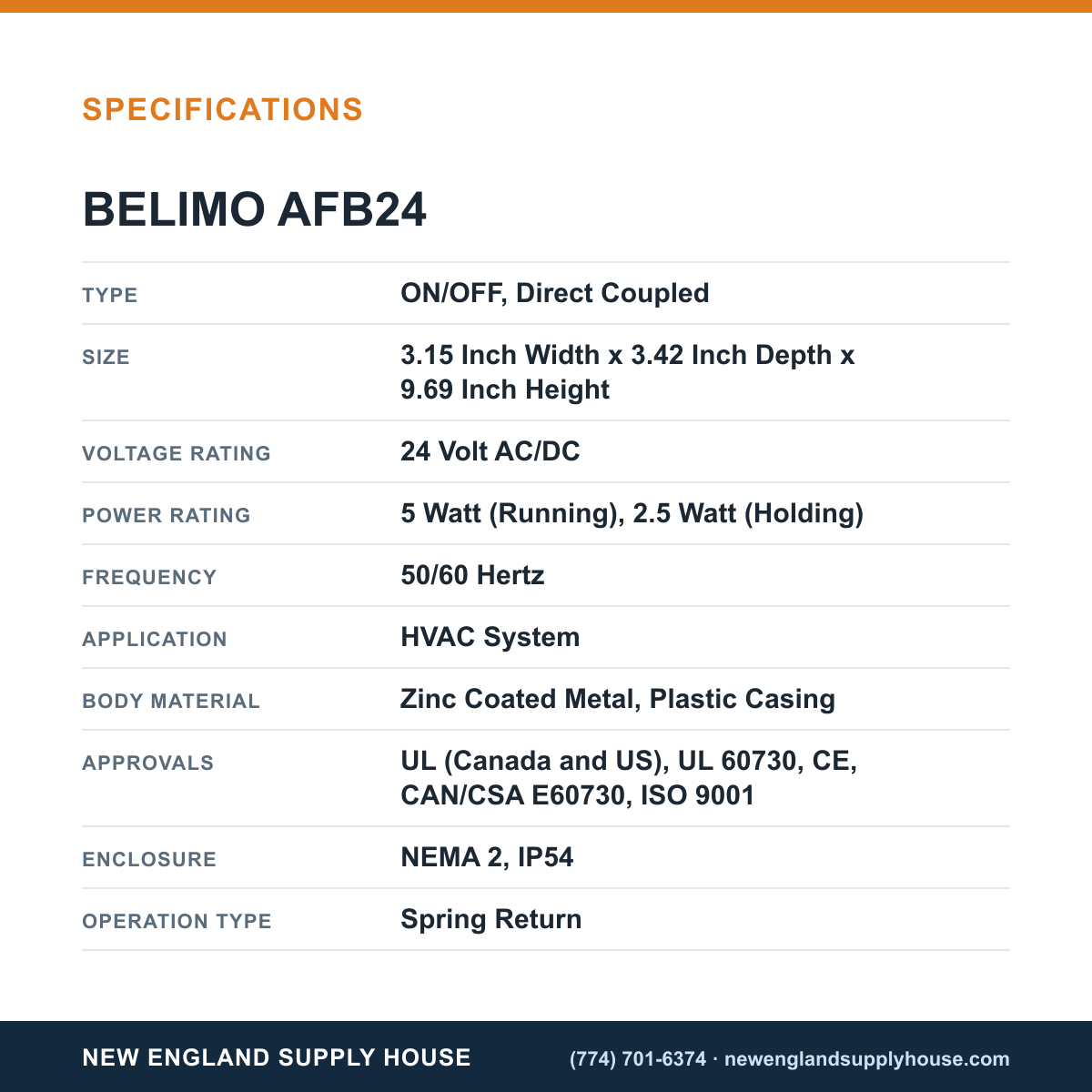

Specifications

TypeON/OFF, Direct Coupled
Size3.15 Inch Width x 3.42 Inch Depth x 9.69 Inch Height
Voltage Rating24 Volt AC/DC
Power Rating5 Watt (Running), 2.5 Watt (Holding)
Frequency50/60 Hertz
ApplicationHVAC System
Body MaterialZinc Coated Metal, Plastic Casing
ApprovalsUL (Canada and US), UL 60730, CE, CAN/CSA E60730, ISO 9001
EnclosureNEMA 2, IP54
Operation TypeSpring Return
Angle of Rotation95 Degree
Torque180 Inch-Pound
Shaft Diameter1/2 to 1.05 Inch
Operating Temperature-22 to 122 Deg F
Supply Connection3 Foot 18 AWG Appliance Cable with 1/2 Inch Conduit Connector
Max AC Voltage24 Volt
Max DC Voltage24 Volt
