Belimo AFB24-MFT-S Damper Actuator
Belimo AFB24-MFT-S Damper Actuator
Regular price
$645.70 USD
Regular price
Sale price
$645.70 USD
Shipping calculated at checkout.
Low stock: 3 left
Quantity
Couldn't load pickup availability
SKU:62724
View full details
![Belimo AFB24-MFT-S Damper Actuator — New England Supply House spec card [NESH-SPEC-CARD-V2]](http://newenglandsupplyhouse.com/cdn/shop/files/spec-9032664482014.png?v=1782840195&width=1445)
The Belimo AFB24-MFT-S Damper Actuator delivers precise modulation for HVAC systems with reliable spring-return operation. This direct-coupled, modulating actuator with multi-function technology provides accurate 2-10 VDC control signals and robust performance in demanding environments.
Designed for HVAC system control, this damper actuator excels as a versatile HVAC actuator option, offering dependable operation in both commercial and industrial settings. Its compact form hides a powerful combination of precision, durability, and safety approvals that professionals demand.
- Direct-Coupled, Modulating, Multi-Function Technology
- Spring Return Operation
- 24 VAC/DC Power, 50/60 Hz (Max 24 V)
- Torque 180 in-lb; Rotation 95°
- Output Signal 2-10 VDC, 0.5 mA
- Enclosure: NEMA 2, IP54
- Size: 3.15"W x 3.42"D x 9.69"H; Shaft 1/2"–1.05"
- Supply: 3 ft 18 AWG appliance cable with 1/2" conduit connector
- Body: Zinc-coated metal with plastic casing; Operating temp -22 to 122 °F
- Approvals: UL (US/Canada), UL 60730, CE, CAN/CSA E60730, ISO 9001
- Includes 5 mm hex crank and two SPDT auxiliary switches

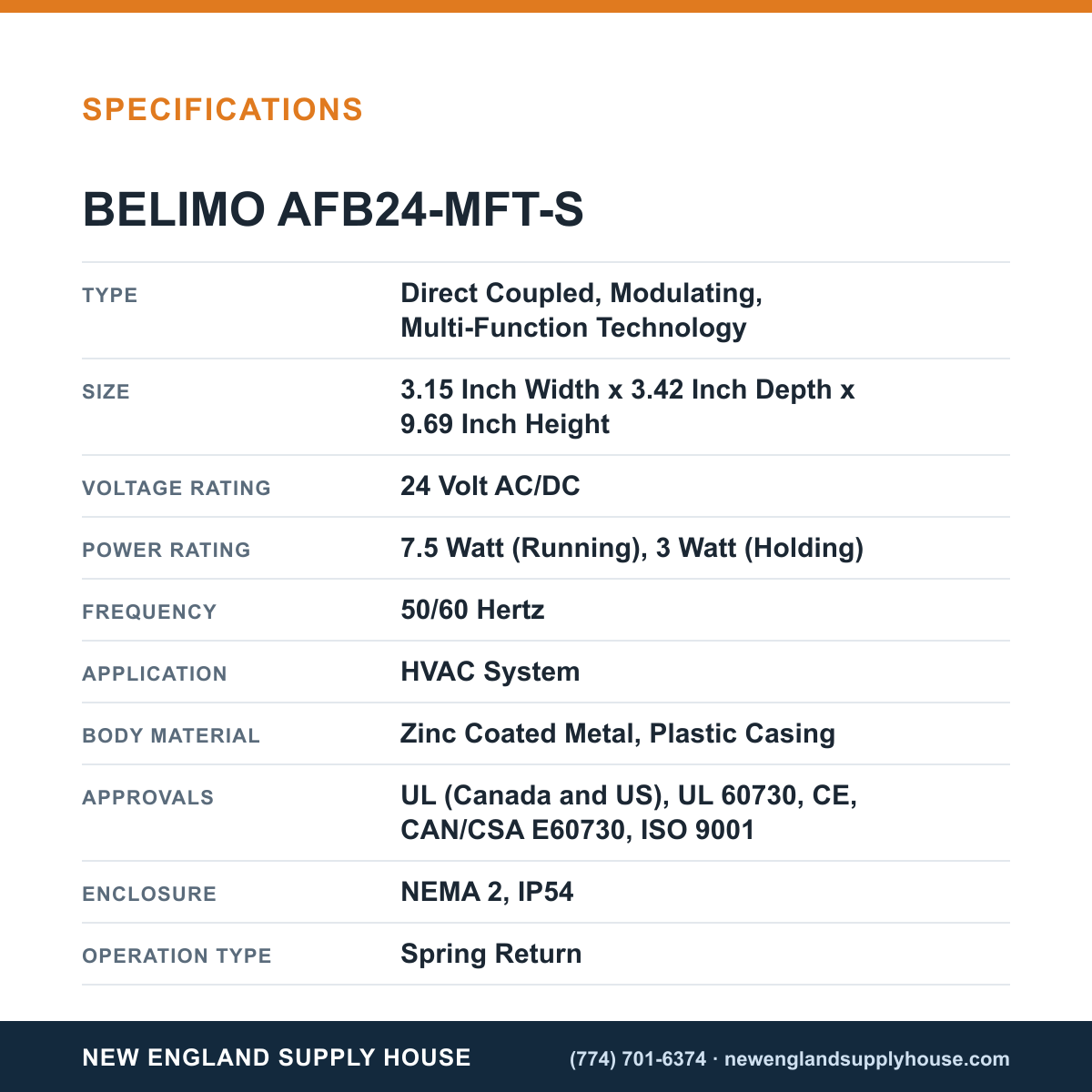

Specifications
| Type | Direct Coupled, Modulating, Multi-Function Technology |
|---|---|
| Size | 3.15 Inch Width x 3.42 Inch Depth x 9.69 Inch Height |
| Voltage Rating | 24 Volt AC/DC |
| Power Rating | 7.5 Watt (Running), 3 Watt (Holding) |
| Frequency | 50/60 Hertz |
| Application | HVAC System |
| Body Material | Zinc Coated Metal, Plastic Casing |
| Approvals | UL (Canada and US), UL 60730, CE, CAN/CSA E60730, ISO 9001 |
| Enclosure | NEMA 2, IP54 |
| Operation Type | Spring Return |
| Angle of Rotation | 95 Degree |
| Torque | 180 Inch-Pound |
| Shaft Diameter | 1/2 to 1.05 Inch |
| Operating Temperature | -22 to 122 Deg F |
| Supply Connection | 3 Foot 18 AWG Appliance Cable with 1/2 Inch Conduit Connector |
| Output Signal | 2 to 10 Volt DC, 0.5 Milliamp |
| Max AC Voltage | 24 Volt |
| Max DC Voltage | 24 Volt |
