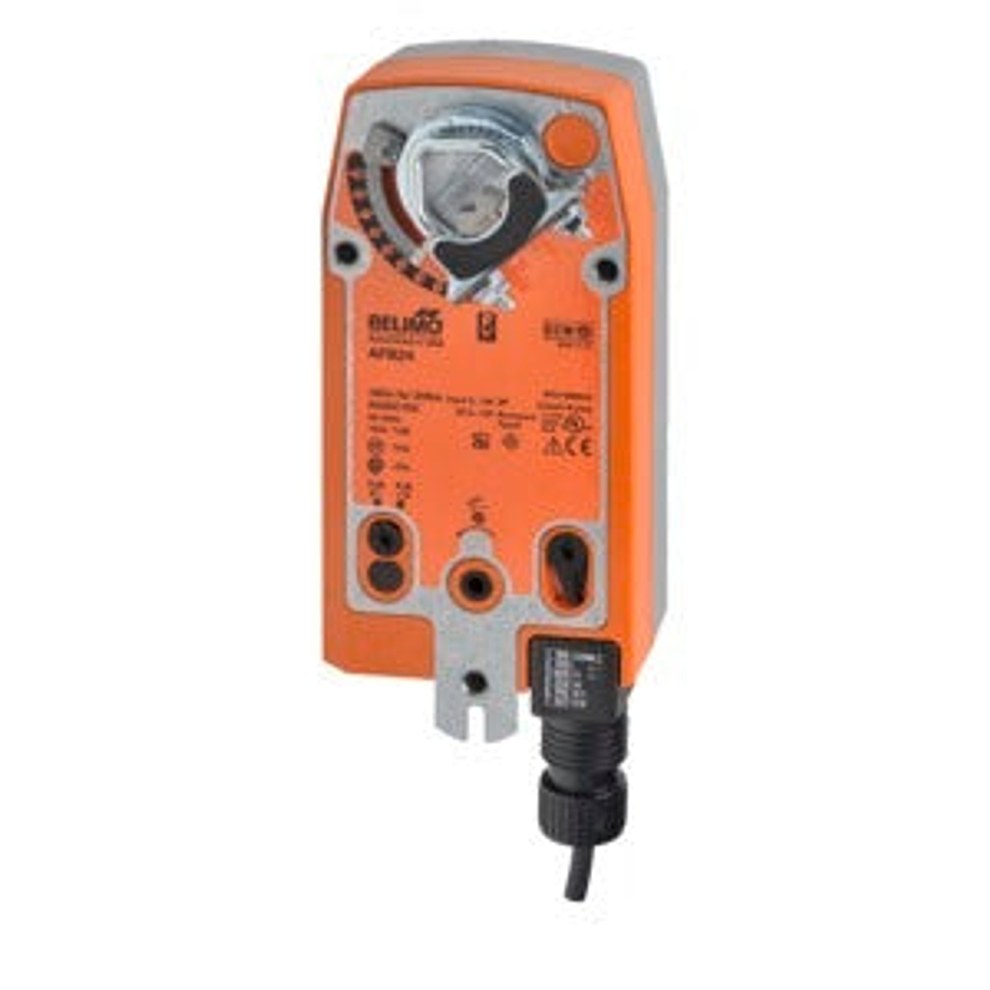

Belimo AFB24-MFT95 Damper Actuator

The Belimo AFB24-MFT95 Damper Actuator is a high-precision, direct-coupled, modulating damper actuator designed for reliable HVAC system control. With spring-return operation, it provides fail-safe positioning in 24V AC/DC systems, offering smooth, accurate damper modulation across 95 degrees of travel. Rated for 50/60 Hz, it delivers 7.5 W running and 3 W holding, with a robust 180 in-lb torque to handle real-world damper loads.

The 2-10 VDC output signal ensures compatibility with modern controllers, while a rugged NEMA 2/IP54 enclosure, zinc-coated metal body, and plastic casing stand up to challenging environments.

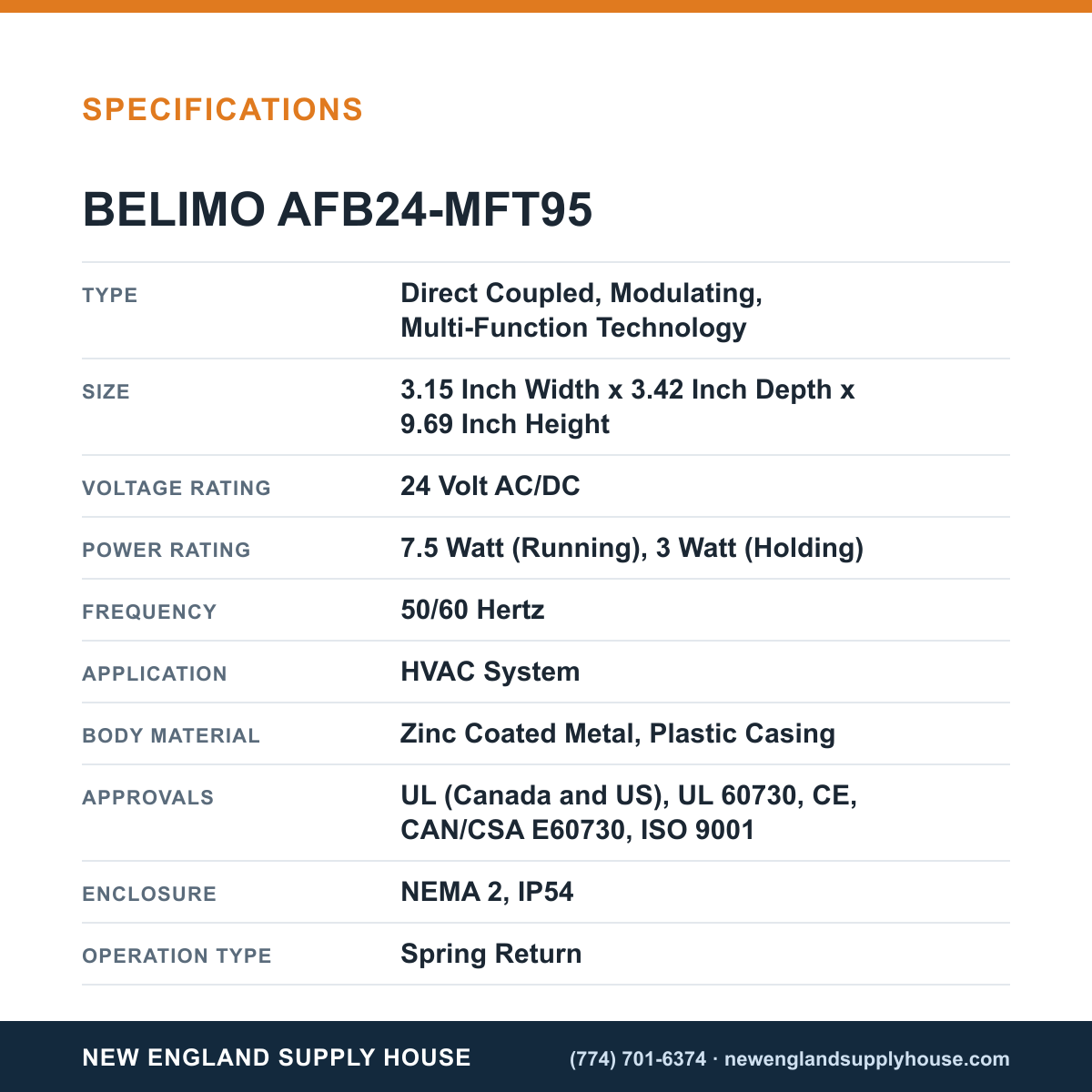

• Direct-coupled, modulating damper actuator for HVAC systems
• Spring-return operation for fail-safe positioning
• 24V AC/DC supply, 50/60 Hz, 7.5 W running / 3 W holding
• 95° travel, 180 in-lb torque, 2–10 VDC control signal
• Enclosure: NEMA 2, IP54; zinc-coated metal with plastic casing
• Shaft compatible: 1/2" to 1.05" diameter; 3 ft 18 AWG plenum cable with 1/2" conduit; includes 5 mm hex crank
• Approvals and quality: UL (US/Canada), UL 60730, CE, CAN/CSA E60730, ISO 9001
