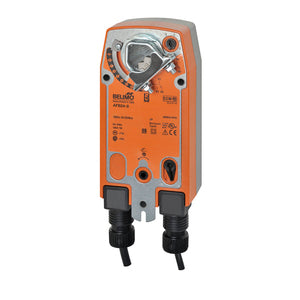

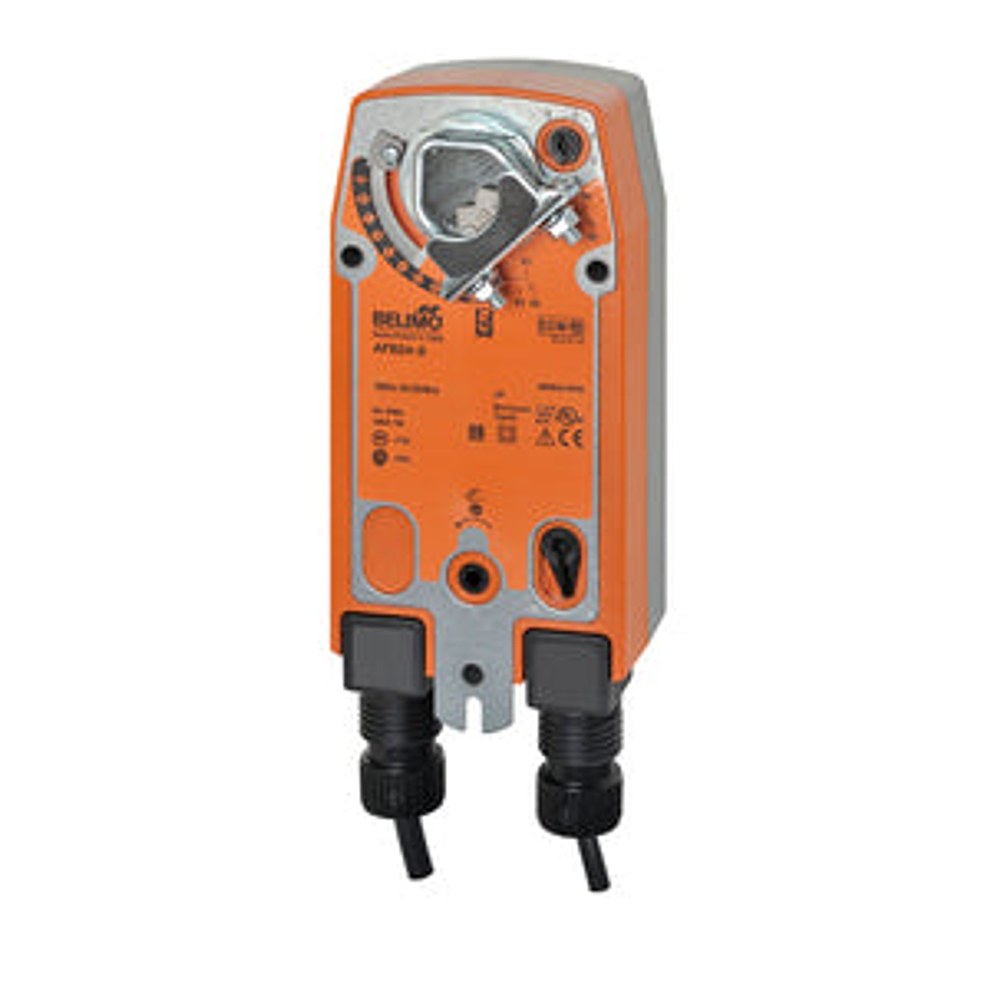

Belimo AFB24-S Damper Actuator

Belimo AFB24-S Damper Actuator

$492.48 USD
$492.48 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 3 left

235360

View full details

The Belimo AFB24-S Damper Actuator delivers precise HVAC damper control with 24 V operation and a dependable spring-return design. Built for reliability, this 180 in-lb torque, on/off actuator includes an auxiliary switch for signaling and is compatible with AF24-S and SF24A-S2 systems, simplifying retrofit installations and new builds.

Engineered for rugged commercial environments, the AFB24-S ensures smooth, quiet operation and easy integration with building automation systems, enabling accurate damper positioning and energy-efficient HVAC control.

  • Voltage: 24 V operation for reliable actuation
  • Torque: 180 in-lb for mid- to large-damper applications
  • Spring-Return: Spring-back design for fail-safe positioning
  • Control: On/Off operation with built-in auxiliary switch for status feedback
  • Compatibility: Works with AF24-S family and SF24A-S2 variants

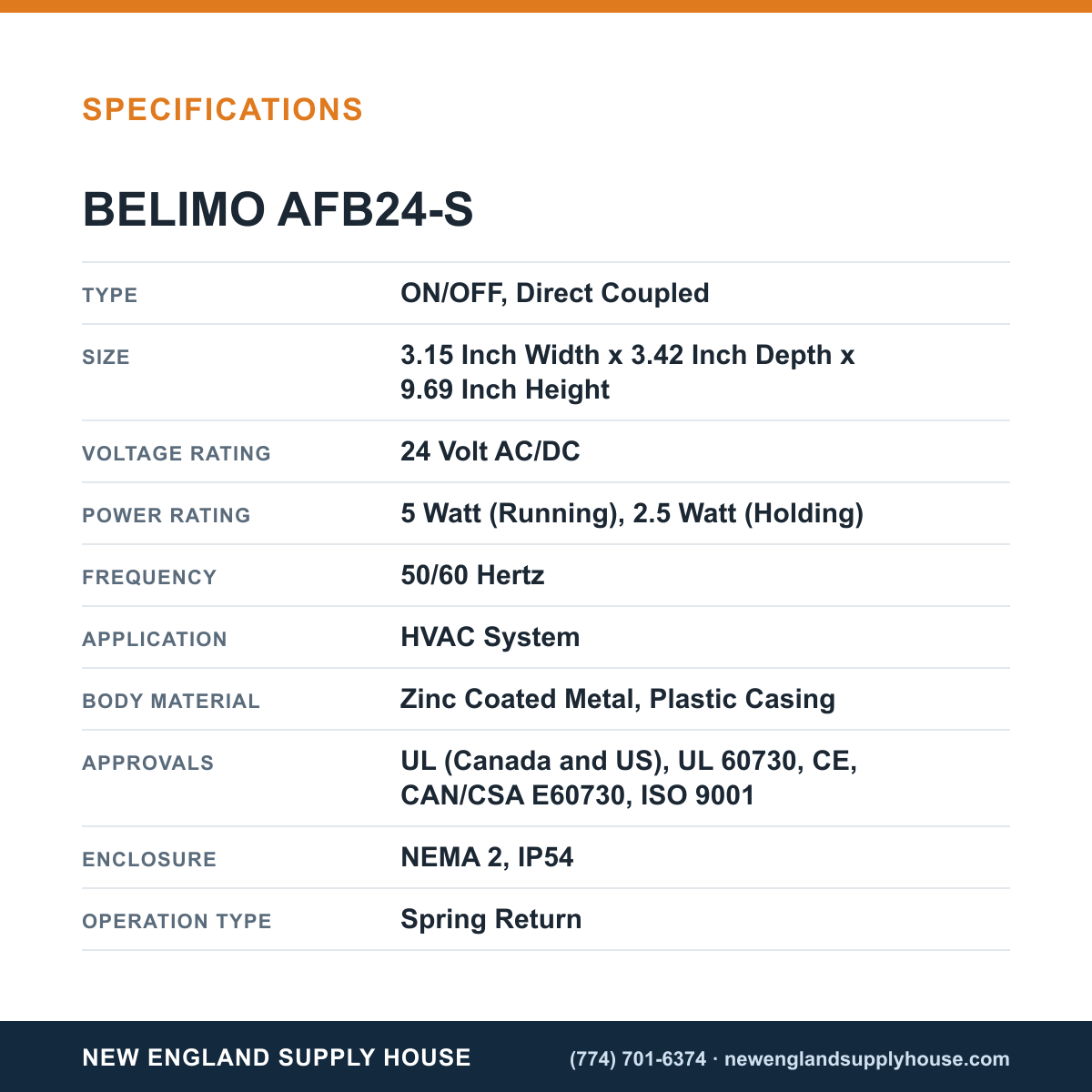

Specifications

TypeON/OFF, Direct Coupled
Size3.15 Inch Width x 3.42 Inch Depth x 9.69 Inch Height
Voltage Rating24 Volt AC/DC
Power Rating5 Watt (Running), 2.5 Watt (Holding)
Frequency50/60 Hertz
ApplicationHVAC System
Body MaterialZinc Coated Metal, Plastic Casing
ApprovalsUL (Canada and US), UL 60730, CE, CAN/CSA E60730, ISO 9001
EnclosureNEMA 2, IP54
Operation TypeSpring Return
Angle of Rotation95 Degree
Torque180 Inch-Pound
Shaft Diameter1/2 to 1.05 Inch
Operating Temperature-22 to 122 Deg F
Supply Connection3 Foot 18 AWG Appliance Cable with 1/2 Inch Conduit Connector
Max AC Voltage24 Volt
Max DC Voltage24 Volt
